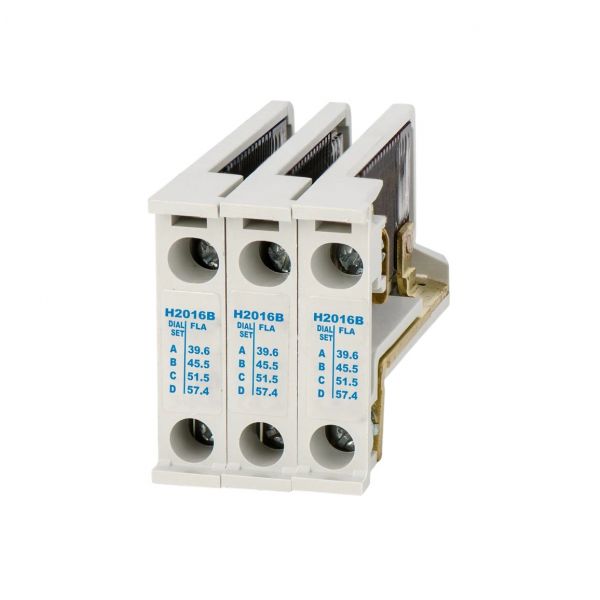

main product photo

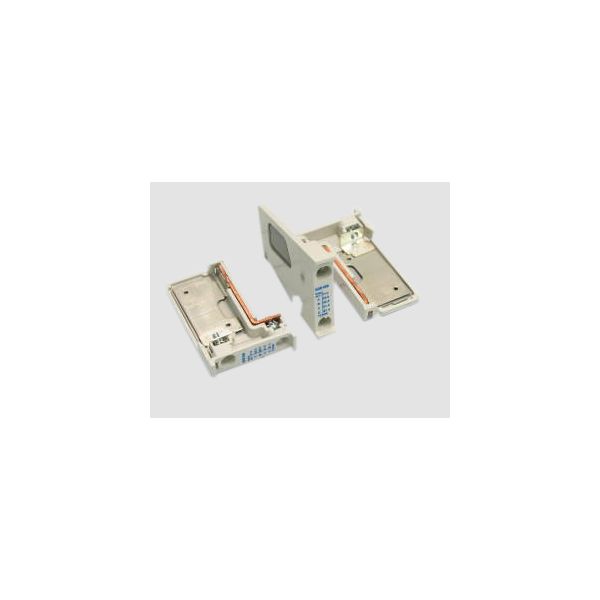

Cutler Hammer-Eaton H2016B-3 Class 20 Heater Standard Trip 39.6-57.4 Amp 3-Set

Be the first to review this product
Special Price $103.16 Regular Price $118.63
In stock
SKU
H2016B-3
The Cutler Hammer Eaton H2016B-3 Heater Pack that serves an essential part of HVAC systems and is suited to commercial and industrial use. Functioning at a current of 39.6A-57.4A, this heater pack provides steady heat output to different heating systems and helps maintain their efficiency during colder periods. It is especially advantageous for packaged HVAC systems units that contain heating and cooling mechanisms in one single appliance, which would be suitable for smaller areas. The enhances energy efficiency by offering accurate control of temperature, hence lowering the operational expenses. Also, it has a reliable and low maintenance structure and viable to work incessantly in harsh environments to produce energy.
Add to Wish List
Heating & Furnace Parts, Heaters,
Manufacturer:
https://www.partshnc.com/media/catalog/product/h/2/h2016b-3.jpg

Specifications

  • Type: Heater Pack
  • Current Range: 39.6A-57.4A
  • Quantity: 3
Manufacturer Name: Cutler Hammer-Eaton
Product Number: H2016B-3
OEM Part Number: H2016B-3
Product Description: 39.6/57.4 Heater Pack;Set Of 3
Weight:0.16lbs/72.57g

Choose the best HVAC equipment parts and supplies from PartsHNC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Cutler Hammer-Eaton H2016B-3 Class 20 Heater Standard Trip 39.6-57.4 Amp 3-Set
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Cutler Hammer-Eaton H2016B-3 Standard Heater Trip/Coil?

Regularly inspect the heater trip/coil for signs of overheating, corrosion, discoloration, or physical damage. Verify that electrical connections remain secure and free from contamination. Keep the surrounding motor starter enclosure clean and dry to support reliable overload protection. Always disconnect power before inspection or service to reduce the risk of electrical shock.

What are common issues with the Cutler Hammer-Eaton H2016B-3 Standard Heater Trip/Coil?

  • Loose electrical connections affecting performance.
  • Failure to trip during overload conditions.
  • Overheating caused by incorrect heater sizing.
  • Coil damage from excessive current or voltage fluctuations.
  • Inconsistent overload protection response.

Installation Steps

Step 1: Disconnect power to the motor starter and verify all circuits are de-energized.

Step 2: Open the starter enclosure and locate the overload relay.

Step 3: Remove the existing heater elements from the relay assembly.

Step 4: Install the heater elements into the designated positions.

Step 5: Ensure each element is fully seated and properly aligned.

Step 6: Reassemble the enclosure and restore power.

Step 7: Test the motor starter to verify proper overload protection and operation.
