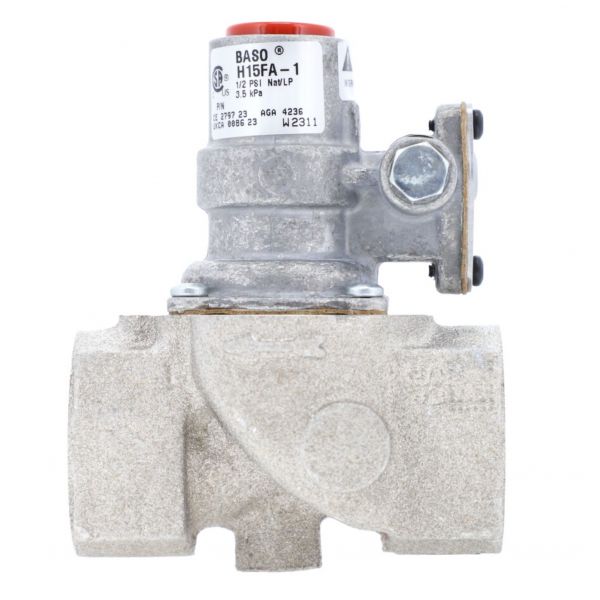

The BASO Gas Products H15FA-1 Autopilot Safety Valve is an essential addition that is meant to improve safety in Gas-fired HVAC systems. This 1” valve has a BTU of 740,000 and is an automatic shut-off valve that shuts down when there is a failure or improper operation to avoid gas emissions and risks. Serving as an autopilot safety mechanism, it checks the flow of the gas and makes certain that the system is not overloaded. It shuts immediately if it senses any abnormalities like high pressure or flame out and thus protects the equipment and users. This valve is used in different HVAC equipment such as boilers, furnaces, and water heaters.
The BASO Gas Products - H15FA-1 is a 1" NPT automatic shut-off pilot gas valve. It is designed to be used with natural and LP gas up to 0.5 psi and features a 1/8"-27 NPT pilot tap over inlet, no pressure tap, and an internal pilot gas flow without rotor "B" valve.It is a typical replacement component for a number of gas-powered equipment, such as water heaters, boilers, and furnaces.It features an internal pilot gas flow without a rotor "B" valve and a 1/8"-27 NPT pilot tap over the inlet.
Key Features:
Function:
Safe lighting: It prevents unintentional gas leakage to the main burner prior to ignition by limiting gas flow to the pilot burner only during lighting.
Complete shut-off: In case the pilot flame extinguishes, the valve automatically shuts off gas flow to both the pilot and main burner, preventing gas leaks and potential hazards.
Reliable operation: Proven design and robust construction ensure reliable performance and long lifespan.
Compact design: Owing to its small size, it can be used in areas with restricted space.
Specifications:
Valve size: National Pipe Thread, or 1" NPT, is the standard.
Gas type: Compatible with natural gas and LP (liquid propane) gas.
Pressure rating: Up to 0.5 psi (35mbar).
Material: Durable construction with high-quality stainless steel or cast iron components.
Features:
Internal pilot gas flow (no rotor "B" valve): Eliminates the need for an additional external valve, simplifying installation.
Large reset button: Simplifies manual reset after a flame outage.
Broad application range: Ideal for industrial ovens, dishwashing machines, degreasing equipment, central heating systems, room heaters, wall heaters, unit heaters, and crop dryers.
Benefits:
Enhances safety: Prevents gas leaks and potential explosions by automatically shutting off gas flow in case of pilot flame failure.
Protects equipment: Guards against damage caused by unignited gas buildup.
Improves efficiency: Safe lighting eliminates wasted gas by ensuring gas flow only during pilot and main burner ignition.
Provides peace of mind: Offers reliable operation and safety for your gas-fired appliances.
Important notes:
Installing or replacing a gas valve requires specialized knowledge and skills. Always consult a qualified gas fitter or technician for safe and proper installation.
Never attempt to bypass or tamper with a gas valve. Doing so can compromise safety and lead to serious risks.
Double-check compatibility with your specific appliance and gas system before purchasing.
Additional information:
Some models of the H15FA-1 might offer additional features like different valve sizes, pressure ratings, or compatibility with specific burner configurations. Check the product details carefully for specific features and compatibility.
BASO Gas Products offers a variety of automatic shut-off pilot gas valves in their H15 series. To select the right model, take into account your needs and the specifications of your appliances.
Signs of a Faulty BASO Gas Products H15FA-1 pilot gas valve:
A faulty BASO Gas Products - H15FA-1 automatic shut-off pilot gas valve can manifest in several ways, impacting performance and potentially posing safety risks.
Safety Concerns:
Gas odor: This is a serious indicator of a potential leak. If you smell gas near your appliance, immediately turn it off and evacuate the area. Open windows and doors to ventilate, then contact a qualified gas technician without delay.
Appliance not igniting: If the appliance doesn't ignite or struggles to stay lit, it could be due to the valve failing to open properly and allow gas flow to the pilot burner.
Performance Issues:
Incomplete combustion: If the appliance burns with excessive yellow flames or soot, it might indicate insufficient gas reaching the main burner due to a valve malfunction.
Frequent cycling: The appliance might turn on and off repeatedly. This could be due to the valve failing to sense the pilot flame correctly and shutting off gas flow unnecessarily.
Pilot flame instability: Observe the pilot flame. If it appears weak, flickers excessively, or extinguishes frequently, it could be related to the valve's ability to regulate gas flow to the pilot burner.
Other:
Increased energy consumption: Frequent cycling or incomplete combustion can lead to higher gas usage and energy bills.
Error codes: Some appliances might display error codes related to pilot flame or gas valve issues. Consult the appliance manual for specific code meanings and troubleshooting steps.
Remember:
Safety is paramount. If you suspect any gas leaks or performance issues related to the automatic shut-off pilot gas valve, immediately stop using the appliance and contact a qualified gastechnician. Do not attempt to diagnose or repair the valve yourself.
Regular maintenance: Periodic inspections and servicing by a qualified professional can help prevent issues with the valve and ensure the safe operation of your gas-fired appliance.
