Magnatrol Solenoid Valves G131S44SC-ACTS 1 Inch Npt N/C 120V 0/180# Steam

Special Price $693.94 Regular Price $770.27
In stock
SKU
G131S44SC-ACTS

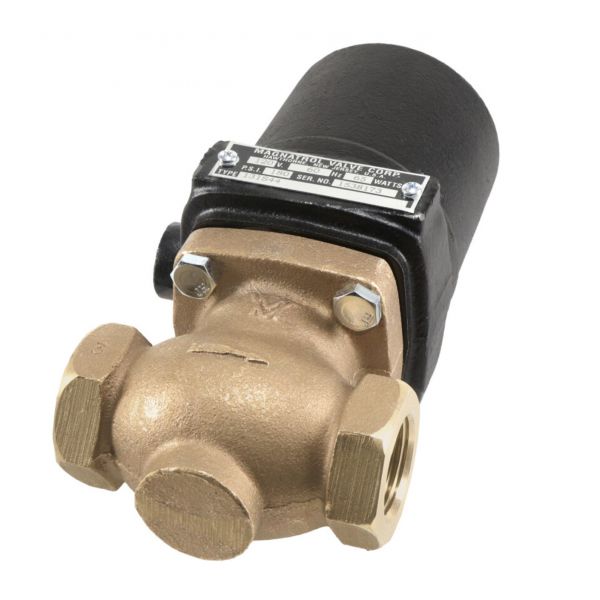

The Magnatrol Solenoid Valve G131S44SC-ACTS is a 1-inch normally-closed valve used to control steam flow in a variety of heating, ventilation, and air conditioning systems. It has an easy-to-install National Pipe Thread connector and runs on a 120-volt power supply. When the valve is not powered, it remains closed in its N/C state, which stops the passage of steam. The valve opens to let steam through when it is powered. This makes it perfect for devices like autoclaves, sterilizers, humidifiers, and steam cleaning equipment that need exact control over the flow of steam. Because it is made of high-quality materials and can tolerate high temperatures and pressures, it is appropriate for tough industrial situations.

https://www.partshnc.com/media/catalog/product/g/1/g131s44sc-acts.jpg

PRODUCT OVERVIEW:
High-temperature steam solenoid valves regulate steam delivery across industrial piping loops and process heating equipment. The Magnatrol Solenoid Valves G131S44SC-ACTS 1 Inch Npt N/C 120V 0/180# Steam is an OEM electrically operated valve designed for automated steam flow control. Operating as a normally closed (N/C) valve across 1-inch NPT threaded connection ports, this unit requires a 120V electrical supply to open against line pressures ranging from 0 to 180 PSI. By opening during active heat calls and sealing tightly when unpowered, the assembly maintains positive steam isolation and supports safe thermal processing.

ELECTROMAGNETIC ORIFICE SHIFT AND ACTUATION:
Electromagnetic force converts 120V electrical control input into mechanical movement to modulate internal steam passage. When system controls supply 120V power, the energized solenoid coil generates a magnetic field that lifts the internal plunger assembly off its seat, opening the 1-inch bore to permit steam passage up to 180 PSI. Removing electrical power collapses the magnetic field, allowing spring tension and line pressure to snap the internal disk back against the seat, instantly isolating the downstream steam branch.

STEAM LINE SECTION MANAGEMENT:
The solenoid valve operates inline as an automated fluid gate along primary steam mains or heat exchanger feed lines. Positioned upstream of process equipment, the heavy-duty valve body maintains complete pressure boundary containment under continuous thermal stress. Automatic operation prevents steam migration into idle processing branches, eliminates condensate accumulation in inactive lines, and ensures synchronized thermal cycling in response to process controllers.

REPLACEMENT GUIDELINES:
Component replacement is necessary when the solenoid coil burns out, high-temperature seat seals erode, or body packing leaks steam. Malfunctioning steam valves disrupt plant operations by causing equipment heating failure, continuous steam blow-by during idle states, or electrical fuse trips. Qualified technician assistance is recommended for steam line depressurization, thermal insulation removal, and system cooldown prior to service. Before purchasing, verify the part number and all relevant specifications against the original equipment documentation to ensure the replacement matches the system requirements.

COMMON FAILURE SYMPTOMS:

  • Steam supply remains completely blocked during an active demand cycle despite verified 120V control power.
  • Continuous steam leakage or temperature buildup downstream while the valve is in an unpowered resting state.
  • Visible steam weeping or moisture accumulation around 1-inch NPT threaded body joints or bonnet seals.
  • Audible electrical humming or buzzing from the 120V coil housing without physical valve seat opening.
  • Burner or steam boiler controller displays valve proving fault codes or trips circuit protection fuses.

EQUIPMENT COMPATIBILITY:
The Magnatrol Solenoid Valves G131S44SC-ACTS is intended for compatible industrial steam systems requiring a 1-inch NPT 120V normally closed solenoid valve rated for 0 to 180 PSI steam service. Confirm the part number (G131S44SC-ACTS), port size (1 Inch NPT), pressure range (0–180 PSI), and media rating (Steam) against the original equipment documentation before selecting a replacement. For exact compatible equipment models, refer to the manufacturer's documentation. Do not assume compatibility based on the manufacturer name alone.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Magnatrol Solenoid Valves
Part Number: G131S44SC-ACTS
Component Type: Solenoid Valve
Physical Specifications:
Connection Size: 1 Inch
Connection Style: NPT
Operating Conditions:
Valve Configuration: Normally Closed (N/C)
Pressure Rating: 0 to 180 PSI (0/180#)
Media Application: Steam

Write Your Own Review
You're reviewing:Magnatrol Solenoid Valves G131S44SC-ACTS 1 Inch Npt N/C 120V 0/180# Steam
Your Rating
Customer Questions
What maintenance is required for the Magnatrol Solenoid Valves G131S44SC-ACTS Solenoid Valve/Steam?

Inspect the valve body, coil, and electrical terminals regularly for overheating, corrosion, or loose connections. Ensure the valve operates smoothly through full open and close cycles without sticking. Check inlet strainers and piping for debris that could restrict flow or damage internal components.

What are common issues with the Magnatrol Solenoid Valves G131S44SC-ACTS Solenoid Valve/Steam?

  • Coil burnout due to voltage fluctuations.
  • Valve sticking caused by scale or sediment buildup.
  • Steam leakage from worn seals or seat damage.
  • Pressure rating mismatch leading to improper operation.
  • Electrical connection failure causing intermittent actuation.

What is the primary function of a normally closed (N/C) steam solenoid valve?

The valve blocks steam flow through its internal passage while unpowered and opens to permit steam travel only when energized by a 120V control signal.

Why is the 0–180 PSI pressure rating critical for this steam valve?

The 0–180 PSI rating ensures the valve mechanism can unseat and seal reliably across full pressure ranges without binding or leaking under high-temperature steam loads.

Which piping parameters must be verified prior to ordering the Magnatrol G131S44SC-ACTS valve?

Technicians must verify the 1-inch NPT female thread size, 120V electrical supply, 0–180 PSI pressure range, steam service rating, and part number G131S44SC-ACTS in equipment drawings.

What failure signs indicate that a steam solenoid valve requires replacement?

Key indicators include a valve that fails to open under 120V power, continuous steam blow-by when de-energized, external body steam leaks, or a shorted coil winding.

What safety precautions should be completed before replacing an industrial steam valve?

Isolate main steam supply valves, lock out 120V control power, allow piping to cool down completely, and vent trapped pressure before unthreading the valve body.

Installation Steps

Step 1: Shut off steam supply and fully depressurize the line before starting.

Step 2: Confirm coil rating and system compatibility with electrical supply.

Step 3: Install valve in correct flow direction on piping using thread sealant.

Step 4: Tighten all connections securely, avoiding over-torque damage.

Step 5: Wire coil according to diagram with power isolated for safety.

Step 6: Restore pressure slowly and test for leaks and proper valve operation.
