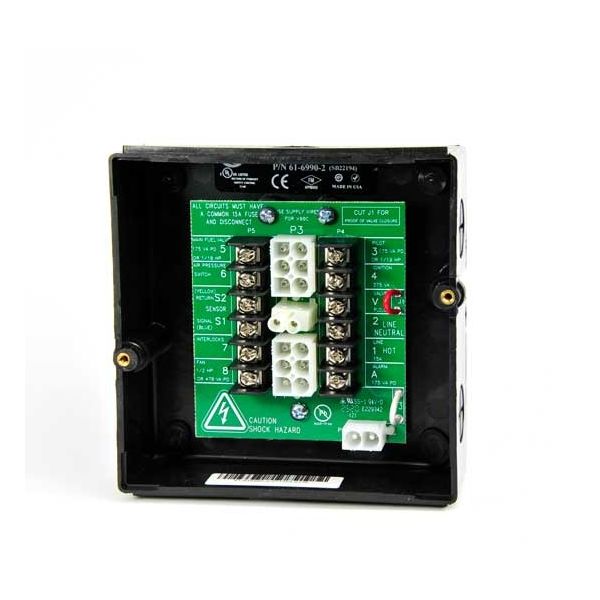

Fireye 61-6990-2 Internal Terminal Base Panel SB22194

Be the first to review this product
Special Price $126.94 Regular Price $145.99
In stock
SKU
61-6990-2
The FIREYE 61-6990-2 (SB22194) Internal Terminal Base Panel serves as a vital connection point for wiring inside FIREYE flame safeguard controls which find their primary use in industrial and commercial combustion systems such as boilers and furnaces for HVAC systems. The terminal base enables dependable signal transmission between control systems and sensors and actuators. The terminal base provides three main advantages which are better wiring organization improved system reliability and easier maintenance capabilities. The terminal base with the Panel contains a particular configuration or feature that affects the internal circuitry.
Add to Wish List
Manufacturer:
https://www.partshnc.com/media/catalog/product/6/1/61-6990-2.jpg
Write Your Own Review
You're reviewing:Fireye 61-6990-2 Internal Terminal Base Panel SB22194
Your Rating
Product Questions (1)
Customer Questions
What maintenance is required for the Fireye 61-6990-2 Internal Terminal Base Panel?

Regularly inspect the terminal base panel for dust, loose wires, or signs of corrosion. Ensure all connections are tight and clean contact points. Power down the system before servicing to prevent electrical hazards.

Installation Steps

Step 1: Turn off all power to the equipment before starting.

Step 2: Remove the existing panel, if replacing, and verify compatibility.

Step 3: Mount the terminal base securely in the designated panel location.

Step 4: Connect all wires to the corresponding terminals following the wiring diagram.

Step 5: Ensure tight, secure connections and no exposed wires.

Step 6: Restore power and test the system for proper function.
