Reznor 96288 1/15 HP ODP Fan Motor 115V 1-Phase 60Hz

Special Price $234.24 Regular Price $260.01
In stock
SKU
96288

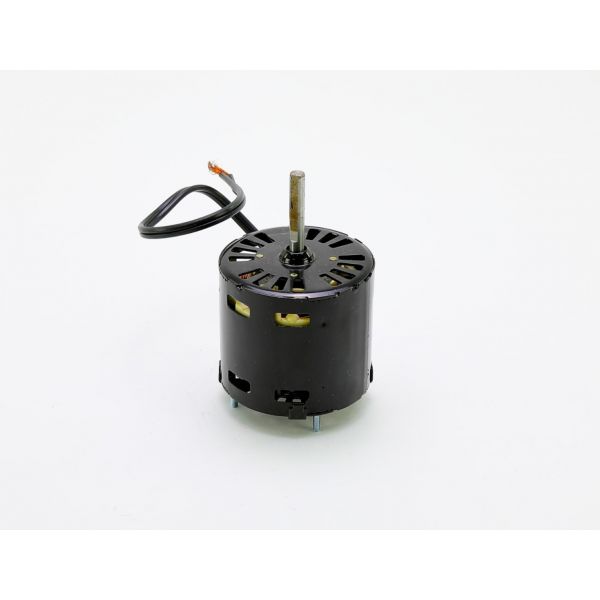

The Reznor 96288 is a replacement fan motor specifically designed for Reznor F and FE series unit heaters with a heating capacity of 75,000 BTU. It's a vital component that drives the unit heater's internal fan, ensuring proper air circulation throughout the space. The motor works by converting electrical current into rotational motion through its internal windings and bearings. This spinning motion is then transferred to the fan blades, which propel air across the heat exchanger, distributing warm air throughout the room. The Reznor 96288 is built for compatibility with standard 115V electrical systems and operates at a speed of 1550 RPM. It provides a modest 1/15 horsepower, making it suitable for residential and light commercial applications. The motor also operates at a standard frequency of 60Hz and weighs around 5.51 pounds. Replacing a worn-out Reznor 96288 fan motor with a new one can restore optimal airflow within your unit heater, ensuring efficient and consistent heating performance.

Manufacturer:
https://www.partshnc.com/media/catalog/product/9/6/96288-reznor_partshnc.jpg

Specifications

  • Voltage/Electrical: 115V
  • RPM (Revolutions Per Minute): 1550 RPM
  • Horsepower(HP): 1/15Hp
  • Frequency: 60Hz
  • Weight: 5.51lbs

Fan motors provide the mechanical rotation needed to move air through heating and ventilation equipment. The Reznor 96288 is a fan motor designed to drive a connected fan in a compatible air-moving assembly. Its rotational output supports the airflow required by the associated equipment.

ODP Motor Construction and Electrical Operation:
An Open Drip Proof (ODP) motor uses an enclosure design that allows air to circulate around its internal components for cooling while providing protection against vertically falling droplets. The motor converts electrical energy into mechanical shaft rotation to drive the connected fan. Its electrical supply and power requirements must match the intended application.

Fan Drive and Air Movement:
The motor transfers rotational movement through its shaft to the connected fan. As the fan rotates, its blades move air through the assembly's intended airflow path. The motor and fan work together to provide the air movement required by the equipment.

Replacement Guidelines:
Replacement may be appropriate when a confirmed motor fault prevents the fan from receiving the mechanical drive required for normal operation. Before ordering, compare the existing 96288 part number and verified specifications with the requirements of the intended equipment.

Common Signs of Wear:

  • Intermittent motor operation
  • Reduced fan rotation
  • Unusual motor vibration
  • Motor overheats during operation
  • Fan stops during the operating cycle

Equipment Compatibility:
The Reznor 96288 Fan Motor is intended for compatible fan and blower applications. The equipment models provided for compatibility checking are FE125, F75, F200, and F50. Verify each model, the motor's electrical requirements, mounting arrangement, and part number against the applicable equipment parts documentation before ordering.

Technical Specifications:
Product Identification:
Brand: Reznor
Part Number: 96288
Product Type: Fan Motor

Electrical:
Voltage: 115V
Frequency: 60Hz
Phase: 1-Phase

Mechanical:
Horsepower: 1/15 HP

Write Your Own Review
You're reviewing:Reznor 96288 1/15 HP ODP Fan Motor 115V 1-Phase 60Hz
Your Rating
Customer Questions
What maintenance is required for the Reznor 96288 Fan Motor?

Regularly inspect the fan motor for dust buildup, loose connections, and worn components. Lubricate bearings as recommended by the manufacturer. Proper maintenance prevents overheating and ensures consistent performance. Ensure the power is off before servicing.

What are common issues with the Reznor 96288 Fan Motor?

  • Motor fails to start or runs intermittently.
  • Excessive vibration or noise during operation.
  • Overheating or tripping of circuit breakers.
  • Reduced airflow due to worn or misaligned blades.

What is the function of the Reznor 96288 Fan Motor?

It provides the mechanical rotation needed to drive a connected fan, allowing air to move through the associated heating or ventilation equipment.

How does the ODP enclosure affect motor construction?

The Open Drip Proof enclosure allows cooling air to circulate around internal motor components while providing protection against vertically falling droplets. It is not designed to protect against every form of moisture or environmental exposure.

How does the 96288 motor support fan operation?

The motor converts electrical energy into shaft rotation, which drives the connected fan and produces airflow through the assembly.

Which equipment models should be checked for compatibility with the 96288?

The supplied models are FE125, F75, F200, and F50. Confirm that the applicable equipment parts documentation specifies this motor for the intended model before purchasing.

What should be checked before purchasing a replacement for the 96288?

Compare the existing part number, electrical requirements, motor enclosure, mounting arrangement, and equipment documentation to confirm that the replacement is suitable.

Installation Steps

Step 1: Turn off all power to the unit to ensure safety.

Step 2: Remove any access panels to reach the existing fan motor.

Step 3: Disconnect the wiring and mounting hardware from the old motor.

Step 4: Carefully remove the old fan motor from its housing.

Step 5: Position the new Fan Motor in alignment with mounting points.

Step 6: Secure the motor with screws, reconnect wiring restore power, and test operation.
