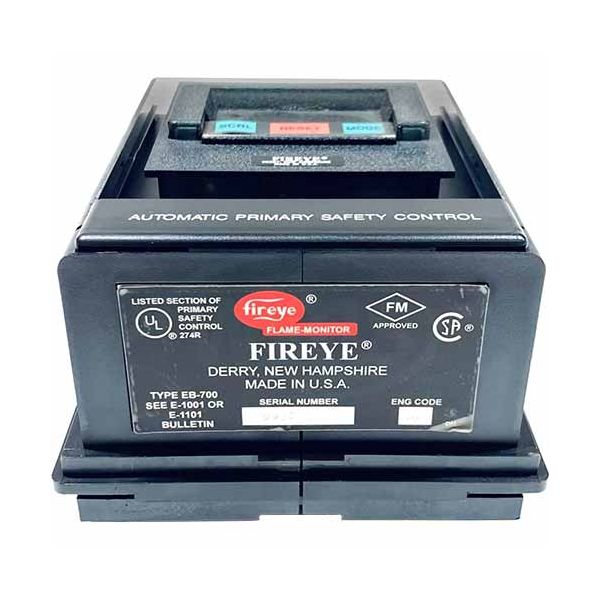

Fireye EB700 Flame Monitor Chassis Only

EB700 Fireye Flame Monitor Chasis

The Fireye EB700 stands as a purpose-built replacement chassis that provides a robust enclosure for essential electrical and electronic components critical to the seamless operation of these flame monitors. It ensures precise flame monitoring and interlock capabilities, thereby minimizing the potential for accidents. The EB700 Fireye flame monitor chassis contributes to heightened efficiency through optimized burner control, resulting in decreased fuel consumption and lower emissions. Maintenance procedures are simplified with a modular design and self-diagnostics, facilitating troubleshooting and repairs. Moreover, its versatility shines through its adaptability to diverse burner configurations and fuel types, making it a reliable choice for comprehensive flame monitoring systems.

Key features:

• Microprocessor-based control: Provides precise and reliable burner sequencing, ignition, and flame monitoring.
• Interchangeable programmer and flame amplifier modules: Allows for customization of control functions, timing, and flame scanning methods based on specific burner requirements.
• Self-diagnostics: Features non-volatile memory and a vocabulary of 42 messages to inform operators about system status and potential issues.
• 18-terminal wiring base: Supports connection to various control circuits, motors, valves, ignition transformers, and interlocks.
• Directly interchangeable with most E100 and D Series controls: Offers compatibility and simplifies upgrades.
• Durable construction: Built to withstand harsh industrial environments.

Signs of Faulty Fireye EB700 Flame Monitor Chasis

Operational Issues:

• Burner ignition failures: If the burner fails to ignite consistently or requires multiple attempts, it could indicate malfunctioning ignition components, defective sensors, or programming errors within the EB700.
• Unstable flame: Flickering or fluctuating flame could be due to improper fuel-air mix, faulty flame detection, or issues with the control sequence defined in the EB700.
• Unexpected burner shutdowns: If the burner shuts down unexpectedly without a clear reason, it could be due to safety interlock triggers, self-diagnostics identifying internal faults, or programming errors causing premature shutdowns.
• Abnormal error messages: The EB700 displays various messages to indicate system status and potential issues. Pay attention to persistent or unusual messages not aligned with normal operation.

Safety Concerns:

• Gas leaks: A faulty EB700 or associated components could lead to incomplete combustion or improper burner sequence, potentially causing gas leaks posing a fire hazard.
• Unexpected burner operation: Malfunctions within the EB700 control logic could lead to erratic burner behavior, including unintended ignition or delayed shutdowns, increasing safety risks.

Choose the best HVAC equipment parts and supplies from PartsHnC!

• Same Day Shipping

• Best Quality And Best Price

• Wide Range of Inventory

• Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

FAQs

How do I program the EB700 flame monitor chasis?

Programming requires a separate programmer module, like the FP700. Consult the specific programmer module's user manual for detailed instructions.

What do the diagnostic messages mean?

The EB700 displays various messages about system status and potential issues. Refer to the Fireye documentation for explanations of each message.
