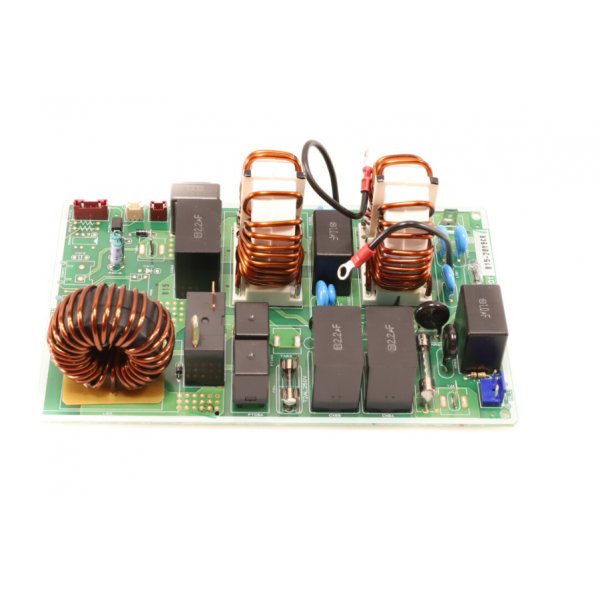

Mitsubishi Electric E22D21444 Noise Filter Printed Circuit Board

Rating:
5 5 6
6  Reviews Add Your Review
Special Price $320.71 Regular Price $355.98
In stock
SKU
E22D21444
The Mitsubishi Electric E22D21444 Noise Filter Printed Circuit Board is an essentialpart of some of the Mitsubishi Electric HVAC products. It works by suppressing electromagnetic interference, which is common within the unit and may lead to the breakdown of the electrical signals. This is a PCB-mounted board and can be used for 120V/240V and can pass up to 5A of current. With the help of the noise filter, EMI is eliminated and your Mitsubishi Electric HVAC system runs smoothly and does not cause damage to the essentialelectronic parts.
Add to Wish List
Mitsubishi Electric Heat Pump Parts, HVAC Controls & Electrical
Manufacturer:
https://www.partshnc.com/media/catalog/product/s/c/screenshot_2023-07-13_134039.png

Specifications

  • Voltage: 120V, 240V
  • Weight: 1.84lbs
  • Type: Noise Filter
  • Function: Reduce electromagnetic interference
  • Mounting Type: Printed Circuit Board (PCB) mountable
  • Current: 5A
Supports electrical noise filtering through an integrated printed circuit board designed to manage unwanted electrical disturbances within a connected circuit in HVAC systems. The Mitsubishi Electric E22D21444 Noise Filter Printed Circuit Board uses its internal filtering arrangement to influence the electrical characteristics of the circuit pathway and support a controlled waveform. It is used within electrical equipment where noise filtering is required, with the board operating as part of the connected circuit to regulate its electrical response.

Electrical Interference:
Electrical disturbances present within its designated circuit environment. Such disturbances can appear as variations in waveform shape, voltage behavior, or signal characteristics associated with electrical activity surrounding the board. The board’s role relates specifically to managing the electrical conditions that can accompany normal circuit operation. These conditions provide the basis for applying a dedicated noise-management component within the electrical assembly and maintaining the intended quality of the circuit environment.

Circuit Filtering:
Integrated circuit elements to establish frequency-dependent electrical characteristics. Each filtering element contributes to the overall response of the network according to its electrical properties and position within the circuit. The combined arrangement creates selective impedance across designated frequency ranges, shaping the electrical waveform as it travels through the board. This coordinated network provides the specific filtering behavior associated with the printed circuit board.

Replacement Guidelines:
Replacement requires matching the Mitsubishi Electric E22D21444 Noise Filter Printed Circuit Board configuration, electrical characteristics, connection arrangement, equipment requirements, and applicable control-system specifications. The replacement should also suit the existing electrical assembly and the designated circuit pathway.

Common Failure Symptoms:

  • Electrical interference appears during equipment operation.
  • Control signals become unstable or inconsistent.
  • Electronic operation becomes intermittently unresponsive.
  • Equipment experiences irregular electrical behavior.
  • Circuit operation becomes unstable under load.

Equipment Compatibility:
The Mitsubishi Electric E22D21444 Noise Filter Printed Circuit Board is intended for equipment requiring the corresponding noise-filter board configuration. Verify the equipment model, circuit arrangement, board connections, physical configuration, and manufacturer’s documentation before purchasing.

Technical Specifications:
Brand: Mitsubishi Electric
Part Number: E22D21444
Product Type: Noise Filter Printed Circuit Board

Reviews 6
Write Your Own Review
You're reviewing:Mitsubishi Electric E22D21444 Noise Filter Printed Circuit Board
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Mitsubishi Electric E22D21444 Noise Filter Printed Circuit Board?

Regularly inspect the noise filter board for dust, corrosion, and loose solder joints. Gently clean contacts with compressed air and ensure secure mounting. Always disconnect power before handling the board. Proper maintenance helps prevent electrical interference and ensures stable performance.

What are common issues with the Mitsubishi Electric E22D21444 Noise Filter Printed Circuit Board?

  • Intermittent signal interference or noise.
  • Overheating due to poor ventilation.
  • Burnt or damaged components.
  • Loose or corroded electrical connections.

Why is a noise filter board used in an electrical circuit?

The E22D21444 manages unwanted electrical components that can appear alongside the intended circuit waveform during normal electrical operation.

How does the E22D21444 integrate with the electrical circuit?

The board connects within the designated electrical pathway, allowing its filtering network to interact directly with the circuit signals passing through the assembly.

How does a noise filter establish a controlled electrical response?

Its integrated network combines filtering elements with defined electrical characteristics to create a controlled response across selected frequency ranges.

How can filtering affect the characteristics of an electrical waveform?

Filtering modifies selected portions of the electrical waveform according to the frequency-dependent behavior established by the integrated circuit network.

What role does the E22D21444 serve within the circuit assembly?

It serves as an integrated noise-filtering board that establishes the electrical network required for managing unwanted circuit disturbances.

Installation Steps

Step1: Turn off power to the unit and disconnect from the mains.

Step2: Open the access panel and locate the existing noise filter board.

Step3: Disconnect all wiring from the old board, noting terminal locations.

Step4: Mount the new noise filter PCB and reconnect wires to matching terminals.

Step5: Close the panel, restore power, and verify proper electrical noise suppression.
