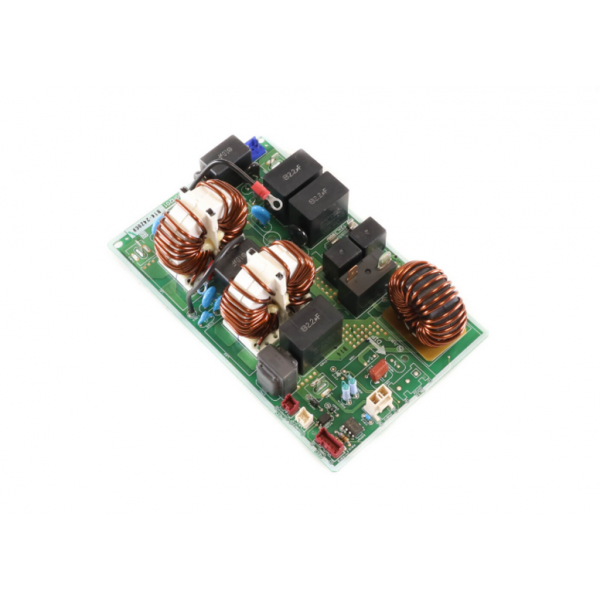

Mitsubishi Electric E22D20444 Control Board

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $348.84 Regular Price $387.21
In stock
SKU
E22D20444

The Mitsubishi Electric E22D20444 Control Board is the brains behind some Mitsubishi Electric HVAC systems. It's a circuit board packed with electronic components that receive sensor signals, interpret them, and send commands to various components such as the compressor, fan, and valve. This clever control guarantees that your heating and cooling systems run efficiently.The E22D20444 Control Board is built exclusively for Mitsubishi Electric HVAC equipment.  Without a working control board, your system would be unable to adjust temperature, maintain ventilation, or improve performance.  A well-operating control board contributes to a cozy living space, economical energy use, and maybe longer equipment life.

Add to Wish List
Circuit Boards, Control Boards
Manufacturer:
https://www.partshnc.com/media/catalog/product/e/2/e22d20444_mitsubishi-electric_partshnc.png
Manufacturer Name: Mitsubishi Electric
Product Number: E22D20444
OEM Part Number: E22D20444
Product Description: Control Board
Weight:1.85lbs/839.15g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 2
Write Your Own Review
You're reviewing:Mitsubishi Electric E22D20444 Control Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Mitsubishi Electric E22D20444 Control Board?

Avoid dust buildup by regularly inspecting and gently cleaning the board and its connectors. Proper maintenance ensures stable performance and prevents electrical faults. Always power off equipment and use anti-static precautions while handling to avoid component damage.

What are common issues with the Mitsubishi Electric E22D20444 Control Board?

  • Intermittent operation due to loose or damaged connectors.
  • Overheating caused by poor ventilation or component pressure.
  • Signal or communication errors within the control system.
  • Corrosion or oxidation on circuit contacts leading to faults.

Installation Steps

Step 1: Turn off all electrical power and confirm zero voltage before accessing the unit.

Step 2: Remove access panel and label all wiring harnesses connected to the existing control board.

Step 3: Carefully disconnect connectors and unscrew the old PCB from its mounting standoffs.

Step 4: Install the new control board, ensuring proper alignment and secure mounting.

Step 5: Reconnect all wiring exactly per original configuration, checking for tight, correct seating.

Step 6: Restore power and run system diagnostics to check communication, fan, and compressor control operation.

Step 7: Confirm normal operation and check for error codes after startup.
