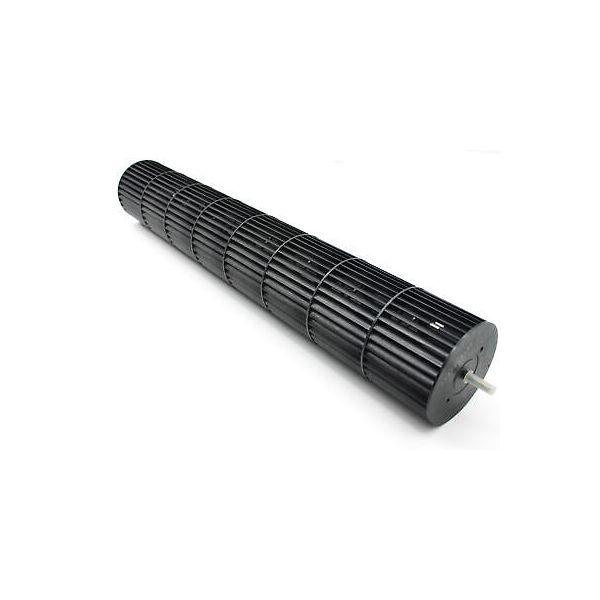

Mitsubishi Electric E22A89302 Line Flow Fan

Rating:
5 5 6
6  Reviews Add Your Review
Special Price $71.26 Regular Price $81.95
In stock
SKU
E22A89302
The Mitsubishi Electric E22A89302 Flow Fan is an essential component for HVAC systems, specifically designed to improve air circulation and temperature regulation. This flow fan helps to force air through the system and thus enhances the distribution of air and consequently better thermal comfort in the room. This piece of equipment is small and easy to install and maintain and so that offers increased operational dependability and cost-effectiveness of the E22A89302. The feature is particularly useful for maintaining steady temperatures and maintaining healthy within various commercial and residental applications.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/e/2/e22a89302.jpg

Specifications

  • Type: Flow Fan
  • Weight: 2.23lbs

HVAC equipment uses line flow fans to circulate air through the intended airflow path. The Mitsubishi Electric E22A89302 is a line flow fan designed for compatible HVAC equipment. It forms part of the airflow assembly that provides the required air movement during equipment operation.

Motor-Driven Fan Movement:
The Mitsubishi Electric E22A89302 Line Flow Fan works with a motor that provides the rotational movement required for the fan to move air. The motor supplies the mechanical rotation, while the line flow fan uses that rotation to generate and circulate airflow through the associated equipment.

Air Movement Within Equipment:
Within the associated HVAC equipment, the E22A89302 Line Flow Fan supports the movement of air along the intended airflow path. Its operation contributes to the circulation of air through the equipment, allowing the airflow assembly to perform its intended function during operation.

Replacement Guidelines:
Replacement may be appropriate when the existing line flow fan is damaged or no longer provides the required air movement. Before selecting the Line Flow Fan, compare the original part number, fan type, physical arrangement, and other applicable equipment requirements.

Common Signs of Wear:

  • Reduced air movement from the fan
  • Irregular fan rotation
  • Unusual noise during fan rotation
  • Noticeable vibration from the fan
  • Fan rotation stops intermittently

Equipment Compatibility:
The Mitsubishi Electric E22A89302 Line Flow Fan should be selected for equipment requiring the corresponding line flow fan. Before purchase, verify the fan type, physical arrangement, and other applicable equipment requirements to confirm compatibility.

Technical Specifications:
Brand: Mitsubishi Electric
Part Number: E22A89302
Product Type: Line Flow Fan

Reviews 6
Write Your Own Review
You're reviewing:Mitsubishi Electric E22A89302 Line Flow Fan
Your Rating
Product Questions (12)
Customer Questions
What maintenance is required for the Mitsubishi Electric E22A89302 Flow Fan?

Inspect the flow fan regularly for dust buildup, debris, and balanced rotation to maintain proper airflow. Clean the fan blades and housing carefully after disconnecting power to prevent electrical hazards. Check mounting screws and electrical connections for tightness and wear. Replace the fan if it produces unusual noise, vibration, or reduced airflow performance.

What are common issues with the Mitsubishi Electric E22A89302 Flow Fan?

  • Reduced airflow.
  • Unusual noise or vibration.
  • Motor overheating.
  • Fan failure to start or intermittent operation.

What role does the E22A89302 Flow Fan play in an indoor unit?

It converts rotational motion into directed air movement through the indoor unit's internal airflow passage.

How does the flow fan direct air toward the supply-air section?

The physical arrangement of the rotating fan determines how surrounding air is captured and directed toward the supply-air section.

Where does the E22A89302 operate within the indoor airflow assembly?

It operates within the airflow assembly, where its rotation moves air through the designated path between the heat-exchange area and supply outlet.

Why does indoor air pass across the heat-exchange area before reaching the supply outlet?

Air passes across the heat-exchange surface so the indoor air stream can interact with the component responsible for transferring thermal energy during the applicable operating mode.

How is a flow fan different from the components that provide heating or cooling?

The flow fan provides air movement, while separate indoor heat-exchange components perform the thermal transfer associated with heating or cooling.

What type of fan is the Mitsubishi Electric E22A89302?

The Mitsubishi Electric E22A89302 is a line flow fan used to provide air movement within compatible HVAC equipment.

How does the E22A89302 work with a motor?

The motor supplies the rotation that drives the line flow fan, allowing the fan to perform its air-moving function.

What role does the E22A89302 play in HVAC equipment?

It forms part of the airflow assembly and supports the movement of air along the equipment's intended airflow path.

When may the E22A89302 Line Flow Fan need to be replaced?

Replacement may be appropriate when the fan is damaged or no longer provides the required air movement. Irregular rotation, unusual noise, vibration, or intermittent operation may also indicate a need for replacement.

What should be verified before selecting the E22A89302?

Verify the existing part number, line flow fan type, physical arrangement, and other applicable equipment requirements to confirm compatibility.

Installation Steps

Step1: Turn off power to the HVAC unit before starting to avoid injury.

Step2: Remove access panel and disconnect wiring from the old fan assembly.

Step3: Unscrew and remove the old flow fan, install the new fan in the correct orientation.

Step4: Reconnect wiring, replace the panel, restore power, and test airflow to confirm proper operation.
