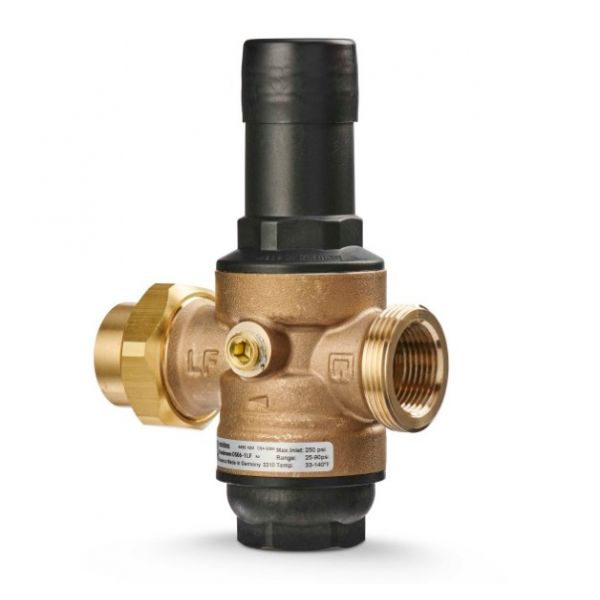

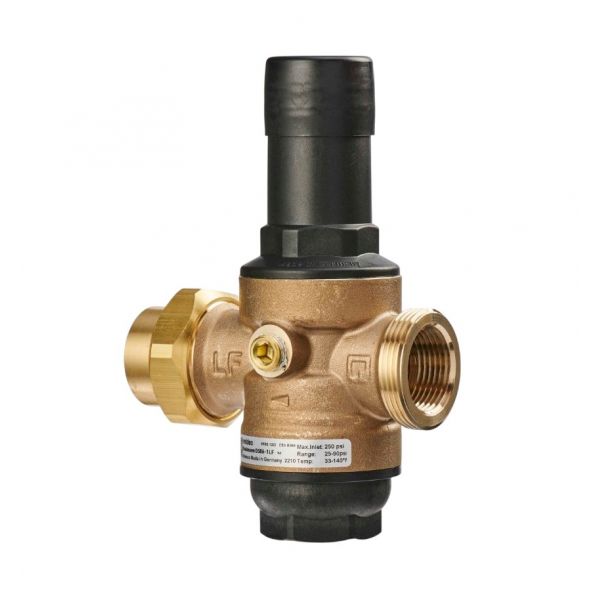

Resideo DS06-102-SUT-LF Pressure Regulating Valve 1" 25-90 PSI NPT Union
Special Price $111.84 Regular Price $128.62
In stock
SKU
DS06-102-SUT-LF
The DS06-102-SUT-LF Pressure Regulating Valve is designed to maintain water pressure between 25 and 90 PSI to give you the better performance and protection of your plumbing. This valve is particularly suitable for use in a wide range of residential through commercial installations due to its broad range of HVAC applications requiring temperature regulation. A 1" single union NPT connection size and integrated gauge tap simplifies installation and monitoring. This valve works at temperatures from 33°F to 140°F, protecting your system components from pressure-related damage, extending the life of your system components and ensuring proper system performance.
Manufacturer:
Specifications
- Type: Pressure Regulating Valve
- Temperature Range: 33°F to 140°F
- Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance The wettable surfaces contain less than 0.25% of lead by weighted average
- Connection Size: 1"
- Connection Type: Single Union Thread (NPT)
- Outlet Pressure Range: 25-90 PSI
- Valve Body Material: Lead-free ECO BRASS
- Valve Type: DialSet Pressure Regulating Valve
- DN Size: DN25
- Valve Diaphragm Material: Fabric-reinforced diaphragm
- Number of Gauge Taps: 1
- Dimensions: 5"x6.94"
