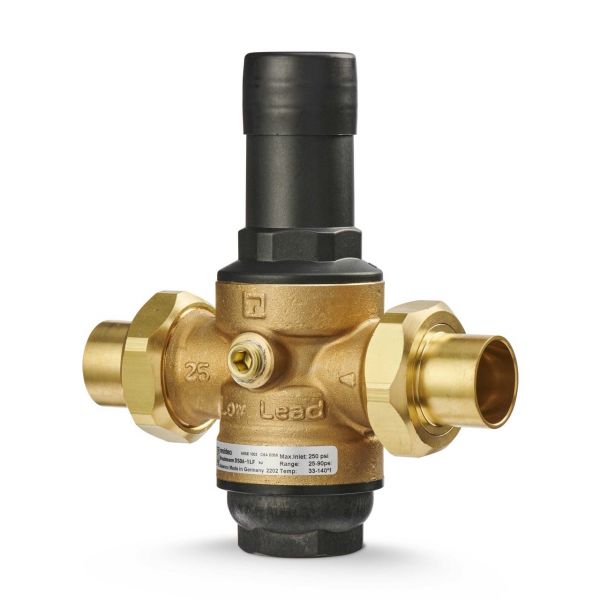

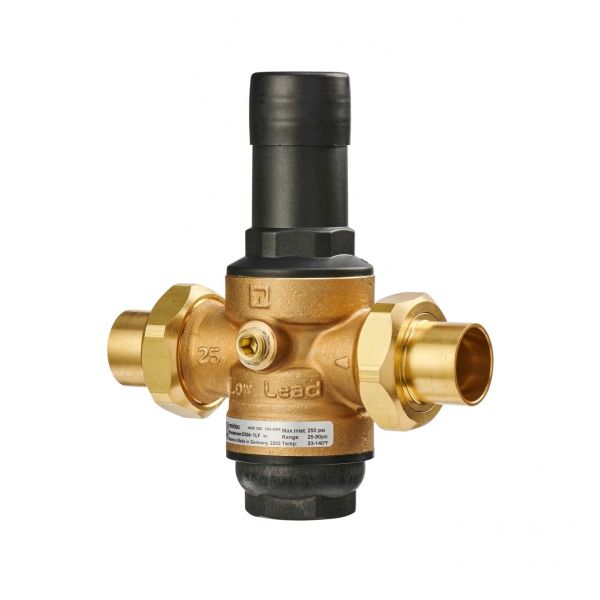

Resideo DS06-102-DUS-LF Dial Set Pressure Regulating Valve 1" Female NPT Double Union Sweat PRV
Special Price $160.99 Regular Price $185.14
In stock
SKU
DS06-102-DUS-LF
The Resideo DS06-102-DUS-LF Dial Set Pressure Regulating Valve is a high-performance valve intended for precise potable water pressure regulation in residential and commercial HVAC systems. This valve, with a 1" Female NPT Double Union Sweat connection, is perfect for home hot water applications. It is made of lead-free ECO brass and fulfills demanding requirements such as ASSE 1003-2020 and NSF/ANSI 61 to ensure safety and compliance. The valve's straight-through body design and fabric-reinforced diaphragm ensure longevity and dependability, with an outlet pressure range of 25 to 90 PSI. The dial set design provides for simple adjustment and precise pressure control, preventing plumbing systems from damage caused by pressure fluctuations. With a temperature range of 33°F - 140°F and a maximum pressure rating of 250 PSI, this flexible valve provides efficient.
Manufacturer:
Specifications
- Type: Dial Set Pressure Regulating Valve
- Temperature Range: 33°F to 140°F
- Approvals and Standards: ASSE 1003-2020 Listed, CSA Certified (B356-10), IAPMO Listed, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant, UPC Listed, Lead Free Plumbing Code Compliance The wettable surfaces contain less than 0.25% of lead by weighted average
- Color: Black, Brass, Green
- Connection Size: 1"
- Connection Type: Double Union Sweat
- Domestic Hot Water: Valve
- Max Pressure: 250 PSI
- Number of Connections: 2
- Outlet Pressure Range: 25 - 90 PSI
- Height: 6.94"
- Length: 6.53"
- Valve Body Material: Lead-free ECO Brass
- Valve Body Pattern: Straight Through
- Application: Potable Water Pressure Regulation
- DN Size: DN25
- Controlled Media: Potable Water
- Valve Diaphragm Material: Fabric-reinforced diaphragm
- Number of Gauge Taps: 1
