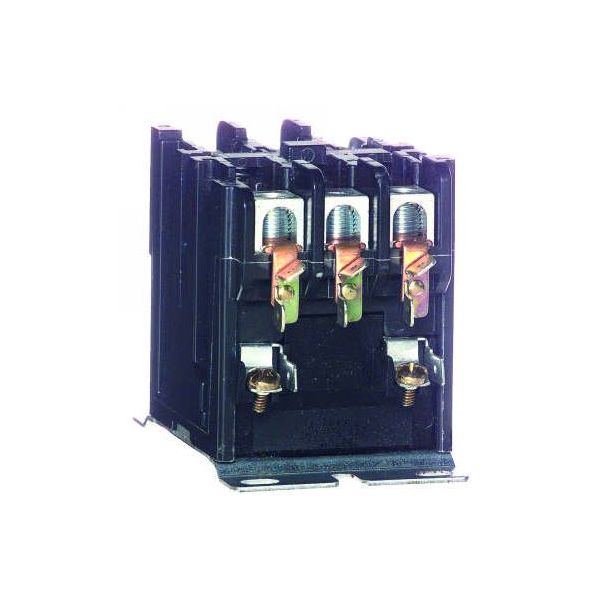

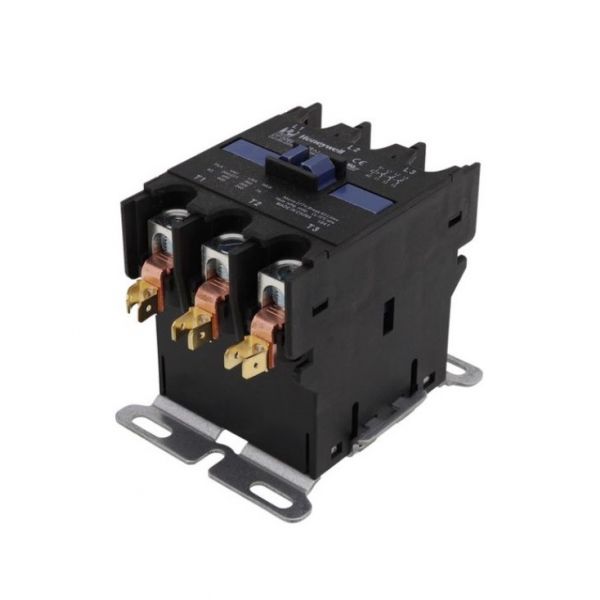

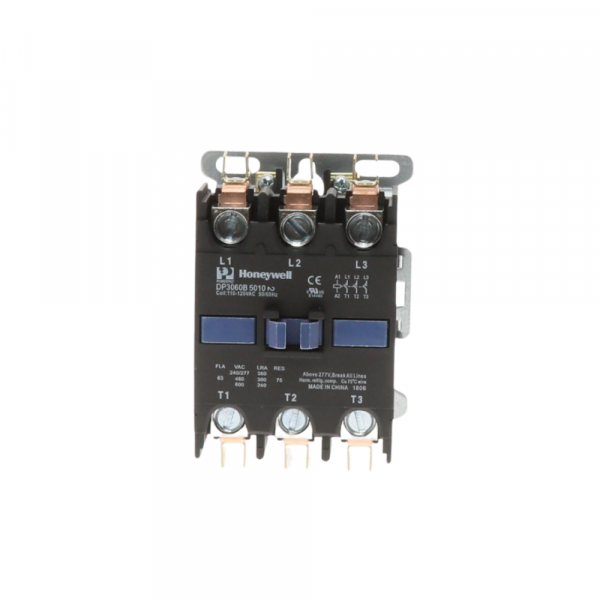

Resideo DP3060B5010 3-Pole PowerPro Definite Purpose Contactor 60A/120V
Special Price $134.41 Regular Price $154.57
In stock
SKU
DP3060B5010
The Resideo DP3060B5010 is a strong 3-pole contactor designed to reliably control electrical loads in HVAC systems. This definite purpose contactor controls the power supply to such devices as the compressor and fans and guarantees the maximum performance of the system. It has 60A capability and 120V coil, which means it is capable of meeting the most challenging tasks. The contactor is built to withstand harsh conditions of usage such as shrouded coils and encapsulation with moisture-resistant epoxy to enhance durability. Its wide operating temperature range (-13°F to +158°F) thereby makes reliable in many climates.
Manufacturer:
Specifications
- Type: Definite Purpose Contactor
- Application: PowerPro Definite Purpose Contactor
- Approvals and Standards: UL Component Recognized- File No. 14480, Guide No. NLDX2, CSA Certified- File No. LR6535, CE Compliant, RoHS Compliant, ARI 780/790
- Coil Rating Voltage: 120 VAC
- Coil Connection Size: 1/4"
- Coil Connection Type: Quick Connect, Screws
- Number of Poles: 3-Poles
- Frequency: 50/60 Hz
- Connection Type: Lug Connectors
- Electrical Connection Type: Lug Connectors
- Switch Action: DPST
- Temperature Range: -13°F to +158°F
- Height: 3.3"
- Width: 4"
