Daikin-McQuay 106163023 Double Shaft Motor 115/60/1 1/8HP

Rating:
5 5 5
5  Reviews Add Your Review
Special Price $727.16 Regular Price $807.14
In stock
SKU
106163023

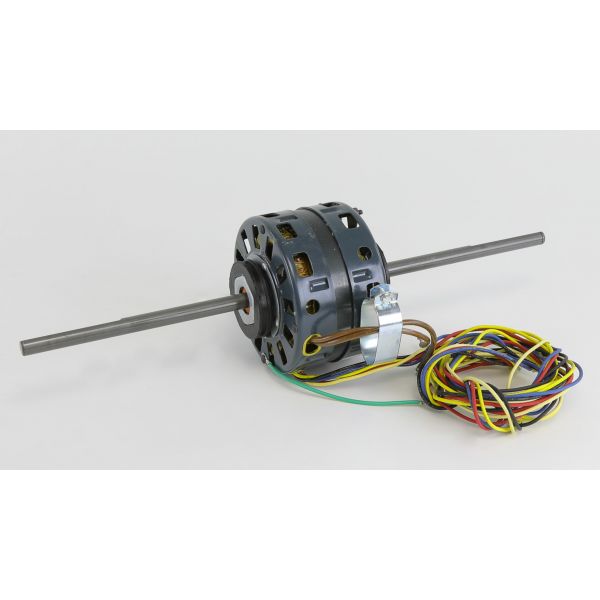

The Daikin-McQuay 106163023 is a versatile double-shaft motor designed for precise airflow control in residential and light commercial HVAC systems. Operating on standard household current (115 volts AC) at 60Hz, it packs a modest 1/8 horsepower (HP) rating. This translates to quiet and energy-efficient operation, ideal for powering dampers or valves within your HVAC system. A key benefit of this motor is its double-shaft design. This means it has two independent shafts that can rotate at the same speed (1400 RPM). The Daikin-McQuay 106163023 finds application in air handling units and ductwork systems. Here, the two shafts connect directly to dampers or valves that control airflow throughout a building. By independently controlling each shaft (potentially using separate controls), two separate dampers or valves can be actuated for more precise airflow management. This allows for optimized comfort and potentially improved system efficiency. For example, one damper might control the supply air, while the other controls exhaust air, allowing for balanced ventilation. At a manageable weight of 8.36 lbs, the Daikin-McQuay 106163023 is easy for qualified personnel to handle and install within compatible HVAC units. Be sure to consult your specific unit's manual for compatibility information before ordering a replacement motor.

Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/0/106163023-daikin-mcquay_partshnc.jpg

Specifications

  • Voltage/Electrical: 115V
  • RPM (Revolutions Per Minute): 1400 RPM
  • Horsepower(HP): 1/8HP
  • Frequency: 60Hz
  • Weight: 8.36lbs

A double shaft motor provides mechanical rotation for HVAC components designed for this motor configuration. The Daikin-McQuay 106163023 Double Shaft Motor provides mechanical drive through its two shaft ends, allowing connected components to operate during equipment operation. Its three-speed configuration identifies the motor's multi-speed operating arrangement for compatible applications.

Double Shaft Motor Operation:
The 106163023 Double Shaft Motor converts electrical energy into mechanical rotation and transfers that rotation through its two shaft ends. The double shaft configuration provides mechanical drive at both ends for components designed to connect to this type of motor.

Motor Electrical and Speed Characteristics:
The 106163023 operates at 115V, 60 Hz, single-phase power and is rated at 1/8 HP. Its specified speed is 1400 RPM with a three-speed configuration. These electrical, power, and speed characteristics help define the motor requirements for the intended equipment.

Replacement Guidelines:
Replacement may be appropriate when the existing motor can no longer provide the required mechanical rotation or when its motor configuration no longer matches the application. Before selecting a replacement, verify the original part number, double shaft configuration, voltage, frequency, phase, horsepower, speed, and three-speed configuration.

Common Failure Symptoms:

  • Motor fails to start or rotate
  • Intermittent motor operation
  • Irregular shaft rotation
  • Unusual motor noise
  • Excessive vibration

Equipment Compatibility:
The Daikin-McQuay 106163023 Double Shaft Motor should be selected for equipment requiring the corresponding double shaft and three-speed motor configuration. Before purchasing, verify the existing motor's part number, shaft configuration, electrical requirements, speed, horsepower, and other applicable motor characteristics to confirm compatibility.

Technical Specifications:
Part Identification:
Brand: Daikin-McQuay
Part Number: 106163023
Product Type: Double Shaft Motor

Electrical:
Voltage: 115V
Frequency: 60 Hz
Phase: 1 Phase
Horsepower: 1/8 HP

Mechanical:
Shaft Configuration: Double Shaft
Speed: 1400 RPM

Control:
Speed Configuration: 3 Speed

Reviews 5
Write Your Own Review
You're reviewing:Daikin-McQuay 106163023 Double Shaft Motor 115/60/1 1/8HP
Your Rating
Product Questions (10)
Customer Questions
Can the Daikin McQuay Motor Double Shaft be repaired, or does it need to be completely replaced?

In most cases, a damaged or faulty motor double shaft cannot be effectively repaired and should be replaced. Attempting to repair it might lead to further issues or safety hazards.

What are the recommended steps for replacing a Daikin McQuay Motor Double Shaft?

When replacing the motor double shaft, follow manufacturer guidelines, turn off the power supply, disconnect components, remove the old motor, install the new one, reconnect and test the system for proper operation.

Are there any preventive measures to extend the life of the motor double shaft?

Regular maintenance of your HVAC system can help prolong the life of the motor double shaft. This includes keeping the system clean, lubricating moving parts, and ensuring proper ventilation to prevent overheating.



What maintenance is required for the Daikin-McQuay 106163023 Double Shaft Motor?

Inspect the motor regularly for dust buildup, loose mounting bolts, and worn bearings to ensure smooth operation. Check electrical connections and voltage supply to prevent overheating or unstable performance. Lubricate bearings if required by manufacturer guidelines. Always disconnect power before servicing to ensure safety.

What are common issues with the Daikin-McQuay 106163023 Double Shaft Motor?

  • Overheating during operation.
  • Unusual noise or vibrations.
  • Bearings wearing.
  • Motor failing to start or running intermittently.

What makes the Daikin-McQuay 106163023 different from a standard motor?

The 106163023 uses a double shaft configuration, allowing mechanical rotation to be transferred through both shaft ends.

How does the three-speed configuration affect the motor's operation?

The three-speed configuration allows the motor to operate at different speed settings for applications designed for multiple operating speeds.

What electrical requirements does the 106163023 have?

The motor is specified for 115V, 60 Hz, single-phase electrical operation.

What signs may indicate that the 106163023 needs replacement?

Failure to start or rotate, intermittent operation, irregular shaft rotation, unusual motor noise, or excessive vibration may indicate that replacement is appropriate.

How can I confirm whether the 106163023 is the correct motor?

Verify the existing motor's part number, double shaft configuration, electrical requirements, 1400 RPM speed, three-speed configuration, and 1/8 HP rating before purchasing.

Installation Steps

Step1: Turn off power at the breaker and confirm with a voltage tester.

Step2: Remove the access panel and detach belts or blower wheels from both shafts.

Step3: Disconnect wiring and label connections for proper reconnection.

Step4: Unbolt and remove the old motor from the mounting bracket.

Step5: Install the new motor, align shafts, and secure mounting bolts tightly.

Step6: Reconnect wiring per the diagram, reattach belts or wheels, and ensure proper tension.

Step7: Replace the panel, restore power, and test operation.

Check items to add to the cart or
