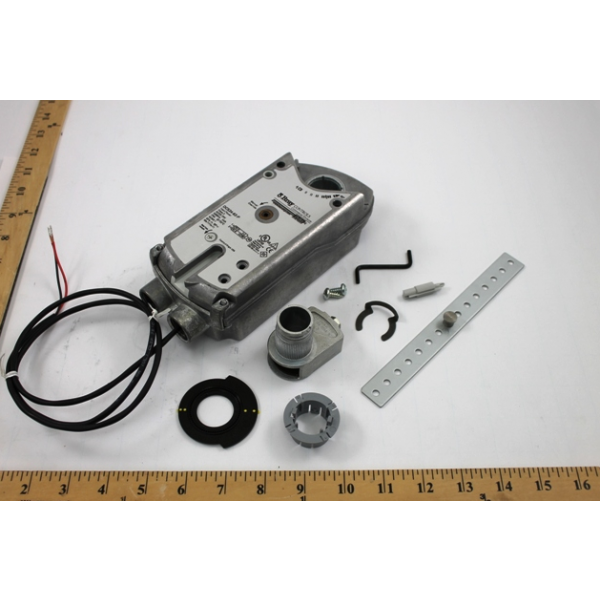

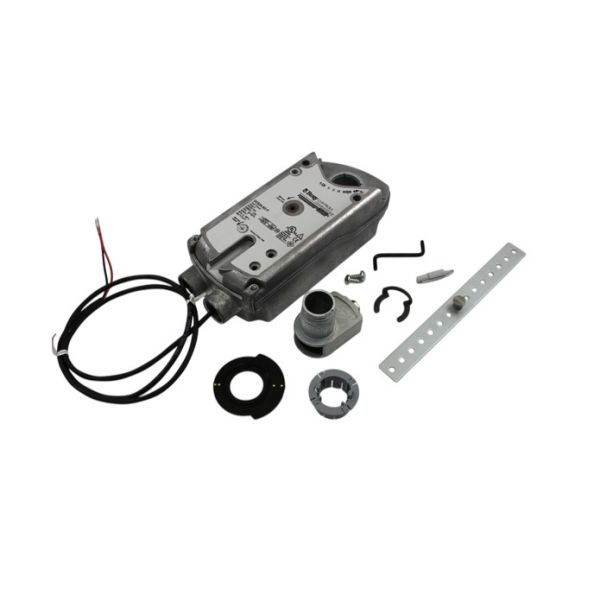

Bray Commercial DCS24-62-P S/R On/Off Actuator 24V

Be the first to review this product
Special Price $194.03 Regular Price $223.13
In stock
SKU
DCS24-62-P
The Bray Commercial DCS24-62-P Spring Return On/Off Actuator used for HVAC systems. This actuator is 24V powered and is used to control the position of dampers and valves in HVAC systems. When triggered, the actuator moves the connected part to either an open or closed state. Hence, in cases of power failure, the spring return mechanism brings the damper or valve back to a fail-safe position protecting the system against harm. This feature is instrumental in giving better flow rates and temperature stability in HVAC systems and therefore provides benefits that include energy efficiency, precise regulation with reliability in air handlers, mixing boxes, and other air distributing systems.
Add to Wish List
Bray Actuators,
Manufacturer:
https://www.partshnc.com/media/catalog/product/d/c/dcs24-62-p.jpg

Specifications

  • Type: Actuator
  • Control Type: On/Off
  • Fail-Safe Mode: Spring Return
  • Voltage: 24V

Product Overview:
Automated quarter-turn valve operation is provided by the Bray Commercial DCS24-62-P Spring Return On/Off Actuator. This OEM actuator operates on 24V power and uses spring-return action to move the connected valve between open and closed positions. It is designed for on/off control applications in compatible commercial HVAC and fluid-control systems.

Valve Operation:
The actuator converts electrical input into mechanical movement to operate the connected valve. Its on/off function provides two-position valve control for regulating fluid flow.

Spring Return:
The spring-return mechanism moves the actuator to its designated return position when electrical power is removed. This provides a defined valve position during power interruption.

Replacement Guidelines:
Replace the Bray Commercial DCS24-62-P actuator when the existing actuator is damaged or no longer operates the connected valve correctly. Use the Bray Commercial DCS24-62-P OEM replacement for compatible 24V spring-return on/off valve applications. Match the actuator mounting arrangement, valve connection, and spring-return direction before installation. Have a qualified technician inspect the electrical connections and valve operation during replacement.

Common Signs of Wear:

  • Valve fails to move between open and closed positions
  • Actuator does not respond to electrical commands
  • Spring-return movement becomes inconsistent
  • Actuator produces unusual operating noise
  • Connected valve remains in an unintended position

Equipment Compatibility:
The Bray Commercial DCS24-62-P OEM Spring Return On/Off Actuator is intended for compatible Bray commercial valve assemblies requiring 24V two-position control. Confirm the valve connection, actuator mounting arrangement, and spring-return direction before selecting this replacement.

Technical Specifications:
Brand: Bray Commercial
Part Number: DCS24-62-P
Product Type: On/Off Actuator
Operation: Spring Return
Control Type: On/Off
Voltage: 24V

Reviews
Write Your Own Review
You're reviewing:Bray Commercial DCS24-62-P S/R On/Off Actuator 24V
Your Rating
Product Questions (5)
Customer Questions
How does the Bray Commercial DCS24-62-P Spring Return On/Off Actuator operate a valve?

The DCS24-62-P converts electrical input into mechanical movement to move a connected valve between open and closed positions, providing two-position fluid-flow control.

What happens to the DCS24-62-P actuator when electrical power is interrupted?

Its spring-return mechanism moves the actuator to its designated return position when power is removed, providing a defined valve position during a power interruption.

Which valve applications are suitable for the Bray Commercial DCS24-62-P actuator?

It is intended for compatible Bray commercial valve assemblies requiring 24V spring-return, on/off control. Verify the valve connection and actuator mounting arrangement before selecting it.

What should be checked when replacing a DCS24-62-P actuator?

Confirm the 24V requirement, actuator mounting arrangement, valve connection, and spring-return direction. A qualified technician should also inspect the electrical connections and verify valve operation during replacement.

What maintenance checks help keep the DCS24-62-P actuator operating correctly?

Follow the manufacturer's maintenance guidance. Periodically inspect the actuator and valve connection for visible damage, check for unusual operating noise, and verify that both on/off movement and spring-return action operate correctly.
