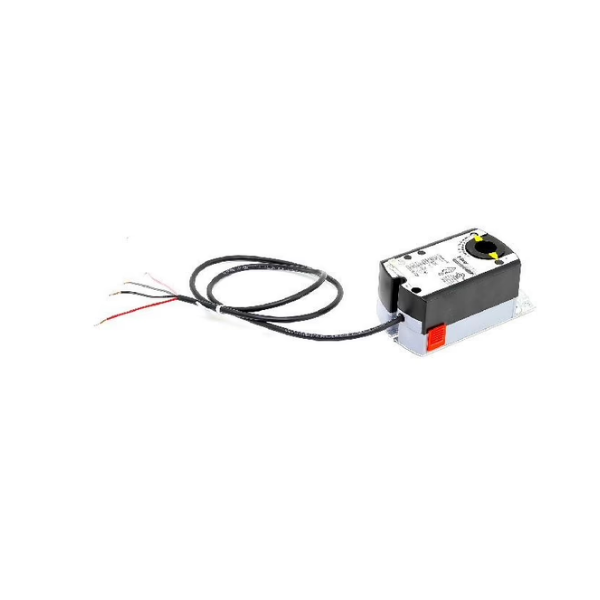

Bray Commercial DCM24-44-P NSR Actuator 0-10VDC 24V 44 in-lbs

Be the first to review this product
Special Price $146.77 Regular Price $168.78
In stock
SKU
DCM24-44-P

The Bray Commercial DCM24-44-P is a motorized actuator for controlling HVAC valves and dampers. Powered by a 24V DC supply, it translates a 0-10V DC signal into proportional movement, offering smooth and accurate control.  This torque rating of 44-inch pounds makes it appropriate for a range of valve types and damper sizes. Because of its non-spring return construction, which keeps its position even in the absence of power, it is perfect for fail-safe applications. The DCM24-44-P is frequently utilized in chilled water systems, variable air volume systems, and air handling units. It enhances airflow control, which results in improved temperature regulation and energy efficiency. Its silent functioning guarantees a cozy interior atmosphere. It is also a flexible option for a range of HVAC applications due to its small size and simple installation.

Add to Wish List
Manufacturer:

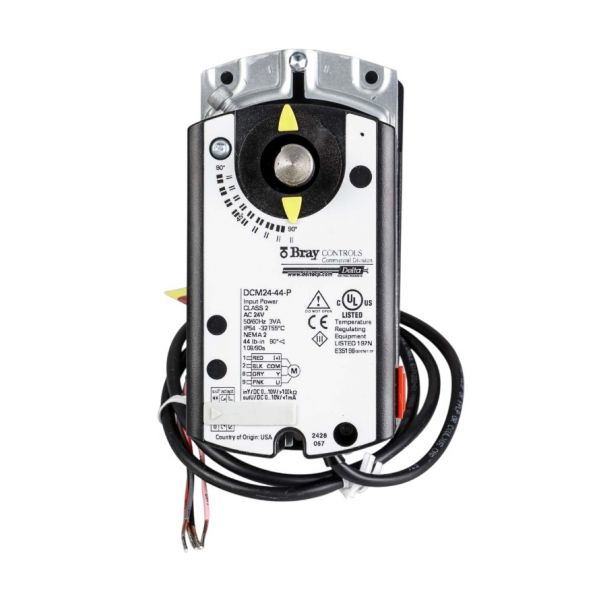

https://www.partshnc.com/media/catalog/product/d/c/dcm24-44-p.jpg
Manufacturer Name: Bray Commercial
Product Number: DCM24-44-P
OEM Part Number: DCM24-44-P
Product Description: 0-10Vdc 24V 44Inlbs Nsr Act
Weight:1.31lbs/594.21g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Bray Commercial DCM24-44-P NSR Actuator 0-10VDC 24V 44 in-lbs
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Bray Commercial DCM24-44-P Actuator?

Perform periodic inspection of wiring, mounting, and control signal response, ensuring smooth actuator movement. Prevent dust ingress and verify calibration regularly. Maintenance ensures accurate valve control and reduces operational failures. Always isolate power before servicing for safety.

What are common issues with the Bray Commercial DCM24-44-P Actuator?

  • Loss of control signal causing unresponsive operation.
  • Actuator stalling or intermittent movement under load.
  • Incorrect valve positioning or calibration drift.
  • Internal gear damage leading to noise or reduced torque.
  • Wiring or connection faults causing failure.

Installation Steps

Step 1: Isolate power supply and follow lockout/tagout procedures.

Step 2: Mount actuator on damper shaft and align coupling properly.

Step 3: Tighten set screws to manufacturer torque specifications.

Step 4: Connect power and control wiring per diagram check polarity.

Step 5: Configure direction and stroke limits per control settings.

Step 6: Test operation and verify smooth rotation and response.

Step 7: Restore power and ensure safety cover is installed securely.
