Danfoss 084B8523 Temperature Control EKC202C

Special Price $185.32 Regular Price $213.12
Out of stock
SKU
084B8523
The Danfoss 084B8523 Temperature Control EKC202C is versatility control device that is designed for use in refrigeration systems. With regard to the operating voltage, this control works at 230V and is capable of withstanding frequency of 50/60 Hz hence serves as a reliable control in terms of regulating temperature. It has a small volume of 0.503 liters and it is easily integratable into a range of HVAC systems. This makes the system efficient and reliable when it comes to task of aerating and heating or cooling to the right temperatures all while consuming less energy. In commercial refrigeration systems and many other cooling systems.

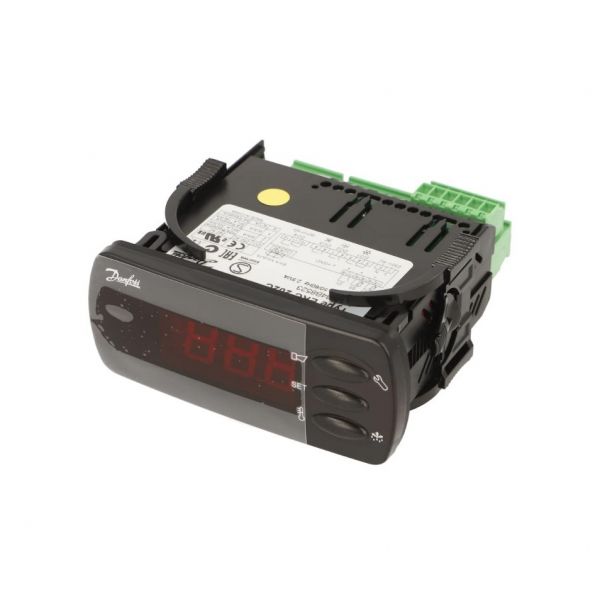

https://www.partshnc.com/media/catalog/product/0/8/084b8523.jpg

Specifications

  • Voltage: 230V
  • Application area: Refrigeration control
  • Frequency: 50/60 Hz
  • Volume: 0.503 Liter
  • Type: EKC 202C
  • Weight: 0.57lbs

PRODUCT OVERVIEW:
The electronic refrigeration controller regulates temperature and coordinates compressor, fan, and defrost operations in refrigeration equipment. The Danfoss 084B8523 is an OEM EKC 202C controller designed for refrigeration systems using thermostatic expansion valves (TXV). It operates on a 230 VAC supply at 50/60 Hz and features four relay outputs, two temperature sensor inputs, and a digital input. Its control functions support temperature regulation and electric defrost management in commercial refrigeration applications.

REFRIGERATION AND DEFROST CONTROL:
The EKC 202C monitors temperature signals from connected sensors and uses the programmed control settings to regulate refrigeration operation. Its four outputs support control functions such as refrigeration, electric defrost, fan operation, and alarm signaling. The controller can manage one compressor and one evaporator, with operating sequences determined by the configured parameters. This arrangement coordinates cooling and defrost cycles to maintain the required refrigeration conditions.

REPLACEMENT GUIDELINES:
Replace the Danfoss 084B8523 when the controller fails to display temperature readings, respond to connected sensor inputs, or regulate refrigeration and defrost operation correctly. Replacement may also be necessary when the display, internal control circuitry, or relay outputs become faulty and interrupt the intended refrigeration control sequence.

COMMON FAILURE SYMPTOMS:

  • Incorrect or unstable refrigeration temperature
  • Compressor fails to operate according to temperature demand
  • Electric defrost cycle fails to activate
  • Evaporator fan does not respond to control commands
  • Incorrect temperature readings or sensor error indications
  • Controller display fails to operate

EQUIPMENT COMPATIBILITY:
The Danfoss 084B8523 is designed for commercial refrigeration appliances and evaporator control applications using thermostatic expansion valves. It supports systems with one compressor and one evaporator and provides control functions for refrigeration, electric defrost, fan operation, and alarms. It accepts NTC-M2020, PTC 1000, and Pt 1000 temperature sensors. Optional communication modules allow integration with MODBUS or LON RS485 networks. Verify the existing controller model, sensor configuration, electrical supply, and required control functions before replacement.

TECHNICAL SPECIFICATIONS:
Technical Specifications:
Brand: Danfoss
Part Number/SKU: 084B8523
Product Type: Electronic Refrigeration Controller
Model: EKC 202C

Write Your Own Review
You're reviewing:Danfoss 084B8523 Temperature Control EKC202C
Your Rating
Customer Questions
What is the Danfoss 084B8523 EKC 202C controller used for?

It controls temperature and refrigeration operating functions in commercial refrigeration equipment, including compressor operation, electric defrost, fan control, and alarm functions.

What are the electrical requirements of the Danfoss EKC 202C?

The controller requires a 230 VAC electrical supply and operates at either 50 Hz or 60 Hz. Its listed power consumption is 2.5 VA.

Which temperature sensors can be used with the Danfoss 084B8523?

The controller supports NTC-M2020, PTC 1000, and Pt 1000 temperature sensors. The sensor type must match the configured controller settings and application requirements.

Which Danfoss communication modules and accessories can be used with the EKC 202C?

The documented accessories include EKA 178A (084B8564) for MODBUS communication, EKA 179A (084B8565) for RS485-LON communication, EKA 181C (084B8577) for clock backup during power interruptions, EKA 182A (084B8567) for copying settings between EKC controllers, and EKA 183A (084B8582) as a programming key. These are separate accessories, not replacement controllers.

Can the EKC 202C control multiple compressors or evaporators?

The controller is specified for a maximum of one compressor and one evaporator. Its four outputs provide different control functions, but they do not indicate support for four compressors or four evaporators.
