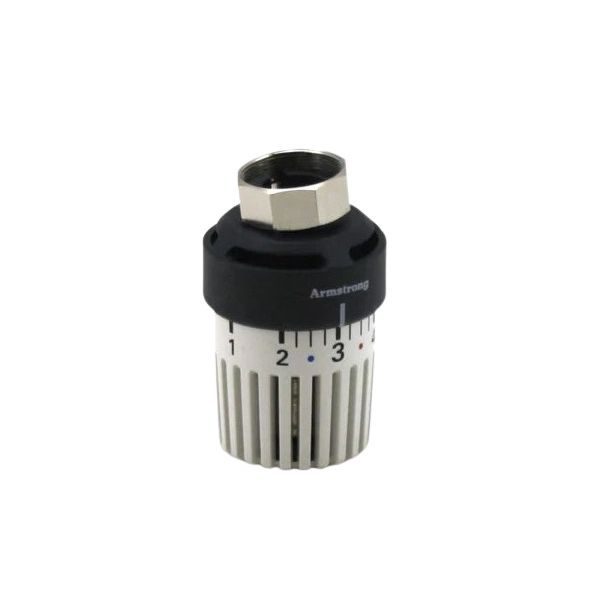

Armstrong International D24660 Thermostatic Operator LV-4

Special Price $96.29 Regular Price $110.73
In stock
SKU
D24660
The Armstrong International D24660 LV-4 Thermostatic Operator is an effective equipment to regulate temperature in heating and cooling systems, especially in boilers and steam generators. This thermostatic operator has a 4-inch connection type and performs well in hot water and low-pressure steam applications to provide the better performance in hydronic systems. They include accurate control of temperature, increased energy conservation, and better thermal comfort in several HVAC systems such as the radiator and heat exchanger. The LV-4 model is highly resistant and can be easily installed in residential and commercial buildings for heating solutions, energy conservation, and maintaining consistent temperature.
https://www.partshnc.com/media/catalog/product/d/2/d24660.jpg

Specifications

  • Type: Thermostatic operator
  • Connection Type: 4"
  • Applications: Heating & Cooling Systems, Boilers & Steam Generators

Product Overview:
Consistent heat distribution in hydronic radiator systems depends on the ability of individual radiator valves to respond to changes in surrounding room temperature. The Armstrong International D24660 Thermostatic Operator LV-4 is an OEM-designated component designed for use with corresponding radiator valve assemblies. These Thermostatic operators support this process by automatically regulating radiator valve operation according to the selected temperature setting. This operator uses a liquid-sensing thermostatic mechanism to respond to room-temperature changes and regulate heating-medium flow through the radiator.

Thermostatic Operation:
Uses a liquid-filled sensing mechanism that responds to changes in surrounding air temperature. As the temperature rises or falls, changes in the sensing liquid's volume produce mechanical movement within the operator. This movement acts on the associated radiator valve mechanism, adjusting the valve position and controlling the amount of heating medium entering the radiator. As room temperature approaches the selected setting, the operator moves the valve toward a more restricted position.

Temperature Control:
Provides adjustable room-temperature settings from approximately. This adjustment range allows the operator to regulate radiator heat output according to the desired room temperature rather than relying on a fixed valve position. The operator also includes provisions for limiting upper and lower temperature settings or locking the adjustment at a preset position.

Replacement Guidelines:
Replacement of the Armstrong International D24660 Thermostatic Operator may be necessary when it fails to respond to room-temperature changes, cannot regulate the associated radiator valve, develops inconsistent temperature control, or has a damaged adjustment mechanism. A qualified technician should inspect the operator and radiator valve assembly to determine whether the fault originates in the thermostatic operator, valve insert, dirt accumulation, or restricted heating-medium circulation.

Common Failure Symptoms:

  • Radiator continues delivering heat after the selected room temperature has been reached.
  • Radiator provides insufficient heat despite a higher temperature setting.
  • Temperature adjustment produces little or no change in radiator heat output.
  • Operator responds inconsistently to surrounding room-temperature changes.
  • Room-temperature regulation becomes unreliable, resulting in noticeable temperature fluctuations.
  • Operator adjustment mechanism becomes stuck or cannot maintain the selected setting.

Equipment Compatibility:
The Armstrong International D24660 is an OEM-designated LV-4 thermostatic operator intended for the corresponding thermostatic radiator valve assembly. Its liquid-sensing configuration is an important product-identification characteristic when distinguishing it from other LV-4 operator variations, including remote-sensor and wall-mounted configurations. Confirm the original part number, operator configuration, and associated radiator valve assembly before purchasing.

Technical Specifications:
Brand: Armstrong International
Part Number: D24660
Product Type: Thermostatic Operator
Operator Model: LV-4

Write Your Own Review
You're reviewing:Armstrong International D24660 Thermostatic Operator LV-4
Your Rating
Customer Questions
What maintenance is required for the Armstrong International D24660 Thermostatic Operator?

Inspect the thermostatic sensing element and ensure it is clean and free from scale or debris. Check calibration and valve response regularly to maintain accurate control. Tighten electrical and mechanical connections, and follow safety lockout procedures during servicing.

What are common issues with the Armstrong International D24660 Thermostatic Operator?

  • Inaccurate temperature regulation due to sensor drift.
  • Valve sticking or sluggish operation under load.
  • Delayed response to temperature changes.
  • Leakage around seals or actuator housing.
  • Loss of calibration causing unstable control.

How can I identify the correct Armstrong LV-4 replacement operator?

Check the identification on the existing operator for the Armstrong International D24660 part number and LV-4 designation. Also compare the mounting arrangement and liquid-sensing configuration to distinguish it from other operator variations.

Can the Armstrong LV-4 temperature adjustment be locked or restricted?

Yes. The operator includes provisions for limiting upper and lower temperature settings or locking the adjustment at a preset temperature. This feature is useful where occupants should not have unrestricted control over radiator temperature settings.

What maintenance should be performed on the Armstrong International D24660 LV-4 Thermostatic Operator?

Periodically check the operator for unobstructed exposure to room air, smooth temperature adjustment, and visible damage. Keep curtains, furniture, radiator covers, and other obstructions from interfering with temperature sensing.

Can the Armstrong International D24660 be used in steam applications?

Yes. The LV-4 thermostatic operator is listed for applications involving hot water and low-pressure steam, subject to the operating requirements of the associated valve assembly.

What maintenance practices help extend the service life of the D24660?

Periodically inspect the operator and sensing components for wear, contamination, corrosion, or damage. Check valve movement and temperature response to help maintain reliable operation.

Installation Steps

Step 1: Shut off steam/water supply and depressurize system; ensure system is cool before handling.

Step 2: Remove existing operator or cap, clean valve bonnet threads and inspect seating surface.

Step 3: Align new thermostatic operator and thread onto valve body; tighten to manufacturer torque spec.

Step 4: Set desired temperature range using adjustment dial per specification.

Step 5: Restore pressure gradually, slowly check for leaks, test operation and adjust if needed.
