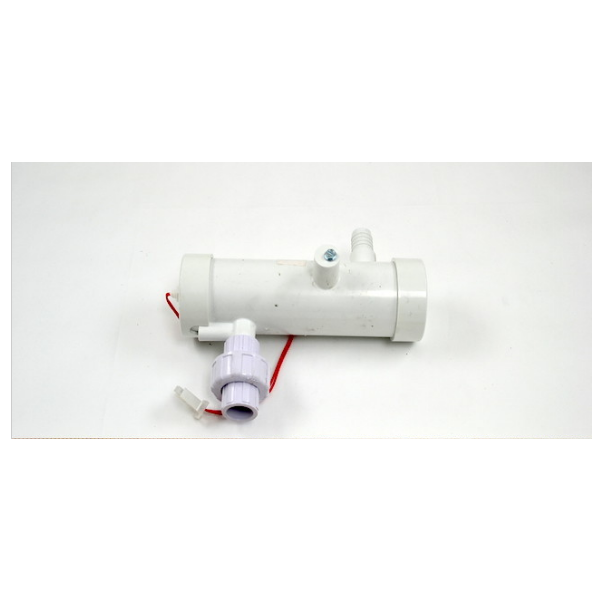

Lochinvar & A.O. Smith 100163241 Condensate Drain Pan Trap 8-1/2" X 11"

Be the first to review this product
Special Price $297.84 Regular Price $330.60
In stock
SKU
100163241
The Lochinvar & A.O. Smith 100163241 is a Condensate Trap which is an essential part that is intended for condensing boilers and water heaters. This trap gathers and drains out condensate that may be formed during combustion and disposes it safely to avoid accumulation which may affect the performance of the equipmentIt complements Lochinvar and A.O. Smith HVAC systems, it offers sufficient drainage, increases product life and efficiency. These are; safeguarding against corrosion and leakage, safe working and enhanced efficiency of heating systems. It is used in high-efficiency units, and it assists in preventing them from being ruined by moisture.
Add to Wish List
Refrigeration & Cooling, Condensate Drain Pans
Manufacturer:

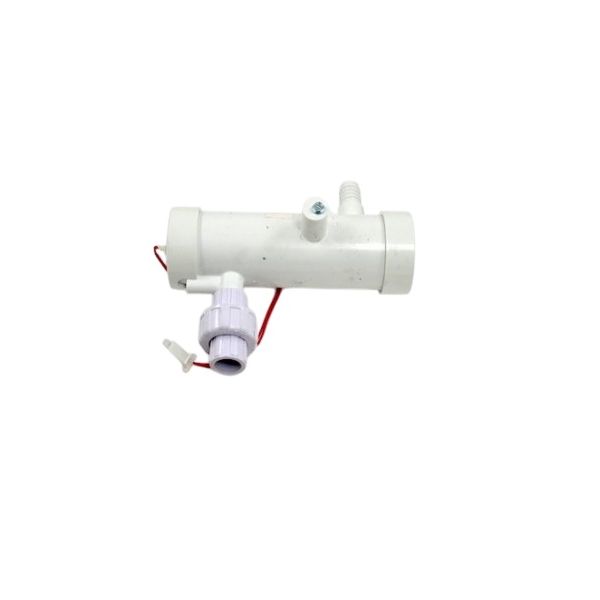

https://www.partshnc.com/media/catalog/product/1/0/100163241.jpg

Specifications

  • Type: Condensate Trap Kit
  • Dimensions: 8.5" x 11"
  • Material: Plastic
Manufacturer Name: Lochinvar & A.O. Smith
Product Number: 100163241
OEM Part Number: 100163241
Product Description: Condensate Trap
Weight:0.87lbs/394.63g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Lochinvar & A.O. Smith 100163241 Condensate Drain Pan Trap 8-1/2" X 11"
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Lochinvar & A.O. Smith 100163241 Condensate Drain Pan Trap?

Inspect the condensate drain pan trap regularly for blockages caused by sludge, algae, or debris buildup. Clean the drain path to ensure proper water flow and prevent overflow. Verify correct sealing at connections to avoid air leaks. Ensure proper alignment so condensate drains efficiently without backup.

What are common issues with the Lochinvar & A.O. Smith 100163241 Condensate Drain Pan Trap?

  • Clogging from sludge or debris buildup.
  • Water backup due to restricted drainage
  • Air leaks from loose or worn connections.
  • Cracks or brittleness in trap material.
  • Improper slope causing slow drainage.

Installation Steps

Step 1: Turn off power to the system and allow unit to cool fully before starting.

Step 2: Remove access panel and locate existing drain trap assembly.

Step 3: Disconnect drain line and carefully remove the old trap.

Step 4: Clean drain connection points to remove buildup or debris.

Step 5: Position new drain pan trap in correct alignment and secure fittings tightly.

Step 6: Reconnect drain line, confirm proper slope, and check for leaks during operation.
