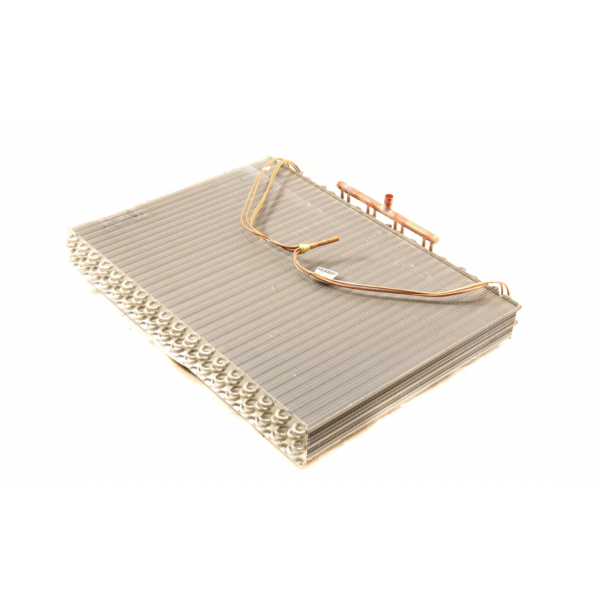

Climate Master 61B0161N70 Evaporator Coil 36" X 25" 4-Row Tin-Coated Assembly

Rating:
5 5 1
1  Review Add Your Review
Special Price $1,131.29 Regular Price $1,731.95
In stock
SKU
61B0161N70
The ClimateMaster 61B0161N70 Evaporator Coil is a heat-exchange element that takes in the heat in the air as the refrigerant moves through the cooling circuit. The refrigerant in the coil tubing evaporates and cools the air passing over the finned surface applied in the HVAC systems. The coil assembly is attached to the refrigerant lines and is connected to the air handling part where system airflow is directed over the heat-transfer surface. It is located in the refrigerant pathway that allows it to absorb heat during the cooling process and is located within the indoor unit or air handler.
Add to Wish List
HVAC Accessories, Condensers & Evaporators
Manufacturer:
https://www.partshnc.com/media/catalog/product/6/1/61b0161n70.png
Write Your Own Review
You're reviewing:Climate Master 61B0161N70 Evaporator Coil 36" X 25" 4-Row Tin-Coated Assembly
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the ClimateMaster 61B0161N70 Evaporator Coil?

Regularly inspect the coil for dust, debris, or bent fins, and clean with a soft brush or approved coil cleaner. Ensure the system is powered off during maintenance. Check for refrigerant leaks and frost buildup to prevent efficiency loss and system damage.

What are common issues with the ClimateMaster 61B0161N70 Evaporator Coil?

  • Reduced cooling efficiency due to dirt buildup.
  • Corrosion or pitting of tin-coated surfaces.
  • Leaks in refrigerant lines.
  • Airflow restrictions from bent or clogged fins.

Installation Steps

Step1: Turn off power and recover refrigerant from the system safely.

Step2: Remove the access panel and disconnect refrigerant lines and electrical connectors.

Step3: Unscrew and remove the old evaporator coil assembly.

Step4: Position the new coil housing in place and secure with screws.

Step5: Reconnect refrigerant lines and electrical connections per specs.

Step6: Vacuum, recharge refrigerant, restore power, and test cooling operation.
