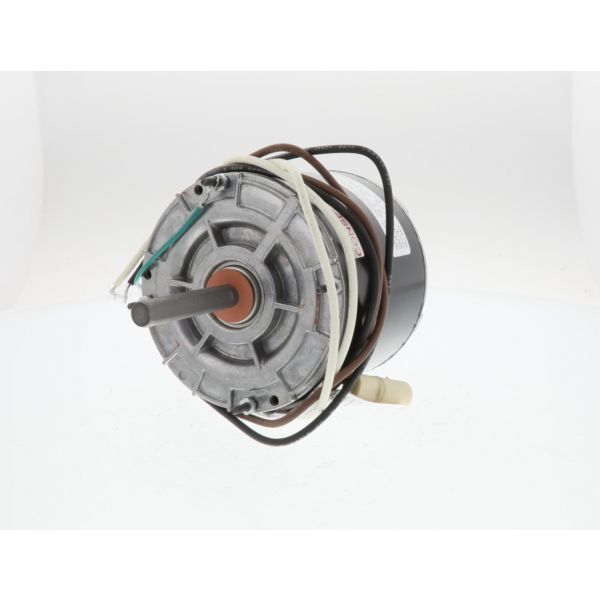

Century Motors 9723 1-Phase Condenser Fan Motor 1/4 1/5 1/6Hp 208-230V

The Century Motors 9723 is a multi-horsepower condenser fan motor designed for efficient airflow management in residential and light commercial air conditioning systems. Operating on a standard voltage range of 208-230 volts AC at 60Hz, it offers adaptability for various electrical configurations. This motor packs a surprising punch for its weight of 12 lbs, delivering variable horsepower depending on the specific model. The range typically falls between 1/6 horsepower for quiet operation to 1/4 horsepower for maximum airflow. The 9723 functions specifically as an outdoor condenser fan motor. As the workhorse responsible for pulling air across the hot condenser coils of your AC unit. Here, it directly connects to the outdoor fan blade assembly. When energized, the motor shaft rotates at a constant speed of 1075 RPM (Revolutions Per Minute), driving the fan blades and efficiently pulling air through the condenser coils. This airflow is critical for the air conditioning process, as it helps dissipate heat absorbed from your living space by the refrigerant. The warm air is pulled across the condenser coils, where it exchanges heat with the cooler refrigerant, and then expelled outdoors. Replacing a worn-out Century Motors 9723 motor can significantly improve the efficiency of your air conditioning system. The variable horsepower design allows the system to adjust airflow based on cooling needs. During peak cooling periods, the higher horsepower setting for maximum heat dissipation. Conversely, during moderate weather, the lower horsepower setting might be sufficient, reducing noise and energy consumption. Be sure to consult your specific unit's manual for compatibility information and details on the horsepower range of your particular motor.
