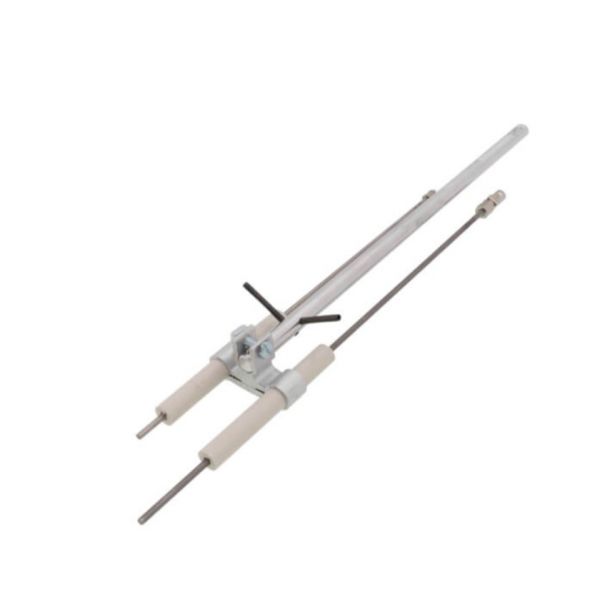

Carlin 98572AS 10" Ignitor Electrode/Flame Rod Assembly

Special Price $78.61 Regular Price $90.41
In stock
SKU
98572AS
The Carlin 98572AS 10" Ignitor Electrode/Flame Rod Assembly is a combination part that is applied in gas-fired HVAC systems. It combines an electrode forming the spark of ignition and a flame rod detecting the existence of flame, and transmits a signal to the control board to confirm that it has successfully combusted. It is mounted in the burner assembly of the compatible residential and commercial heating systems in the combustion chamber with the burner ports. In the system, it assists in the flame confirmation and correct sequencing of the burners to operate efficiently in heating.
https://www.partshnc.com/media/catalog/product/9/8/98572as_1.jpg

Specifications

  • Type: Ignitor Electrode/Flame Rod Assembly
  • Size: 10"
Write Your Own Review
You're reviewing:Carlin 98572AS 10" Ignitor Electrode/Flame Rod Assembly
Your Rating
Customer Questions
What maintenance is required for the Carlin 98572AS Ignitor Electrode/Flame Rod Assembly?

Regularly inspect the electrode and flame rod for carbon buildup, cracks, or corrosion. Clean gently to maintain proper spark and flame sensing. Ensure wiring is secure and correctly positioned. Proper care ensures accuignition and safe burner operation.

What are common issues with the Carlin 98572AS Ignitor Electrode/Flame Rod Assembly?

  • Failure to ignite burner or delayed ignition.
  • Weak or inconsistent spark generation.
  • Flame not detected by control system.
  • Cracked ceramic insulator or damaged rod.

How does the Carlin 98572AS Ignitor Electrode/Flame Rod Assembly support burner operation?

It combines spark ignition and flame detection, helping establish the burner flame and confirm its presence during continued operation.

How does the flame rod in the Carlin 98572AS verify successful ignition?

It detects the established flame through flame rectification and sends an electrical signal to the burner control system for flame supervision.

Which burners are compatible with the Carlin 98572AS 10-inch assembly?

It is intended for compatible Carlin EZGAS PRO burner applications requiring this specific combination ignition and flame-sensing component. Verify the complete burner identification before ordering.

What should be checked before purchasing the Carlin 98572AS replacement assembly?

Confirm the existing part number, 10-inch configuration, and complete burner identification against Carlin manufacturer replacement parts documentation.

What burner problems may indicate a faulty 98572AS ignitor and flame rod?

Repeated ignition attempts, intermittent ignition, burner shutdown shortly after startup, or flame-sensing lockouts may indicate electrode or flame-detection problems. A qualified technician should inspect the assembly, wiring, and burner positioning before replacement.

Installation Steps

Step 1: Turn off power and gas supply to the burner for safety.

Step 2: Remove the old ignitor electrode/flame rod assembly carefully.

Step 3: Insert the new assembly into the correct mounting position.

Step 4: Secure the assembly with the provided screws or brackets.

Step 5: Reconnect all wiring according to the manufacturer’s instructions.

Step 6: Restore power and gas, then test for proper ignition and flame detection.
