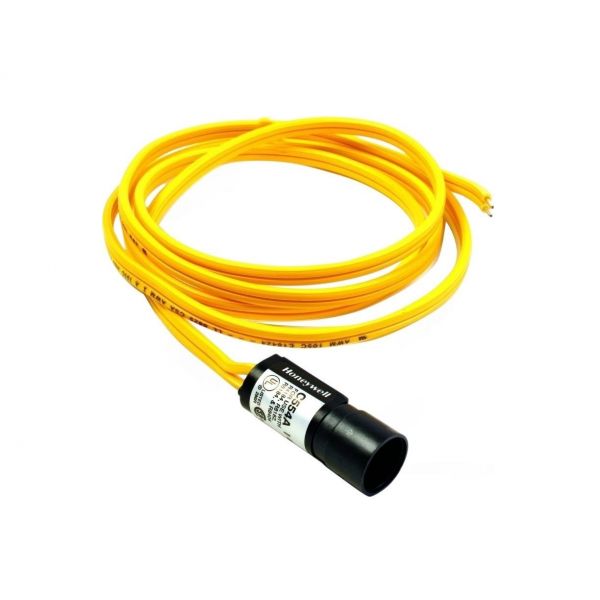

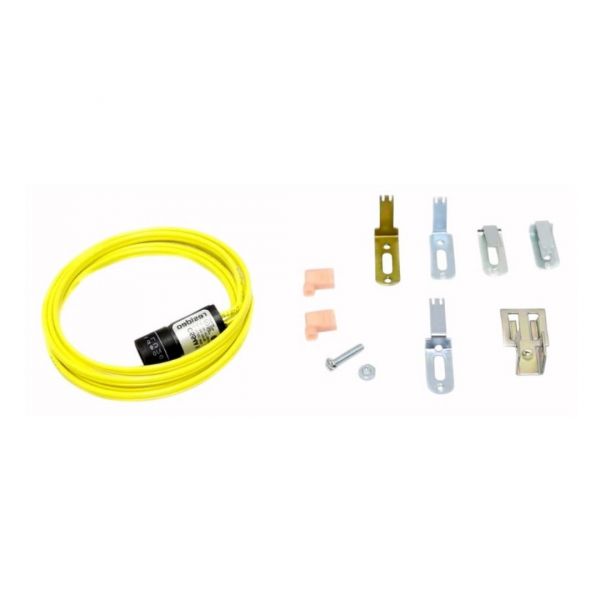

Resideo C554A1463 Cadmium-Sulfide Flame Detector For Oil Burner System

Special Price $49.41 Regular Price $64.23
In stock
SKU
C554A1463
The Resideo C554A1463 Flame Detector is a safety element that is intended for oil burner systems, in HVAC equipment including residential and light commercial furnaces and boilers. It works by sensing the presence of a flame that detects visible light emitted from the oil burner flame. If a flame is not detected, the system can safely turn off the burner to avoid fuel and harmful conditions. This detector increases the level of operational safety and efficiency and supports adherence to safety standards. Compact design and fast response time make it suitable for retrofit or HVAC system applications, providing reliable flame monitoring and contributing to the stable performance of the heating systems.
https://www.partshnc.com/media/catalog/product/c/5/c554a1463.jpg

Specifications

  • Range of Temperature: 140°F
  • Voltage/Electrical:60VDC,60VAC
  • Ignition Type: Intermittent Spark
  • Fuel Type: Oil
  • Product Type: Controls
  • Revolution Per Minute: 1075Rpm
  • Horspower: 1/2Hp

Product Overview:
Detects light produced by an oil burner flame and provides flame-status information to the associated burner control. The Resideo C554A1463 Cadmium Sulfide Flame Detector 60" Lead is an OEM flame-sensing component that uses a cadmium-sulfide cell to support flame monitoring during burner operation.

Cadmium-Sulfide Flame Detection:
The cadmium-sulfide cell detects light generated by the oil burner flame and changes its electrical characteristics in response to the detected flame intensity. This change produces the flame-sensing signal used by the corresponding oil primary control. The sensing element responds to the visible light produced during burner operation. Its photoconductive action allows the control to receive an electrical indication corresponding to flame presence in sequencing oil burner systems.

Replacement Guidelines:
Replace the Resideo C554A1463 Flame Detector when it no longer provides a reliable flame-sensing signal to the associated oil burner control or when deterioration affects its ability to detect burner flame light. Replacing the detector restores the flame-sensing function required by the corresponding oil primary control for monitoring flame presence during burner operation.

Common Failure Symptoms:

  • Failure of the primary control to recognize an established burner flame
  • Burner shutdown associated with unreliable flame detection
  • Inconsistent flame-proving response during burner operation
  • Physical damage to the detector, sensing cell, or leadwire.

Equipment Compatibility:
The C554A1463 Flame Detector is designed for oil burner systems that use a cadmium-sulfide flame detector for flame sensing. It works as part of the burner control system to provide flame-presence information during operation. Compatibility should be verified against the specific equipment configuration, including the leadwire length and mounting bracket type, before selecting this flame detector.

Technical Specifications:
Brand: Resideo
Part Number: C554A1463
Product Type: Cadmium Sulfide Flame Detector
Sensing Type: Photoconductive Flame Sensing
Leadwire Length: 60"

Write Your Own Review
You're reviewing:Resideo C554A1463 Cadmium-Sulfide Flame Detector For Oil Burner System
Your Rating
Customer Questions
What does a cadmium-sulfide flame detector sense in an oil burner system?

The flame detector senses the visible light produced by the oil burner flame. Its electrical resistance changes with the detected light, which gives the associated oil primary control a flame-presence signal.

What does the 60" lead refer to on the Resideo C554A1463?

The 60" lead is the leadwire length of the Resideo C554A1463 Cadmium Sulfide Flame Detector.

What indicates that the Resideo C554A1463 needs replacement?

Failure of the primary control to recognize an established flame, burner shutdown from unreliable flame detection, or physical damage to the detector or leadwire indicates that the Resideo C554A1463 needs replacement.

How is compatibility confirmed for the Resideo C554A1463?

Compatibility is confirmed by matching the Resideo part number, cadmium-sulfide sensing type, 60" leadwire length, and Type R mounting bracket against the equipment's original documentation.

What does the Type R mounting bracket on the Resideo C554A1463 indicate?

The Type R designation identifies the mounting bracket type of the Resideo C554A1463 Cadmium Sulfide Flame Detector, which must match the mounting arrangement of the burner where the detector is installed.
