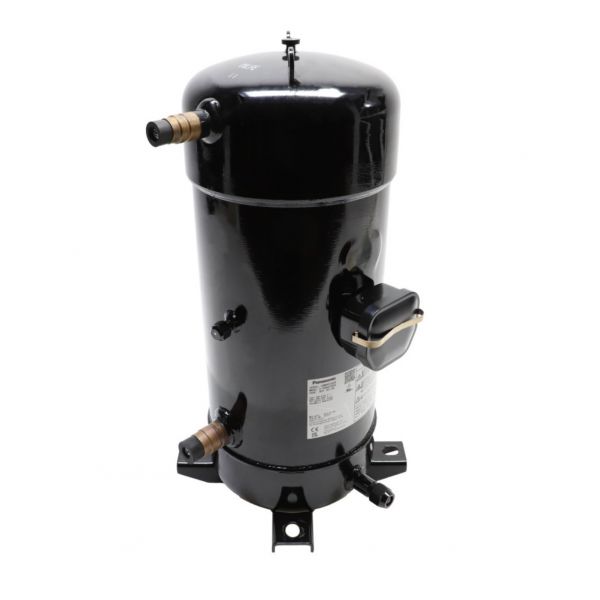

Sanyo C-SCN603H8K 8HP Scroll Compressor R407C 440/460V 3-Phase

Special Price $4,842.22 Regular Price $5,374.87
In stock
SKU
C-SCN603H8K
The Sanyo C-SCN603H8K is a powerful scroll compressor designed for commercial HVAC applications. Scroll compressors use interlocking spiral scrolls to efficiently compress refrigerant. This compressed refrigerant is then circulated throughout the system, providing heating or cooling. The C-SCN603H8K's high capacity of 24.5 kW, translating to roughly 8 horsepower, makes it suitable for large buildings and commercial spaces. Its durable construction and efficient operation ensure reliable climate control. However, it requires professional installation due to its high voltage range of 440-460V and weight of 145lbs.
Manufacturer:
https://www.partshnc.com/media/catalog/product/c/-/c-scn603h8k.jpg

Specifications

  • Capacity: 24.5 kW
  • Horsepower: 8 HP
  • Weight: 145lbs
  • Dimensions: 20.5 inches x 24 inches x 13.5 inches
  • Voltage: 440-460V

Commercial air-conditioning and refrigeration systems depend on compressors to maintain refrigerant circulation and the pressure conditions required for cooling. The Sanyo C-SCN603H8K is a genuine OEM scroll compressor designed for compatible cooling equipment. It performs the compression stage of the refrigeration cycle by increasing refrigerant vapor pressure before discharge into the cooling circuit. This process supports refrigerant movement through the system and helps maintain the heat-transfer conditions required for cooling operation.

SCROLL COMPRESSION MECHANISM:
The Sanyo C-SCN603H8K uses two interleaved spiral-shaped scroll elements to compress refrigerant vapor. One scroll remains stationary while the other moves in an orbital motion around it. This movement creates enclosed pockets that trap incoming low-pressure refrigerant vapor. As these pockets move toward the center of the scroll assembly, their volume progressively decreases, increasing refrigerant pressure. The compressed vapor is then discharged into the refrigeration circuit for the next stage of the cooling process.

COMPRESSOR CAPACITY AND REFRIGERATION APPLICATION:
The 8HP rating identifies the compressor's specified horsepower and provides a reference for matching it with the requirements of the intended cooling equipment. The compressor is designed for R407C refrigerant applications, where refrigerant compression supports the movement of the working fluid through the refrigeration circuit. Selecting the appropriate compressor capacity and application configuration helps maintain the operating requirements of the associated air-conditioning or refrigeration system.

REPLACEMENT GUIDELINES:
Replacement may be necessary when the C-SCN603H8K develops a confirmed mechanical or electrical fault, exhibits abnormal operating conditions, or can no longer provide the required compression performance. Before ordering, compare the existing part number with the equipment requirements and verify the applicable specifications.

COMMON FAILURE SYMPTOMS:

  • Compressor fails to start when cooling is requested
  • Unusual knocking, grinding, or rattling noises during operation
  • Excessive vibration from the compressor assembly
  • Compressor overheats or repeatedly activates electrical protection
  • Visible oil leakage around the compressor housing or connections

EQUIPMENT COMPATIBILITY:
The Sanyo C-SCN603H8K Scroll Compressor is intended for compatible air-conditioning and refrigeration equipment requiring the corresponding compressor configuration. To confirm compatibility, compare the existing compressor part number and complete equipment model with the original equipment manufacturer's parts documentation before ordering.

TECHNICAL SPECIFICATIONS:
Product Identification:
Brand: Sanyo
Part Number: C-SCN603H8K
Product Type: Scroll Compressor
Application: Air Conditioning and Refrigeration
Performance Specifications:
Horsepower: 8 HP
Electrical Specifications:
Voltage: 440/460V
Phase: 3-Phase
Mechanical Specifications:
Horsepower: 8 HP
Refrigerant Specifications:
Refrigerant: R407C

Write Your Own Review
You're reviewing:Sanyo C-SCN603H8K 8HP Scroll Compressor R407C 440/460V 3-Phase
Your Rating
Customer Questions
What maintenance is required for the Sanyo C-SCN603H8K Compressor?

Regularly inspect the compressor housing, electrical connections, and refrigerant lines for leaks or damage. Clean the coils and ensure proper lubrication of moving parts. Monitor pressure and temperature levels to maintain performance. Follow safety protocols when handling high-voltage components and refrigerants.

What are common issues with the Sanyo C-SCN603H8K Compressor?

  • Refrigerant leaks reducing cooling efficiency.
  • Overheating due to restricted airflow or ventilation.
  • Electrical connection failures or shorts.
  • Excessive vibration or unusual operational noise.

What is the Sanyo C-SCN603H8K 8HP Scroll Compressor used for?

The Sanyo C-SCN603H8K is a scroll compressor designed to compress refrigerant vapor and support refrigerant circulation in compatible air-conditioning and refrigeration systems.

How does the scroll mechanism in the C-SCN603H8K work?

It uses stationary and orbiting spiral-shaped scroll elements to trap refrigerant vapor in enclosed pockets. These pockets progressively decrease in volume, increasing refrigerant pressure before discharge.

Which refrigerant is specified for the Sanyo C-SCN603H8K?

The compressor is specified for R407C refrigerant. The intended refrigeration system must be designed for this refrigerant.

How can I identify the correct replacement for the C-SCN603H8K?

Check the existing compressor's C-SCN603H8K part number and compare its horsepower, compressor type, refrigerant, and electrical requirements with the original equipment manufacturer's parts documentation.

What should I check if the C-SCN603H8K compressor develops abnormal noise or vibration?

Have the compressor mounting, electrical supply, operating conditions, and refrigeration system inspected by a qualified technician. These symptoms can have several mechanical or system-related causes and do not automatically confirm compressor failure.

Installation Steps

Step 1: Turn off power to the HVAC system and verify voltage compatibility.

Step 2: Secure the compressor on a stable, vibration-free surface.

Step 3: Connect the refrigerant lines tightly to prevent leaks.

Step 4: Wire the compressor to the power supply following electrical codes.

Step 5: Check all connections, restore power, and run a test cycle to confirm operation.

Step 6: Wear protective gear and handle refrigerants carefully to ensure safety.
