Bradford White 415-52944-01 Natural Gas Control Valve Kit

Special Price $282.05 Regular Price $313.08
In stock
SKU
415-52944-01
The Bradford White 415-52944-01 Gas Control Valve NAT Kit is a natural gas assembly used in compatible heating components to regulate and distribute gas flow to the burner system. Installed in HVAC systems, it manages the delivery of fuel based on control inputs from the ignition and safety circuit, ensuring proper burner operation during heating cycles. It is commonly used in residential and light commercial water heaters and boiler applications where precise gas regulation is required for stable combustion. Within the system it supports fuel flow control coordinates burner activation and maintain consistent heating performance during normal operation.

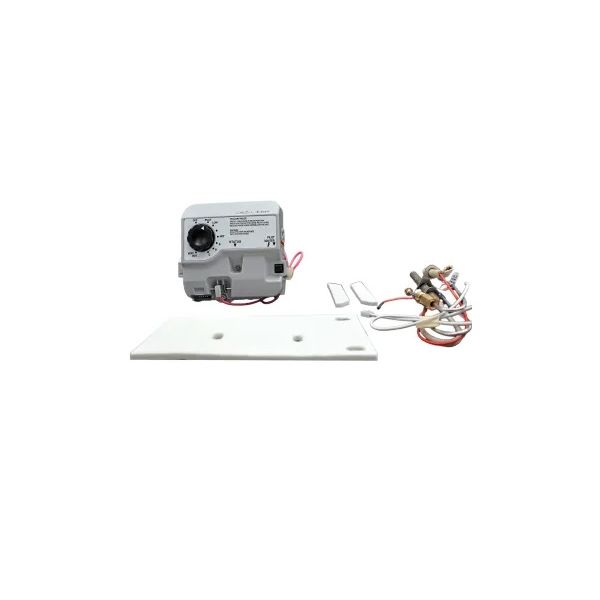

https://www.partshnc.com/media/catalog/product/4/1/415-52944-01.jpg

Specifications

  • Type: Gas Control Valve Nat

    PRODUCT OVERVIEW:
    Gas control valves regulate fuel delivery to burner assemblies while serving as a primary thermostatic control and safety shut-off interface. The Bradford White 415-52944-01 Natural Gas Control Valve Kit is an OEM component designed to manage fuel flow in compatible natural gas water heaters. This valve modulates internal passage openings based on tank water temperature demands and electrical safety signals. By enabling controlled fuel passage during active calls for heat and stopping gas flow upon reaching temperature setpoints, the unit supports safe combustion and reliable water heater operation.

    AUTOMATIC FUEL REGULATION AND THERMOSTATIC SENSING:
    An internal thermostatic sensing probe monitors water temperature inside the storage tank to control valve seat actuation. When stored water temperature drops below the dialed setpoint, the internal control mechanism signals the gas valve seat to open against spring tension, allowing natural gas to flow through the manifold to the main burner. Once the water reaches the setpoint temperature or if a thermal limit opens, the valve mechanism releases, allowing the heavy-duty spring to snap the internal valve seat closed instantly to isolate the fuel supply.

    COMBUSTION TRAIN SYSTEM INTEGRATION:
    The gas valve operates along the internal water heater fuel line upstream of the burner manifold assembly, serving as a central safety interlock and user interface. Natural gas enters through the inlet connection, passes across the internal regulating seat, and exits into the burner manifold at precise operating pressures. The valve works continuously with high-limit thermal cutouts and flame-sensing controls, preventing unburned gas accumulation in the combustion chamber during startup or operating fault conditions.

    REPLACEMENT GUIDELINES:
    Component replacement is necessary when the valve fails to open on a call for heat, allows gas leakage when de-energized, or suffers internal thermostatic sensor failure. Malfunctioning gas control valves prevent proper ignition, cause water temperature overheating, or present serious fuel leakage hazards. Qualified technician assistance is recommended for gas line connections, leak testing, and temperature calibration. Before purchasing, verify the part number and all relevant specifications against the original equipment documentation to ensure the replacement matches the system requirements.

    COMMON FAILURE SYMPTOMS:

    • Main burner fails to ignite or maintain a flame during an active call for heat despite verified pilot operation.
    • Water heater overheats continuously or fails to shut off gas flow when the target setpoint temperature is reached.
    • Gas odor or unburned fuel flow detected around the valve body housing or manifold connection joints.
    • Status indicator LED displays persistent error lockouts or gas valve thermostatic failure codes.
    • Physical cracking, thread galling, or severe oxidation on the gas valve body housing.

    EQUIPMENT COMPATIBILITY:
    The Bradford White 415-52944-01 is intended for compatible Bradford White natural gas water heaters requiring an OEM gas control valve kit. Confirm the part number, fuel type (Natural Gas), and relevant specifications against the original equipment documentation before selecting a replacement. For exact compatible equipment models, refer to the manufacturer's documentation. Do not assume compatibility based on the manufacturer name alone.

    TECHNICAL SPECIFICATIONS:
    Product Identification:
    Brand: Bradford White
    Part Number: 415-52944-01
    Component Type: Gas Control Valve Kit

    Write Your Own Review
    You're reviewing:Bradford White 415-52944-01 Natural Gas Control Valve Kit
    Your Rating
    Customer Questions
    What maintenance is required for the Bradford White 415-52944-01 Control Valve Kit?

    Regularly inspect the valve for leaks, corrosion, or dirt buildup. Ensure all gas and electrical connections are secure. Clean components carefully and test proper operation periodically. Always turn off the gas supply and power before performing maintenance.

    What are common issues with the Bradford White 415-52944-01 Control Valve Kit?

    • Failure to open or close properly.
    • Gas leaks at connection points.
    • Erratic or inconsistent gas flow.
    • Corrosion or debris interfering with operation.

    What is the primary function of the Bradford White 415-52944-01 gas control valve kit?

    The valve automatically regulates natural gas flow to the water heater burner based on tank water temperature demands and safety limit status.

    Which equipment utilizes the Bradford White 415-52944-01 control valve kit?

    This OEM replacement kit is designed specifically for select compatible Bradford White natural gas water heaters matching part number 415-52944-01.

    What failure signs indicate that a gas control valve kit requires replacement?

    Key indicators include a main burner that will not ignite, uncontrolled water overheating, gas leaks around valve threads, or continuous error codes.

    Is this control valve kit compatible with Liquid Propane (LP) gas?

    No, the Bradford White 415-52944-01 kit is engineered and rated exclusively for Natural Gas water heater applications.

    What steps should be completed prior to replacing a water heater gas valve?

    Verify the part number in official appliance manuals, turn off the main gas supply line, drain the water heater tank below the valve level, and arrange for a qualified technician to perform installation and leak testing.

    Installation Steps

    Step 1: Turn off gas supply and power to the appliance to ensure safety.

    Step 2: Remove the existing gas control valve carefully, noting all connections.

    Step 3: Clean the valve mounting area and inspect for debris or damage.

    Step 4: Install the new control valve kit, reconnecting all gas and electrical connections securely.

    Step 5: Check all joints for leaks using approved leak detector.

    Step 6: Restore gas and power, then test the water heater for proper operation.
