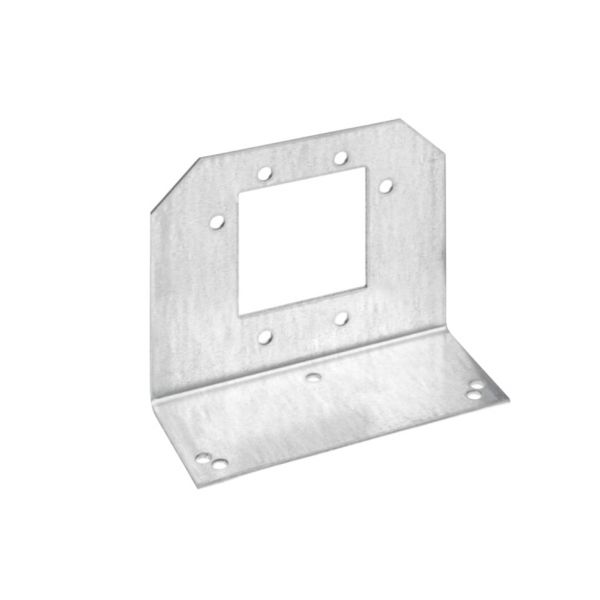

Belimo ZG-113 TFB(X) Right Angle Bracket

The Belimo ZG-113 Right Angle Bracket is a mechanical mounting component used to support and position TFB(X)-series actuator assemblies on damper or valve structures. It provides a rigid interface that allows the actuator to be installed in an offset orientation while maintaining proper alignment with the drive shaft. Constructed for use in HVAC systems, it is typically applied where direct mounting is due to space or layout constraints. It includes standardized hole patterns for retrofit compatibility with common actuators, supporting stable installation, reduced vibration transfer, and consistent positioning during operation.
