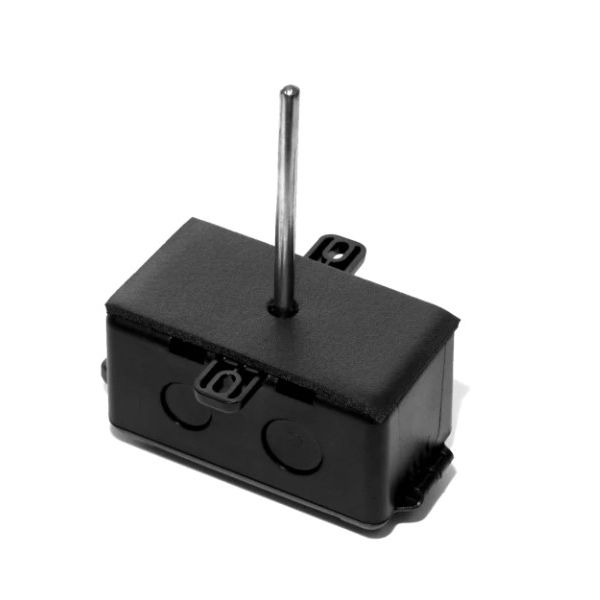

main product photo

Automation Components Inc (ACI) 121996 Thermistor Duct 8" Enclosure 10K Ohm

Be the first to review this product
Special Price $29.95 Regular Price $38.93
In stock
SKU
121996
The Automation Components Inc (ACI) 121996 Thermistor Duct is used to measure the air temperature in HVAC systems. It is placed inside an 8" protective case and has a thermistor element of 10 kΩ, which reacts to changes in air temperature and produces an electrical signal that changes with the temperature. This control circuitry of the system provides the control module to control air conditions so that fan speed, heating, or cooling outputs can be adjusted accordingly. The position of the assembly in the airstream and the thermistor properties of the assembly help in the measurement.
Add to Wish List
HVAC Controls & Electrical, Control & Sensing Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/2/121996.jpg

Specifications

  • Type: Thermistor Duct
  • Resistance: 10kΩ
  • Enclosure: 8"
Write Your Own Review
You're reviewing:Automation Components Inc (ACI) 121996 Thermistor Duct 8" Enclosure 10K Ohm
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Automation Components Inc (ACI) 121996 Thermistor?

Regularly inspect the thermistor and enclosure for dust, dirt, or corrosion. Clean gently with a soft cloth to prevent inaccurate readings. Ensure secure wiring connections and proper placement within the duct. Proper maintenance ensures precise temperature monitoring and accurate system operation.

What are common issues with the Automation Components Inc (ACI) 121996 Thermistor?

  • Inaccurate temperature readings.
  • Loose or damaged wiring connections.
  • Signal interruption due to dirt or debris.
  • Failure from moisture exposure or improper placement.

Installation Steps

Step 1: Turn off power to the HVAC system before installation.

Step 2: Select a suitable location in the duct for accurate temperature sensing.

Step 3: Mount the enclosure securely using screws or brackets provided.

Step 4: Insert the thermistor probe into the duct through the enclosure opening.

Step 5: Connect the thermistor wires to the control system, matching polarity if specified.

Step 6: Restore power and verify the system reads the correct temperature.
