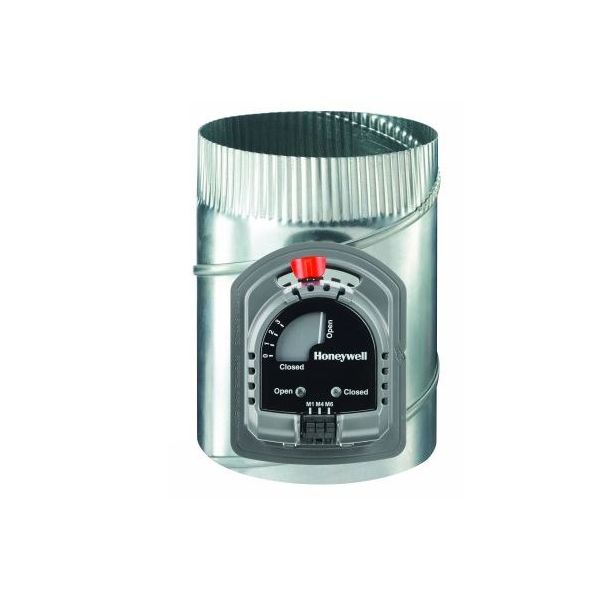

Resideo ARD7TZ 7" Automatic Round Damper S/R 24V
Special Price $159.81 Regular Price $183.79
In stock
SKU
ARD7TZ
The Resideo ARD7TZ is an air damper that is motorized and is used to regulate the air that flows within the HVAC systems. This round damper is made of galvanized steel and features a single blade that fits tightly against a gasket to minimize air loss. In particular, it is designed to regulate the air flow within a structure as a zone damper, ensuring the maximum comfort and efficiency. The damper is operated by a 24V electric actuator with a torque of 71 in oz and is modulated to open and close based on system requirements. Its small 7-inch size means that it can be used in many ducting configurations.
Manufacturer:
Specifications
- Type: Damper
- Damper Duct Shape: Round
- Damper Type: Zone
- Application: Zone Damper
- Damper Material: Galvanized Steel
- Color: Metallic
- Activation: Electric
- Actuator Housing Material: Molded Plastic
- Actuator Power Consumption: 8 VA
- Actuator Torque: 71 in-oz
- Blade Material: Galvanized Steel
- Leakage: Less than 1% at 0.5"WC
- Position Indicator Included: Yes
- Position Indicator Type: Damper Position Range Stops, LED indication light for open and close
- Range Stop Options: 4
- Voltage: 24V
- Size: 7"
