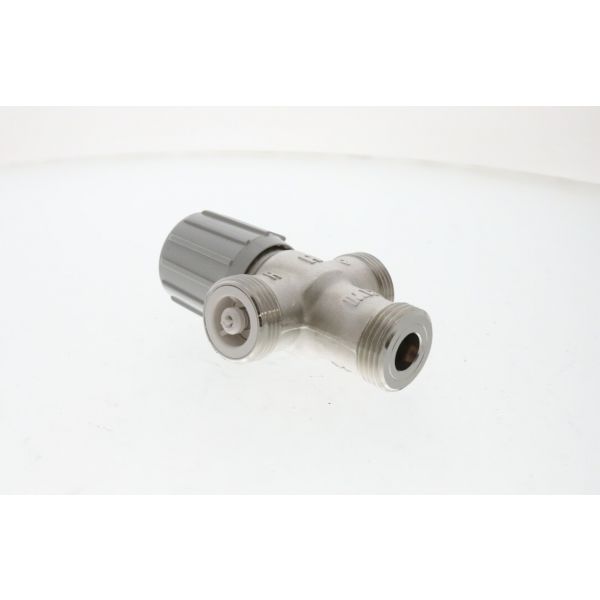

Resideo AM100-US-1LF Union Sweat Mixing Valve 1/2" Lead Free 70-145°F
Special Price $129.04 Regular Price $148.40
In stock
SKU
AM100-US-1LF
The Resideo AM100-US-1LF Union Sweat Mixing Valve is used to mix hot and cold water to achieve the required temperature in HVAC systems. The body is constructed with Teflon-coated and nickel-plated brass and the seals are EPDM rubber for long-term usage. This valve works at a temperature of 70°F to 145°F, the flow coefficient of 3.9 Cv means that the valve controls the flow and temperature of water. This product is suitable for home and business use and has two check valves to prevent backflow, this valve operates at a maximum pressure of 150 PSI.
Manufacturer:
Specifications
- Type: Union Sweat Mixing Valve
- Approvals and Standards: ASSE 1017 Certified, CSA Listed, IAPMO Listed
- Dimensions (LxH): 4.6x5.4"
- Cold Inlet Temperature Range: 39°F to 80°F
- Flow Coefficient: 3.9 Cv
- Hot Intelt Temperature Range
- 120°F to 180°F
- Number of Check Valves: 2
- Operating Pressure: 150 PSI
- Seal Material: EPDM Rubber
- Body Material: Teflon-coated, Nickel-plated Brass
- Connection Size: 1/2"
- Connection Type: Union Sweat
- Nominal Diameter: DN15
- Number of Connections: 3
