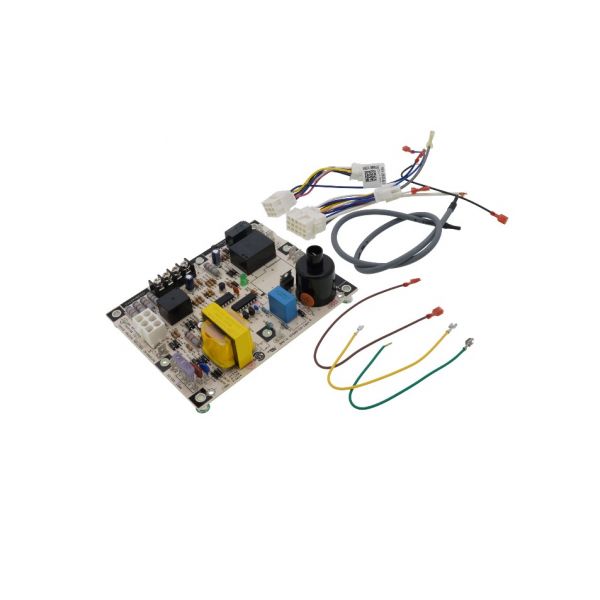

main product photo

Advanced Distributor Products 176777500 Control Board

Be the first to review this product
Special Price $263.09 Regular Price $292.03
In stock
SKU
176777500
Add to Wish List
HVAC Controls & Electrical, Control Boards & Modules
Manufacturer:
https://www.partshnc.com/media/catalog/product/1/7/176777500.jpg
Write Your Own Review
You're reviewing:Advanced Distributor Products 176777500 Control Board
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Advanced Distributor Products 176777500 Control Board?

Regularly inspect the control board for dust, corrosion, or loose connections. Ensure all wiring is secure and free from damage. Keeping the board clean and dry prevents electrical shorts and ensures accurate operation. Always disconnect power before servicing.

What are common issues with the Advanced Distributor Products 176777500 Control Board?

  • Failure to power on or respond.
  • Burned or damaged components.
  • Intermittent system faults.
  • Faulty relay or sensor connections.

Installation Steps

Step 1: Turn off power to the unit to prevent electrical shock.

Step 2: Remove the access panel and note all wiring connections on the old control board.

Step 3: Disconnect wires and mounting screws, then remove the old board.

Step 4: Install the new control board in the same orientation and secure it with screws.

Step 5: Reconnect all wiring according to your notes or the manufacturer diagram.

Step 6: Replace the access panel, restore power, and test system operation.
