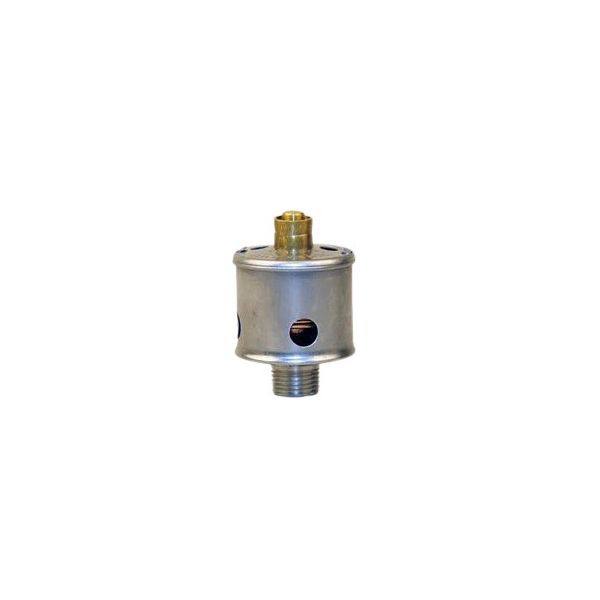

Armstrong International A9739 Thermostat Air Vent

Special Price $265.04 Regular Price $294.19
In stock
SKU
A9739
This Armstrong International A9739 Thermostat Air Vent is suitable for use with “A”, “K”, “J”, and “L” series float and thermostatic steam traps that are used at a pressure of between 30-175 psi. This air vent is fitted with a pressure-balanced phosphor-bronze thermostatic wafer made of stainless steel that expels air and CO2 through a specific outlet orifice. Its temperature range is 20 to 250°F, and its connections are 3/8” FEM NPT, so it is suitable for most HVAC systems, including hydronic heating. The automatic operation reduces the frequency of maintenance, increases the efficiency of the system, and reduces the accumulation of air thereby increasing heat output and comfort.
https://www.partshnc.com/media/catalog/product/a/9/a9739.jpg

Specifications

  • Type: Thermostat Air Vent
  • Compatibility: A, K, J & L series F&T Traps
  • Temperature Range: 20°F-250°F
  • Connection Size: 3/8" FEM NPT

Product Overview:
Provides automatic air-release control in float and steam trap assemblies. The Armstrong International A9739 Thermostat Air Vent is an OEM component that helps remove accumulated air and non-condensable gases from the steam trap. Its temperature-responsive design supports effective steam-system operation by allowing trapped gases to escape.

Thermostatic Air Discharge:
During startup, the vent's temperature-responsive element remains open while the steam trap is cool, allowing accumulated air and non-condensable gases to escape. As the trap reaches operating temperature, the element moves to close the vent.

Steam Trap Operating:
Once the vent closes, the steam trap continues its condensate-handling cycle through its float-operated mechanism. This allows condensate to discharge while the vent remains closed under normal steam operating conditions.

Replacement Guidelines:
Replace the Armstrong International A9739 Thermostat Air Vent when it fails to release accumulated air during startup, does not close as the steam trap reaches operating temperature, or allows steam to escape continuously. Replacement may also be necessary if the vent body, thermostatic element, or sealing surfaces become damaged. Have a qualified steam-system technician inspect and replace it.

Common Failure Symptoms:

  • Air remains trapped within the steam trap
  • Slow equipment warm-up
  • Reduced heat transfer in connected equipment
  • Vent fails to release air during startup
  • Steam leakage through the vent

Equipment Compatibility:
The Armstrong International A9739 Thermostat Air Vent is listed for use with select Armstrong float and thermostatic steam traps across A, K, J, and L series. Confirm the existing trap series and assembly

Technical Specifications:
Brand: Armstrong International
Part Number: A9739
Product Type: Thermostat Air Vent

Write Your Own Review
You're reviewing:Armstrong International A9739 Thermostat Air Vent
Your Rating
Customer Questions
What is the purpose of the Armstrong International A9739 Thermostat Air Vent?

It releases accumulated air and non-condensable gases from designated float and thermostatic steam trap assemblies.

How does the A9739 respond during steam trap startup?

Its temperature-responsive element allows air to escape while the trap is cool and closes the vent as operating temperature is reached.

Is the Armstrong A9739 an OEM replacement component?

Yes, A9739 is identified as an Armstrong International replacement component for specified steam trap assemblies.

What can happen if a steam trap air vent becomes blocked?

Trapped air can restrict steam circulation and reduce heat transfer in the connected equipment.

How should the Armstrong International A9739 Thermostat Air Vent be maintained?

Inspect the vent opening for scale or debris buildup that could restrict air discharge, and keep the surrounding steam trap connections clear.
