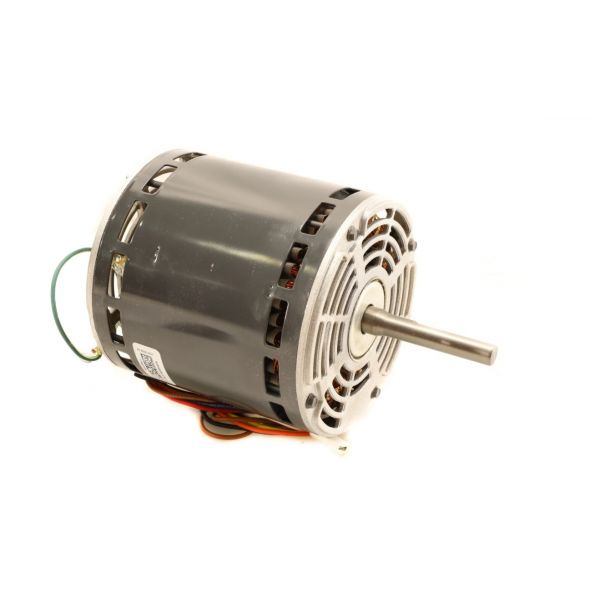

Lennox 58W00 5-Speed Motor 120V 9/10 HP 1000 RPM
Special Price $496.18 Regular Price $550.77
In stock
SKU
58W00
The Lennox 58W00 is a permanent split capacitor motor which is a 5-speed and can be used in different HVAC systems. This motor has a speed range of up to 1000 RPM and can therefore be adjusted depending. They include a compact design that makes it easy to install and a sleeve-bearing design that makes it run quietly. This mounting type is for a horizontal position because the belly band mounting type in HVAC systems motor is usually Usesed in blowers that help to move air in the conditioned area.
Manufacturer:
Specifications
- Measure: Units
- Power: 9/10 HP
- Shaft Length: 3
- Motor Type: PSC
- Speed: 1000 RPM
- Number of Speeds: 5
- Frame Size: 48
- Motor Mounting Position: Horizontal
- Motor Mounting Type: Belly Band
- Voltage: 120V
- Phase: 1
- Frequency: 60 Hz
- Shaft Size: 0.5 x 3 Inch
- Capacitor Value: 20µF 370 VAC
- Rotation: CCW
- Bearing Type: Sleeve
- Size: 7 x 7 x 13 Inch
- Weight: 19.28lbs
