Lennox 88C75 1-Phase Motor 200V 1 HP 1080 RPM

Special Price $502.06 Regular Price $557.28
Out of stock
SKU
88C75
The Lennox 88C75 1-Phase Motor is a general-purpose and high capacity part used in HVAC systems. It has a power of 1 HP and a diameter of 5.6 Inches; it is ideal for driving the ventilation and air conditioning units. It has a Permanent Split Capacitor type that guarantees it will work properly; it has a frequency of 60 Hz on a single phase. With a rigid structure and an upright orientation made possible by a Belly Band type mounting, this is perfect for numerous HVAC uses. The motor is of 1080 RPM and the ball bearing type, which makes the operation smooth and the motor long lasting. The 48-frame size and counter clockwise rotation allow it to be used with various HVAC equipment. It has the ability to perform steady with 200V voltage requirement and 30µF 370 VAC capacitor value.
Manufacturer:

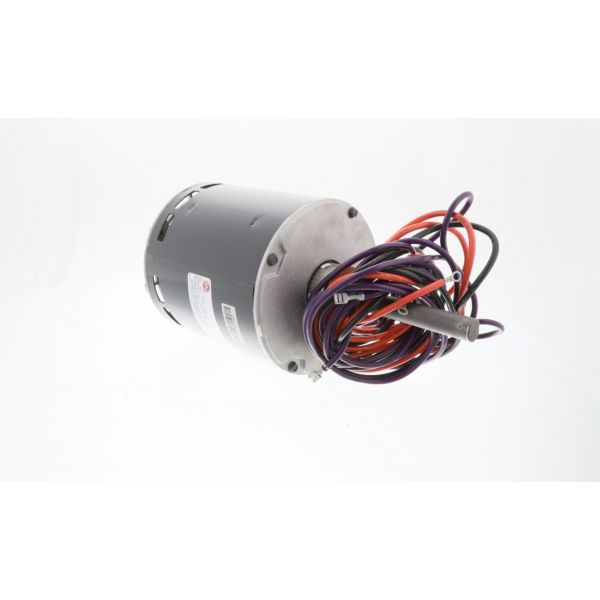

https://www.partshnc.com/media/catalog/product/8/8/88C75_lennox_partshnc.jpg

Specifications

  • Measure: Units
  • Power: 1 HP
  • Type: PSC
  • Diameter: 5.6 Inch
  • Frequency: 60 Hz
  • Phase: 1
  • Shaft Length: 4.5 Inch
  • Motor Type: PSC
  • Speed: 1080 RPM
  • Frame Size: 48
  • Motor Mounting Position: Vertical
  • Motor Mounting Type: Belly Band
  • Motor Mounting Type: Belly Band
  • Voltage: 200V
  • Shaft Size: 0.625 x 4.5 Inch
  • Capacitor Value: 30µF 370 VAC
  • Rotation: CCW
  • Bearing Type: Ball
  • Weight: 21.4lbs
Manufacturer Name: Lennox
Product Number: 88C75
OEM Part Number: 88C75
Product Description: 200V1ph 1Hp 1080Rpm Motor
Weight:21.4lbs/9706.87g
