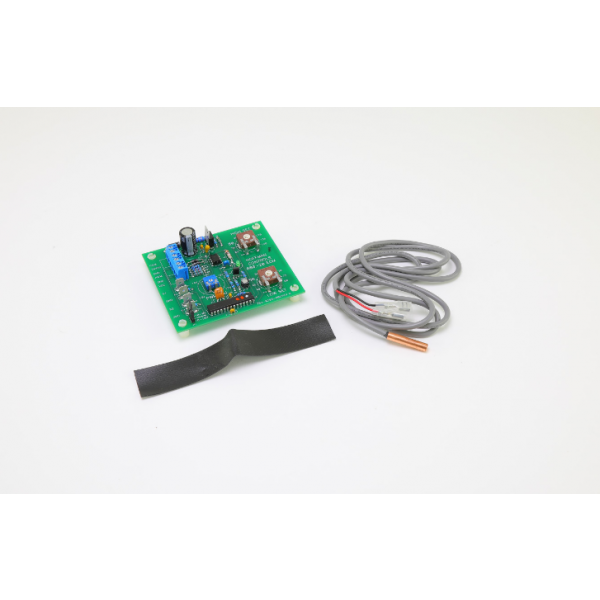

The Hoffman Controls 880-20 ECM Motor HD Control is a step forward in HVAC technology, specifically developed to improve the performance of Electronically Commutated Motors. This creative control unit controls ECM motors for improved efficiency in HVAC systems. It has a single sensor that runs at 10 mA. The 880-20 guarantees accurate motor function monitoring and correction, enabling dynamic response to changing environmental circumstances. Because it can run on a 120-volt power source, it can be used for a variety of HVAC applications, such as air handlers and refrigeration units. The Hoffman Controls 880-20 prolongs the life of HVAC equipment by avoiding needless strain in addition to helping to save energy through its optimized motor management.
The Hoffman Controls 880-20 is a low ambient head pressure control specifically designed for modulating Electrically Commutated (ECM) condenser fan motors in air conditioning and refrigeration systems. It plays a crucial role in maintaining efficient cooling performance, especially in low ambient temperature conditions. It monitors and regulates the head pressure (pressure of the refrigerant leaving the condenser) of the refrigeration system. By modulating the speed of the ECM fan motor, Hoffman Controls 880-20 ECM head pressure control ensures optimal air flow through the condenser for efficient heat rejection. Prevents over-condensation on the condenser coil when ambient temperatures drop, improving system efficiency and preventing potential damage.
Key features:
Weight: 0.36lbs/163.29g.
Adjustable set points: Allows customization of low and high head pressure settings to suit specific system requirements and operating conditions.
PWM and 0-10Vdc motor control: Provides compatibility with various ECM fan motors for flexible application.
Self-test mode: Ensures proper functionality of the control.
Hard start feature: Provides additional power boost to the motor during startup, especially helpful in low ambient conditions.
LED indicators: Display the operating status and potential issues for easy troubleshooting.
Compact design: Fits conveniently into tight spaces within refrigeration units.
Signs of a Faulty 880-20 Hoffman ECM motor
A malfunctioning Hoffman Controls 880-20 head pressure controller for ECM motor can impact your air conditioning or refrigeration system's performance, leading to reduced efficiency, higher energy consumption, and potential damage. Keep an eye out for these warning signs:
Reduced cooling capacity: The system struggles to maintain desired temperatures, especially in low ambient conditions.
Increased energy consumption: The unit runs more frequently or for longer periods to compensate for inefficient cooling.
Uneven cooling: Different areas of the cooled space might experience inconsistent temperatures.
Frost buildup on the condenser coil: This can indicate over-condensation due to improper head pressure control.
Erratic fan behavior: The condenser fan might run continuously, intermittently, or at inappropriate speeds for the ambient temperature.
Unusual noises: Strange buzzing, humming, or clicking sounds from the control unit can point to internal issues.
Error codes or indicator lights: Some systems might display specific error codes or LED indicators related to head pressure control malfunction.
Choose the best HVAC equipment parts and supplies from PartsHnC!
Q: What are the benefits of using the ECM head pressure control?
A: Using Hoffman Controls 880-20 ECM head pressure control improves system efficiency, reduces energy consumption, enhances cooling performance, minimizes wear and tear on the fan motor, and prevents over-condensation.
Q: What should I do if I suspect a faulty 880-20 Hoffman ECM motor?
A: Immediately contact a qualified refrigeration or HVAC technician for diagnosis and repair. Do not attempt to fix it yourself.
Q: Can I adjust the settings on the Hoffman ECM motor head pressure controller?
A: Yes, it has adjustable set points for low and high head pressure. However, it's recommended to consult a qualified technician for proper configuration.
