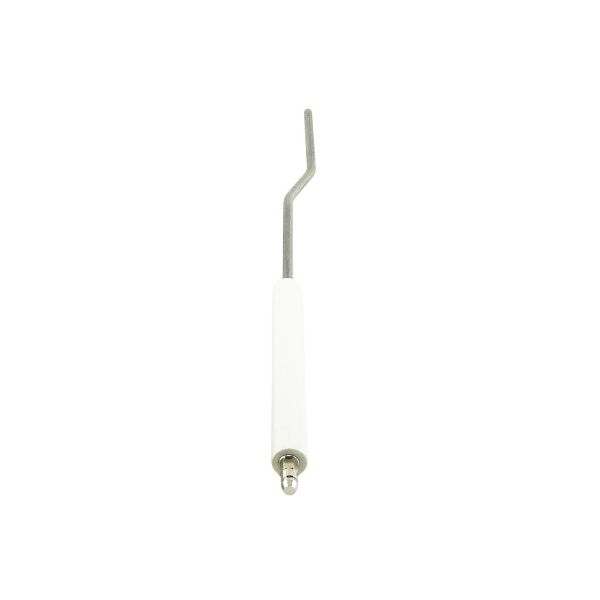

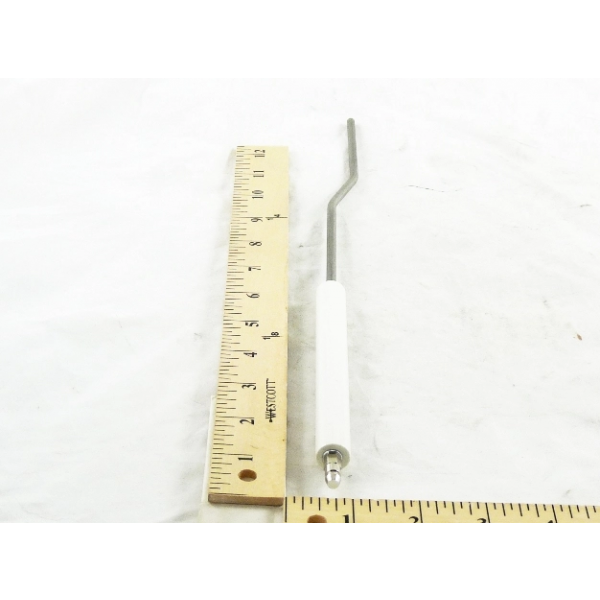

Patterson-Kelley 86-7100-0230 Flame Rod Crown 05-050-S

Rating:
5 5 2
2  Reviews Add Your Review
Special Price $57.12 Regular Price $65.69
In stock
SKU
86-7100-0230
The Patterson-Kelley 86-7100-0230 Flame- Rod Crown Model 05-050-S is an essential part in the HVAC systems. Designed for boilers and water heaters. It is detects and monitors the burner flame ensuring proper ignition and preventing hazardous conditions by shutting down the system in case of flame failure. Its high-efficiency commercial heating equipment, it enhances operational safety, reliability and energy efficiency. Its durable construction ensures longevity reducing maintenance needs and improving system performance. This component helps optimize fuel usage and ensures consistent heating output making and efficient HVAC operation.
Add to Wish List
HVAC Controls & Electrical, Safety & Limit Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/8/6/86-7100-0230.jpg

Specifications

  • Type: Flame Rod Crown
  • Model: 05-050-S
Manufacturer Name: Patterson-Kelley
Product Number: 86-7100-0230
OEM Part Number: 86-7100-0230
Product Description: Flame Rod Crown 05-050-S
Weight:0.21lbs/95.25g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews 2
Write Your Own Review
You're reviewing:Patterson-Kelley 86-7100-0230 Flame Rod Crown 05-050-S
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Patterson-Kelley 86-7100-0230 Flame Rod?

Regularly inspect the flame rod for soot, corrosion, or residue buildup and clean with a soft cloth or appropriate cleaner. Proper maintenance ensures accurate flame sensing and safe operation. Avoid bending or damaging the rod during handling.

What are common issues with the Patterson-Kelley 86-7100-0230 Flame Rod?

  • Failure to detect flame.
  • Corrosion or buildup on the rod surface.
  • Inaccurate flame sensing.
  • Physical damage or misalignment.

Installation Steps

Step1: Turn off the HVAC system and disconnect power for safety.

Step2: Open the burner access panel to locate the existing flame rod.

Step3: Disconnect any wiring and remove the old flame rod carefully.

Step4: Install the new flame rod in the same position and orientation.

Step5: Reconnect wires securely according to labels or diagram.

Step6: Ensure the rod is properly seated and aligned with the burner flame.

Step7: Close the access panel, restore power, and test the appliance for proper flame detection
