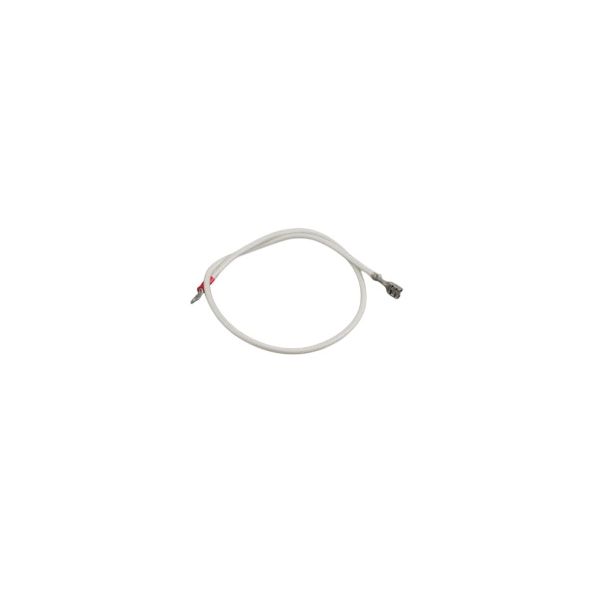

main product photo

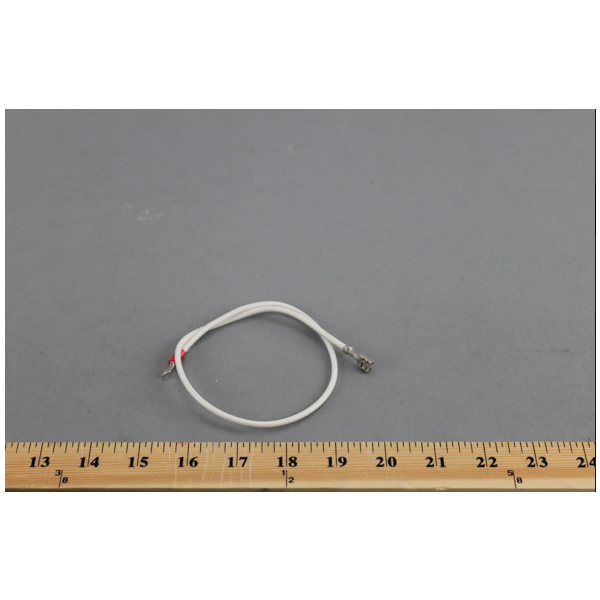

Midco International 8505-94 Flame Rod Wire Assembly

Be the first to review this product
Special Price $15.30 Regular Price $19.89
In stock
SKU
8505-94
The Midco International 8505-94 Flame Rod Wire Assembly is an electrical connection part that is used to pass the flame sensing signal of the burner flame rod to the control circuit. It operates by high temperature insulated conductor that transfers the electrical signal produced at the flame rod when there is a presence of combustion to enable the control system to confirm flame detection when the gas burner and boiler HVAC systems are operating. The assembly is attached between the flame rod terminal and the ignition control module through which the wire passes through the burner compartment.
Add to Wish List
HVAC Controls & Electrical, Safety & Limit Devices
Manufacturer:
https://www.partshnc.com/media/catalog/product/8/5/8505-94.jpg
Manufacturer Name: Midco International
Product Number: 8505-94
OEM Part Number: 8505-94
Product Description: Flame Rod Wire Assembly
Weight:0.03lbs/13.61g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Midco International 8505-94 Flame Rod Wire Assembly
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Midco International 8505-94 Flame Rod Wire Assembly?

Regularly inspect flame rod wire assembly for corrosion, loose connections, and insulation damage. Clean electrode area and ensure secure mounting with proper alignment in burner assembly. Always disconnect power before servicing for safety and electrical hazard prevention.

What are common issues with the Midco International 8505-94 Flame Rod Wire Assembly?

  • Intermittent flame signal loss during burner operation.
  • Corrosion or oxidation on flame rod reducing sensing efficiency.
  • Frayed or damaged wire insulation causing signal interruption.
  • Loose or poor electrical connections leading to ignition failure.

Installation Steps

Step 1: Disconnect power to the burner or ignition system before installation.

Step 2: Remove the old flame rod wire assembly from the ignition control and flame rod connection.

Step 3: Inspect and clean the flame rod terminal and surrounding area.

Step 4: Connect the new wire assembly securely to the flame rod and control module terminals.

Step 5: Restore power and test the burner for proper flame sensing and ignition operation.
