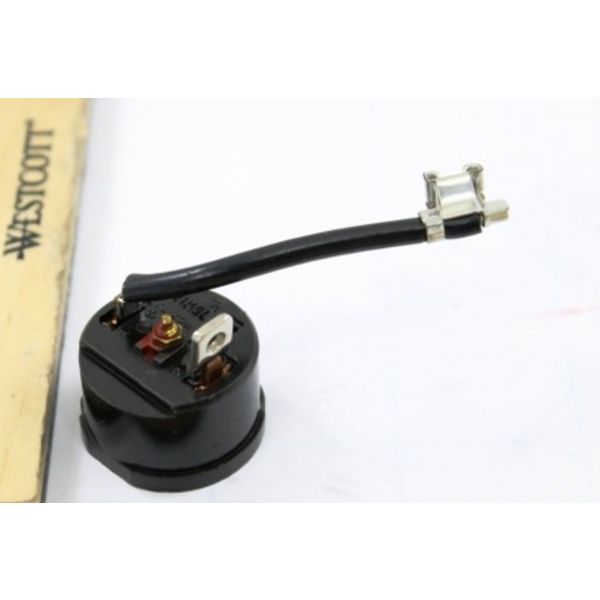

Daikin-McQuay 802003183 Compressor Overload

Special Price $46.31 Regular Price $60.21
Out of stock
SKU
802003183
Compressor Overload
https://www.partshnc.com/media/catalog/product/8/0/802003183.jpg

Compressor overload devices provide electrical protection for compressors used in HVAC and refrigeration equipment. The Daikin-McQuay 802003183 Compressor Overload is a protective component associated with the compressor's electrical circuit. Its purpose is to respond to overload conditions that could place excessive electrical or thermal stress on the compressor. The correct device must correspond to the compressor's protection requirements.

COMPRESSOR OVERLOAD PROTECTION MECHANISM:
A compressor overload is designed to respond when electrical current or temperature exceeds the limits established by its protective design. This response helps prevent excessive stress on the compressor during abnormal operating conditions. The device's specific sensing and activation mechanism depends on its construction.

ELECTRICAL CIRCUIT PROTECTION ROLE:
Installed as part of the compressor's electrical protection arrangement, the overload acts as a safeguard between normal compressor operation and potentially damaging operating conditions. Its protective function is to interrupt compressor operation when the applicable overload threshold is reached, helping limit exposure to excessive electrical or thermal stress.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when the 802003183 overload develops a confirmed fault and can no longer provide the required compressor protection. Before ordering, compare the existing overload part number with the applicable equipment requirements and confirm that the replacement is intended for the same compressor application.

COMMON FAILURE SYMPTOMS:

  • Compressor shuts down unexpectedly during operation.
  • Repeated interruptions in compressor operation.
  • Compressor fails to restart after an electrical interruption.
  • Protective component shows visible signs of damage.
  • Compressor operation becomes inconsistent due to repeated protection interruptions.

EQUIPMENT COMPATIBILITY:
The Daikin-McQuay 802003183 compressor overload should be matched with equipment requiring the corresponding compressor overload protection component. Before installation, verify the existing overload part number, compressor application, and applicable equipment documentation to confirm the correct replacement.

TECHNICAL SPECIFICATIONS:
Brand: Daikin-McQuay
Part Number: 802003183
Product Type: Compressor Overload

Write Your Own Review
You're reviewing:Daikin-McQuay 802003183 Compressor Overload
Your Rating
Customer Questions
What makes a compressor overload different from a compressor?

A compressor performs the refrigerant compression process, while an overload is an electrical protective component associated with compressor operation.

What operating conditions can activate compressor overload protection?

Excessive electrical current or heat can trigger overload protection, depending on the device's design and operating limits.

Why must an overload match the compressor's protection requirements?

The overload must provide protection appropriate to the compressor's electrical characteristics. An incorrectly matched device may not provide the intended protection.

Does replacing the overload resolve every compressor shutdown issue?

No. Compressor shutdown can have several causes, so replacing the overload alone does not necessarily resolve the underlying problem.

How can the Daikin-McQuay 802003183 be distinguished from similar overload components?

Use the complete part number, 802003183, and compare it with the original component and the equipment manufacturer's parts documentation.
