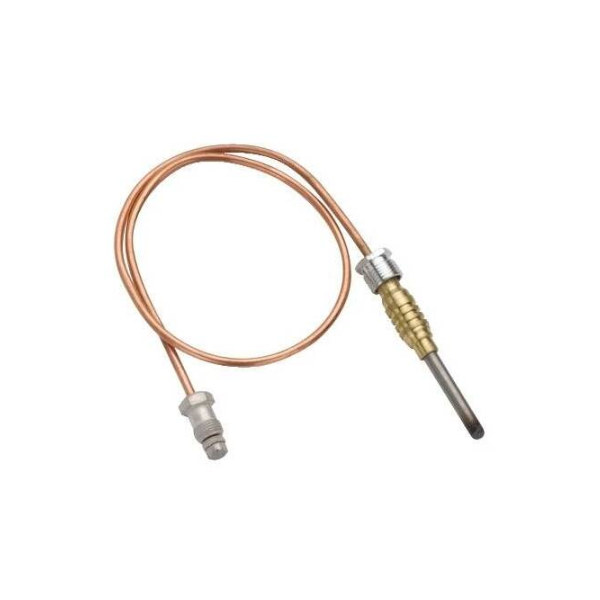

Converts heat from a burner flame into a small electrical signal for the associated gas control in HVAC systems. The Cozy Heaters 78095 Thermocouple Q309A1954 uses a heated sensing junction to respond to combustion conditions. Its electrical response provides a flame-related input to the control circuit for flame recognition and safety monitoring.
Flame Detection:
At the sensing junction, the thermocouple establishes the thermal interface required for detecting combustion heat. The junction’s material arrangement responds to the temperature present at its immediate sensing point, creating the thermoelectric effect associated with this type of component. Its physical placement determines the portion of the burner environment monitored by the sensing element. This division directs attention to the junction’s sensing interface and thermal-response characteristics.
Safety Monitoring:
Within the burner control sequence, the thermocouple input serves as an electrical reference for determining the applicable control state. The control circuit compares the available input with its required operating condition and coordinates the associated gas-control response accordingly. This function concerns electrical status evaluation and control-state management, without repeating the sensing junction’s thermal performance.
Replacement Guidelines:
Replacement requires matching Cozy Heaters 78095 Thermocouple Q309A1954 thermocouple’s sensing characteristics, connection arrangement, physical configuration, and heating-equipment requirements. The replacement should also suit the associated burner and gas-control circuit.
Common Failure Symptoms:
- Pilot flame fails to remain consistently established.
- Gas control does not receive a flame signal.
- Burner shuts off shortly after ignition.
- Heating operation becomes intermittent during startup.
- Flame-sensing response becomes weak or inconsistent.
Equipment Compatibility:
The Cozy Heaters 78095 Thermocouple Q309A1954 is intended to integrate with gas-fired heating equipment requiring the corresponding thermocouple configuration. Verify the equipment model, burner arrangement, connection requirements, and manufacturer’s documentation before purchasing.
Technical Specifications:
Brand: Cozy Heaters
Part Number: 78095
Product Type: Thermocouple
Model: Q309A1954
