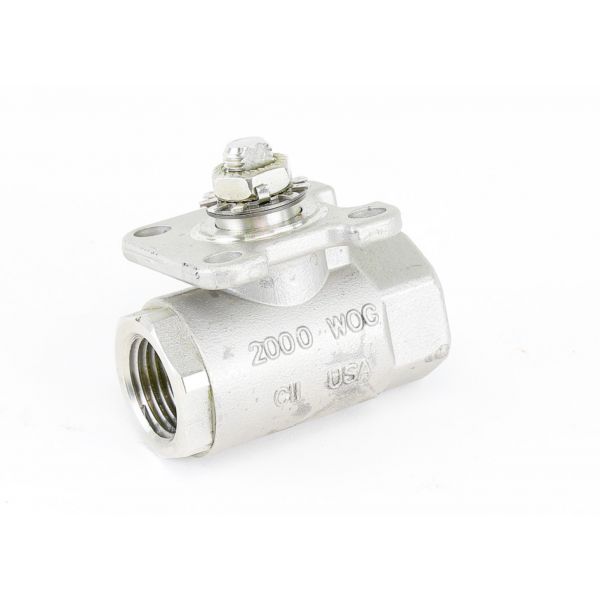

Conbraco Industries 76-AR3-64 1/2" NPT Ball Valve Stainless Steel

Special Price $162.72 Regular Price $187.13
In stock
SKU
76-AR3-64
The Conbraco Industries 76-AR3-64 1/2” NPT Ball Valve is an essential valve and intended for use in controlling fluids in different processes. This valve works with a spherical disc known as the ball which rotates within the body of the valve to either open or shut the passage of the fluid while maintaining a shut-off position. It is suitable for high pressure and would be suitable for use in industries like water systems, chemical processing, and HVAC Systems among others.
https://www.partshnc.com/media/catalog/product/7/6/76-ar3-64.jpg

Specifications

  • Type: Ball Valve
  • Connection Size: 1/2"
  • Material: Stainless Steel

Product Overview:
Serves as a stainless steel ball valve for controlling the passage within connected piping arrangements. The Conbraco Industries 76-AR3-64 uses an internal ball mechanism that changes the available route according to its operating position. It is used where a line requires mechanical control over movement through a designated path. The 1/2" NPT designation identifies the threaded connection size and type, while Stainless Steel identifies the material specified for the valve body.

Internal Ball Operation:
The valve operates through a movable ball containing an internal opening. As the operating mechanism turns the ball, the opening changes its alignment with the inlet and outlet ports. This mechanical movement determines whether a continuous route is established through the valve body. The operating principle is based on the changing position of the internal ball and does not concern the external piping connection.

Threaded Connection Arrangement:
The threaded ends provide the interface between the valve and adjoining pipe sections. The NPT configuration identifies the connection style used to join the component within a threaded piping arrangement. This aspect concerns the external relationship between the valve and surrounding lines, remaining separate from the internal mechanism that controls movement through the assembly.

Replacement Guidelines:
Replacement requires assessing the ball valve configuration, connection type, nominal size, material specification, and associated equipment requirements. Conbraco Industries 76-AR3-64 Ball Valve 1/2" NPT Stainless Steel should be selected based on the required connection characteristics and operating conditions of the applicable piping system.

Common Failure Symptoms:

  • Leakage around the valve body or threaded connection areas.
  • Difficulty changing the operating position.
  • Restricted movement of the internal mechanism.
  • Unintended passage through the controlled line.
  • Inability to maintain the selected open or closed condition.
  • Visible deterioration around the connection areas.

Equipment Compatibility:
The Conbraco Industries 76-AR3-64 Ball Valve is intended for applicable piping arrangements requiring the corresponding valve configuration. Verify the equipment model number, existing component identification, connection requirements, and manufacturer's parts documentation before purchasing.

Technical Specifications:
Brand: Conbraco Industries
Part Number: 76-AR3-64
Product Type: Ball Valve
Connection Size: 1/2"
Body Material: Stainless Steel

Write Your Own Review
You're reviewing:Conbraco Industries 76-AR3-64 1/2" NPT Ball Valve Stainless Steel
Your Rating
Customer Questions
What maintenance is required for the Conbraco Industries 76-AR3-64 Ball Valve?

Inspect the ball valve regularly for leaks and corrosion, especially at threaded connections. Operate the handle periodically to prevent seizing. Clean external surfaces and ensure proper sealing to maintain flow control and safety in pressure systems.

What are common issues with the Conbraco Industries 76-AR3-64 Ball Valve?

  • Leakage at stem due to wear or improper sealing.
  • Valve sticking or hard operation from internal debris or corrosion.
  • Seat or seal degradation causing pressure loss or incomplete shutoff.
  • Handle looseness or mechanical wear affecting control reliability.

What type of component is the Conbraco Industries 76-AR3-64?

The Conbraco Industries 76-AR3-64 is a mechanical ball valve used to control the available path within a connected piping arrangement.

How does a ball valve operate internally?

A movable ball containing an opening changes its alignment with the valve ports when the operating mechanism is turned. This alignment determines whether a route is available through the assembly.

What makes a ball valve different from a regulating valve?

A ball valve primarily changes the available condition of a passage, while a regulating valve manages flow according to a specific control requirement.

How does the valve relate to adjoining pipe sections?

The valve forms an intermediate component between connected sections and provides a controllable path within the piping arrangement.

What role does the threaded connection play in a ball valve assembly?

The threaded connection defines how the component interfaces with adjoining lines and distinguishes it from valves using other connection configurations.

Installation Steps

Step 1: Shut off the system pressure and drain the pipeline before beginning installation.

Step 2: Apply approved thread sealant or PTFE tape to the pipe threads.

Step 3: Align the ball valve with the pipeline and thread it onto the pipe fittings carefully.

Step 4: Tighten the valve securely using the correct wrench without overtightening the body.

Step 5: Restore system pressure slowly and inspect all connections for leaks while testing valve operation.
