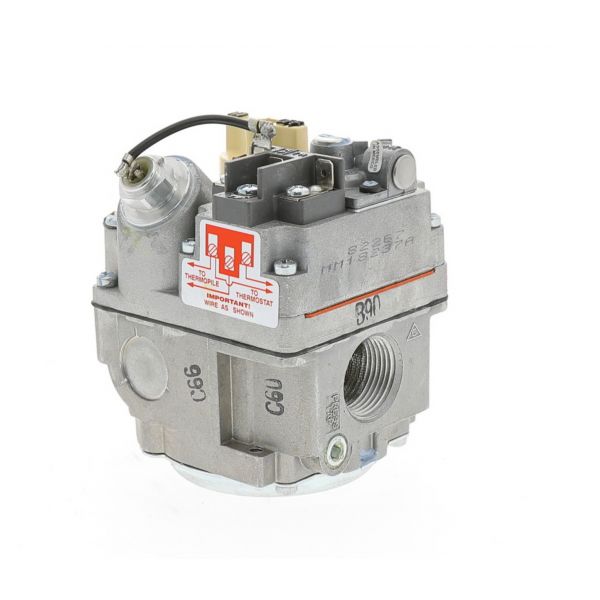

Robertshaw 700-506 Millivolt Natural Gas Valve 300000 BTU 3/4" X 3/4"

Rating:
5 5 1
1  Review Add Your Review
Special Price $144.69 Regular Price $166.40
In stock
SKU
700-506

The Robertshaw 700-506 Millivolt Gas Valve is a versatile and robust valve designed for a wide range of heating applications, including furnaces and swimming pools. It ensures reliable performance and features easy installation, making it an ideal choice for both residential and commercial use.

Add to Wish List
HVAC Controls & Electrical, Valves
Manufacturer:
https://www.partshnc.com/media/catalog/product/7/0/700-506.jpg

Specifications

  • Size: 3/4Inch
  • Pressure Regulator(psi): 0.5psi
  • Temperature Range (F)/(c): -40°F to 175°F
  • Maximum Regulatory Capacity: 720,000BTU
  • Weight: 2.09lbs
  • Frequency: 50/60Hz
  • Type of Gas: Natural Gas
  • Voltage: 24V

Specifications:

  • Description of Part: Gas Valve
  • Normal Size : 3/4 inch
  • Connection Type: Female Threaded to Female Threaded
  • Actuator Type: Thermostat Supply
  • Input Rating: 250 to 750 Millivolt
  • Temperature Range: -40 to 175 Degrees Fahrenheit
  • Pressure Limit: 1/2 pounds per square inch
  • Included/Highlighted:
    • Inlet Screen with Filtering
  • Use: Heating, Furnaces for Pools
  • Standards: UL, CSA (United States and Canada), RoHS compliant
  • Terminal Type: Screw or spade
  • Side Outlet Size: Straight-Through
  • Pilot Outlet Size: 1/4 inch tubing
  • Reducer Bushing: Threaded with 2-inch size
  • Maximum Output: 300,000 BTU per hour
  • Regulation Pressure Setting: 3.5 inches of water column for natural gas
  • Universal Product Code (UPC): 66201363286
  • Product Number: 700-506

Features / Benefits:

  • Flexibility: The Robertshaw 700 Series Millivolt Gas Valves, controlled by thermostats, provide versatility for various installations including heating systems and swimming pools.
  • Ease of Use: Gas valve dial labeled with Off-Pilot-On options for simple operation.
  • Efficiency: Equipped with screened inlet for smooth gas flow and maximum effectiveness.
  • Safety and Compliance: Meets UL and CSA standards for safety and reliability, as well as RoHS environmental safety standards.
Reviews 1
Write Your Own Review
You're reviewing:Robertshaw 700-506 Millivolt Natural Gas Valve 300000 BTU 3/4" X 3/4"
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Robertshaw 700-506 Natural Gas Valve?

Regularly inspect the gas valve for leaks, dirt, or corrosion. Clean connections and ensure proper seating of the valve. Always shut off the gas supply before servicing. Routine maintenance ensures safe operation, accurate flow, and prevents ignition issues.

What are common issues with the Robertshaw 700-506 Natural Gas Valve?

  • Valve failing to open or close properly.
  • Weak or inconsistent millivolt signal.
  • Gas flow interruptions or reduced output.
  • Internal valve sticking or delayed response.
  • Electrical connection problems affecting operation.

Installation Steps

Step1: Turn off gas supply and shut off power to the system before starting.

Step2: Remove the old gas valve while carefully disconnecting gas lines and wiring.

Step3: Install the new valve ensuring proper alignment with gas piping.

Step4: Reconnect gas lines with secure fittings and check for leaks.

Step5: Restore gas and power, then test the valve and system operation safely.
