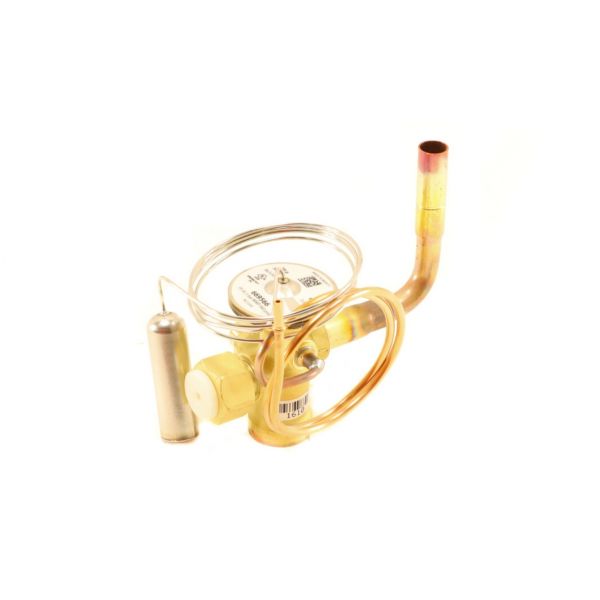

Nordyne 669566R R410A 3Ton Externally Equalized Thermal Expansion Valve(Txv)

The Nordyne 669566R R410A is a 3-ton externally equalized thermal expansion valve (TXV) designed for use in HVAC systems utilizing R410A refrigerant. A TXV is a key component that regulates the flow of refrigerant into the evaporator coil of your air conditioner. By precisely controlling the amount of refrigerant, the TXV ensures optimal cooling performance and efficiency. The valve works by responding to the temperature of the refrigerant leaving the evaporator coil. As the temperature rises, the TXV opens to allow more refrigerant in, and conversely, it closes when the temperature drops. This maintains a consistent superheat, which is the difference between the refrigerant's temperature and the saturation temperature at the current pressure. Externally equalized means the pressure sensing bulb is located on the suction line away from the valve body. This design offers improved stability and responsiveness in various operating conditions. This Nordyne TXV is specifically made for use with 3-ton R410A systems and has a maximum capacity of 1000 BTU. It features standard 1/4-inch NPT connections and is compatible with systems operating at 50Hz.
