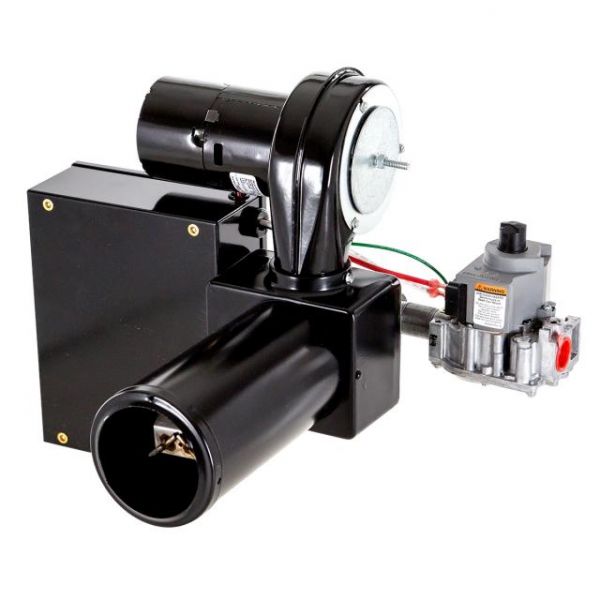

Wayne Combustion 64488 P265F Natural Gas Boiler Burner 120V DIN

Special Price $1,269.67 Regular Price $1,409.34
Out of stock
SKU
64488

The Wayne Combustion 64488 P265F Boiler burned in 120V  is a natural gas boiler burner replacement ideal for residential and light commercial applications. It ignites the gas and produces heat that is transferred to the boiler water, acting as the central component of the heating system. The warmth from this hot water is subsequently distributed throughout the structure through pipes. The burner uses natural gas as fuel and runs on 120V AC power. Most commonly, a hot surface ignition system is used for dependable and effective starting. Potentially indicative of unique power and flame characteristics designed for particular boiler types is the P265F designation. The Wayne Combustion 64488 P265F burner replacement may fix a malfunctioning burner, allowing your boiler to perform properly and provide safe, effective heating.

https://www.partshnc.com/media/catalog/product/6/4/64488_wayne-combustion_partshnc.png

Specifications

  • Type: Burner
  • Voltage: 120V
  • Fuel Type: Natural Gas
  • Application: Boiler
  • Model: P265F

PRODUCT OVERVIEW:
Generates the controlled combustion flame that supplies thermal energy to natural gas boiler systems, supporting the heat production required for boiler operation. The Wayne Combustion 64488 P265F Natural Gas Boiler Burner 120V DIN is a Genuine OEM burner assembly specified for natural gas fuel and 120V electrical operation. Its burner design provides the combustion interface within the boiler's heating chamber.

FUEL DELIVERY:
The burner assembly incorporates the fuel-entry and distribution arrangement required to deliver natural gas into the combustion zone. Its internal passage design supports the controlled introduction of fuel for the burner process. Proper fuel delivery is important for maintaining the intended combustion characteristics within the boiler.

ELECTRICAL CONNECTION:
The 120V electrical specification identifies the required power supply for the burner's electrical operating components. The DIN connection provides the designated electrical interface for integration with compatible control wiring. Correct voltage and connector configuration are essential for matching the burner to the boiler's electrical system.

REPLACEMENT GUIDELINES:
Replacement of the Wayne Combustion 64488 P265F Natural Gas Boiler Burner 120V DIN may be necessary if the burner body becomes damaged, combustion becomes persistently unstable, or its electrical connection fails to support proper burner operation. These conditions can interfere with heat production and the boiler's operating sequence. A qualified boiler combustion technician can inspect the burner assembly, evaluate its fuel and electrical connections, check related ignition and flame-control components, and install the correct replacement with the required combustion and safety checks.

COMMON SIGNS OF PROBLEMS:
Boiler fails to establish a stable flame

Burner operation becomes intermittent

Ignition attempts occur without sustained combustion

Unusual noise develops during burner operation

Heating output becomes inconsistent

EQUIPMENT COMPATIBILITY:
The Wayne Combustion 64488 P265F Natural Gas Boiler Burner 120V is a Genuine OEM burner assembly intended for designated Wayne natural gas boiler applications. Compatibility depends on the boiler's burner configuration, fuel type, electrical supply, DIN connector arrangement, and combustion-chamber requirements. Confirm the complete boiler model and specified burner assembly before selecting this replacement.

TECHNICAL SPECIFICATIONS:
Brand: Wayne Combustion
Part Number: 64488
Model: P265F
Product Type: Boiler Burner
Fuel Type: Natural Gas
Voltage: 120V
Electrical Connection: DIN

Write Your Own Review
You're reviewing:Wayne Combustion 64488 P265F Natural Gas Boiler Burner 120V DIN
Your Rating
Customer Questions
What maintenance is required for the Wayne Combustion 64488 Burner?

Regularly inspect the burner for soot buildup, debris, or corrosion. Check electrical connections and ensure the flame operates correctly. Proper maintenance ensures efficient combustion, prevents malfunctions, and maintains safe operation.

What are common issues with the Wayne Combustion 64488 Burner?

  • Incomplete or uneven combustion.
  • Ignition failure or difficulty starting.
  • Electrical connection problems.
  • Soot buildup or corrosion.

What is the primary function of the Wayne Combustion 64488 P265F Natural Gas Boiler Burner?

It generates the combustion flame required to produce heat within a natural gas boiler, supporting the boiler's heating operation.

How does the Wayne Combustion 64488 P265F burner support natural gas combustion?

Its fuel-entry and distribution arrangement introduces natural gas into the combustion zone, supporting controlled fuel delivery for the burner process.

How can I confirm the Wayne Combustion 64488 P265F is the correct OEM replacement for my boiler?

Compare the complete boiler model and original burner part number with Wayne Combustion manufacturer documentation. Verify the P265F designation, natural gas configuration, 120V rating, and DIN electrical connection.

When should the Wayne Combustion 64488 P265F Boiler Burner be replaced?

Replacement may be necessary when the burner is physically damaged, combustion remains unstable, or its electrical connection fails to support proper operation. A qualified boiler technician should diagnose the cause.

What maintenance checks help assess the condition of the 64488 P265F burner?

Inspect the burner assembly, fuel connections, DIN electrical connection, and combustion area for visible damage or deterioration. Have a qualified boiler technician assess flame stability and combustion performance.

Installation Steps

Step 1: Turn off power and gas supply before starting.

Step 2: Remove the existing burner, noting mounting and wiring positions.

Step 3: Mount the burner securely on the boiler following alignment guides.

Step 4: Connect the gas line ensuring proper inlet orientation and use thread sealant if needed.

Step 5: Wire the burner to a power source according to the manufacturer’s diagram.

Step 6: Check all connections for leaks and ensure fittings are tight.

Step 7: Power on and test burner operation, monitoring flame and pressure.
