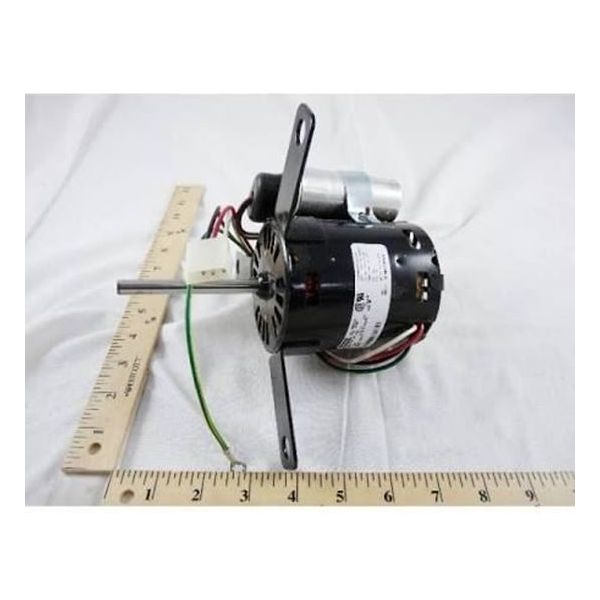

Ventilation appliances use motor-driven assemblies to move air through designated passages. The PennBarry 63746-0 is a motor used within the appliance’s associated air-moving assembly. It provides the mechanical input needed by the connected component to carry out its intended task. The motor forms part of the appliance’s internal mechanical arrangement.
Motor Drive and Rotational Operation:
The motor’s mechanical output is defined by its power rating and rotational speed. The PennBarry 63746-0 is rated at 1/12 HP, specifying its mechanical power capacity, and 1550 RPM, identifying its listed rotational speed.
Two-Speed Operating Function:
A two-speed motor provides separate high- and low-speed operating settings. The PennBarry 63746-0 uses a two-speed configuration, allowing operation at either designated speed according to the connected control arrangement. This design provides two selectable operating speeds rather than a single fixed-speed setting.
Replacement Guidelines:
Replacement may be appropriate when the 63746-0 2-Speed Motor develops persistent deterioration in motor performance or when its available operating-speed function can no longer meet the requirements of the associated assembly. Before ordering, compare the existing 63746-0 part number with the applicable equipment requirements and verified specifications.
Common Failure Symptoms:
- Motor fails to start
- Intermittent motor operation
- One or both speed settings fail to operate
- Irregular shaft rotation
- Unusual motor noise or excessive vibration
Equipment Compatibility:
The PennBarry 63746-0 2-Speed Motor should be matched to an application requiring the corresponding motor configuration. When selecting this motor, compare the existing 63746-0 part number with the applicable equipment information and verified manufacturer requirements, including the documented 1/12 HP, 1550 RPM, 115V, and 2-speed configuration.
Technical Specifications:
Part Identification:
Brand: PennBarry
Part Number: 63746-0
Product Type: 2-Speed Motor
Electrical:
Voltage: 115V
Mechanical:
Horsepower: 1/12 HP
Speed: 1550 RPM
