Bray Commercial 630250-21520536 1/4" DIN Connect Solenoid Valve 120V

PRODUCT OVERVIEW:

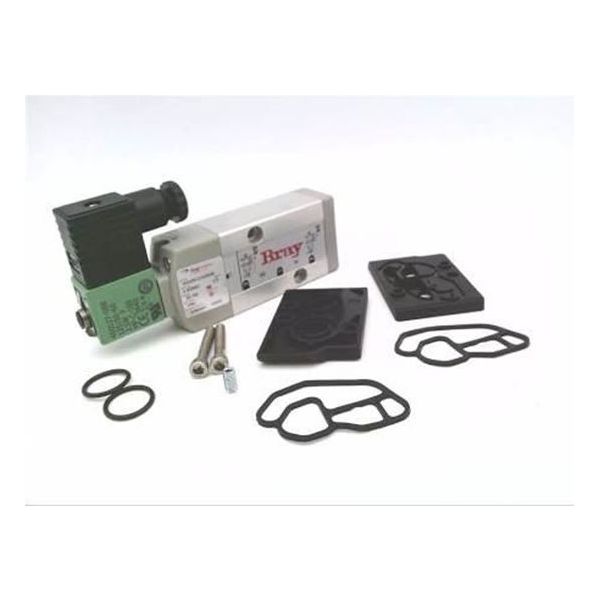

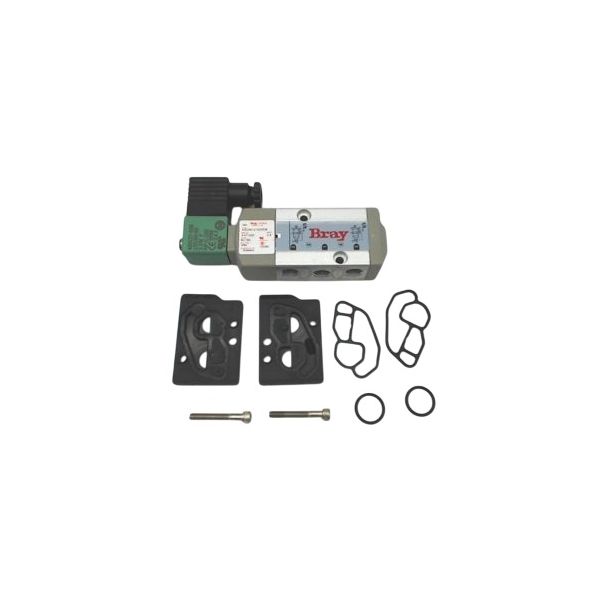

Directing fluid and pneumatic media across commercial and industrial control loops, the Bray Commercial 630250-21520536 DIN Connect Solenoid Valve provides automated inline flow regulation for connected system lines. This inline valve features a 1/4" connection size, an integrated DIN connector electrical interface, and a 120V operational rating. Acting as an electro-mechanical control point, the unit maintains its resting state until an electrical signal triggers internal actuation to manage system fluid flow.

SOLENOID ACTUATOR RESPONSE:
Electrical activation initiates movement within the solenoid actuator by producing the magnetic force required to shift the internal operator. The resulting movement is transferred to the valve mechanism and changes its operating position according to the command from the connected control circuit. When the electrical condition changes, the actuator responds by returning or shifting the mechanism as required by the valve's operating arrangement. This sequence provides the mechanical response necessary for electrically controlled valve operation.

DIN CONNECTION INTERFACE:
At the electrical connection point, the DIN connector links the solenoid assembly with the equipment's control wiring. Its interface provides the designated path for the operating signal to reach the actuator and establishes the connection between the external wiring and valve assembly. This arrangement keeps the electrical connection organized at the valve while allowing the connected control circuit to communicate with the solenoid during operation.

REPLACEMENT GUIDELINES:
Replacement may be appropriate when electrical failure, actuator malfunction, internal binding, leakage, or physical damage prevents proper operation. For the Bray Commercial 630250-21520536, replacement may be necessary when the solenoid does not respond to the operating command, the valve mechanism fails to change position, or deterioration affects the connector or valve assembly. Selection should be based on matching the existing component identification with the equipment application, fluid service, electrical control arrangement, and operating requirements.

Common Failure Symptoms:

• Complete loss of media flow through the valve body when power is applied via the DIN connection.
• Continuous media leakage or internal fluid bypass through the valve while in an unpowered state.
• Inability of downstream process equipment or pneumatic control loops to achieve or maintain target line pressure.
• Intermittent valve operation or complete failure to actuate caused by electrical terminal damage at the DIN connector.
• Visible structural cracking, port deformation, or heavy surface degradation on the valve body casing.

EQUIPMENT COMPATIBILITY:
The Bray Commercial 630250-21520536 1/4" DIN Connect Solenoid Valve 120V applies to specific fluid control and industrial processing systems produced by the manufacturer. Before purchasing, verify that the replacement part matches the exact attributes listed in the Technical Specifications table, including the brand, part number, product type, connection size, electrical connection type, and operating voltage.

Technical Specifications:
Product identification:
Brand: Bray Commercial
Part Number: 630250-21520536
Product Type: Solenoid Valve
Physical specifications:
Connection Size: 1/4"
Electrical specifications:
Electrical Connection Type: DIN Connect
Voltage: 120V
