main product photo

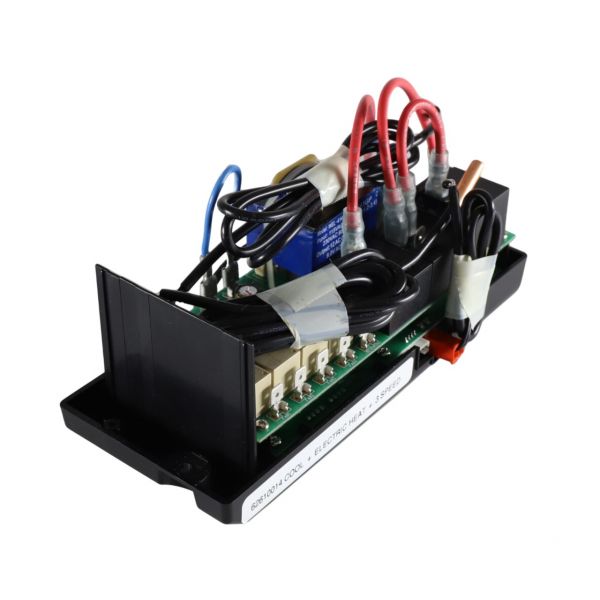

Friedrich Air Conditioning 62601013 Control Board

Rating:
5 5 12
12  Reviews Add Your Review
Special Price $178.10 Regular Price $204.81
In stock
SKU
62601013

The Friedrich Air Conditioning 62601013 Control Board is a critical component used to improve the functioning and efficiency of HVAC systems. This control board controls multiple tasks, including mode selection, fan speed, and temperature regulation. This acts as a compatible Friedrich air conditioner. Through its smooth integration with Friedrich HVAC equipment, this control board guarantees accurate and dependable operation, maximizing comfort levels and reducing energy usage. The cutting-edge technology makes it possible for components to communicate with one another effortlessly, resulting in responsive and fluid performance. The Friedrich 62601013 Control Board is an essential component for any residential or commercial HVAC system, offering users enhanced comfort, energy efficiency, and overall dependability.

Add to Wish List
Circuit Boards, Control Boards
Manufacturer:
https://www.partshnc.com/media/catalog/product/6/2/62601013.jpg
Electronic control within compatible Friedrich air conditioning equipment is managed through a circuit-board assembly that processes signals between the unit's control devices and electrical components. The Friedrich Air Conditioning 62601013 Control Board serves as the central electronic assembly within the applicable air conditioning system, coordinating control responses according to the equipment's programmed operating sequence. Its application is associated with Friedrich air conditioning equipment requiring the corresponding control-board configuration.

Control Board Operation:
The control board receives electrical information from connected control devices and processes those inputs according to its programmed logic. It establishes corresponding electrical outputs for connected operating components based on the received control conditions. This input-to-output process provides the electrical responses associated with the air conditioner's defined operating functions.

Air Conditioner Control System:
The control board coordinates individual electrical functions within the air conditioner's operating sequence. It manages the relationship between control signals and the responses of connected components as the equipment progresses through its programmed cycle. This coordination allows separate electrical operations to occur in the required sequence within the overall control system.

Replacement Guidelines:
Replacement of the Friedrich Air Conditioning 62601013 Control Board may be appropriate when the existing control board no longer performs its intended electronic control functions or has visible physical deterioration affecting operation. A replacement control board should correspond with the equipment's required electronic control configuration and applicable part-number identification.

Common Failure Symptoms:

  • The air conditioner does not respond normally to operating commands.
  • Compressor or indoor fan operation becomes inconsistent.
  • Control selections or operating modes do not function as expected.
  • Unit operation becomes intermittent.
  • Visible damage is present on the circuit board or electronic components.

Equipment Compatibility:
The Friedrich Air Conditioning 62601013 Control Board is associated with Friedrich air conditioning equipment requiring the corresponding electronic control configuration. Specific equipment models were not provided in the available information. The application should therefore correspond with the applicable equipment design, electrical architecture, and supported control functions.

Technical Specifications:
Brand: Friedrich Air Conditioning
Part Number: 62601013
Product Type: Control Board
Component Type: Electronic Control Component

Reviews 12
Write Your Own Review
You're reviewing:Friedrich Air Conditioning 62601013 Control Board
Your Rating
Product Questions (7)
Customer Questions
What maintenance is required for the Friedrich Air Conditioning 62601013 Control Board?

Regularly inspect the control board for dust, moisture, and corrosion to ensure reliable operation. Clean gently with a soft brush or compressed air while the power is off. Check connections and mounting to prevent loose contacts. Avoid liquids near the board to prevent short circuits and damage.

What are common issues with the Friedrich Air Conditioning 62601013 Control Board?

  • Failure to respond to thermostat commands.
  • Erratic or intermittent unit operation.
  • Blown fuses or tripped breakers.
  • Unresponsive display or indicator lights.

What role does the 62601013 Control Board play during equipment operation?

It processes electrical signals from connected control devices and uses them within its programmed control logic.

How do input connections support control-board operation?

Input connections allow the board to receive control information from associated devices for use within its programmed control logic.

What do output connections allow the control board to do?

Output connections allow the board to send corresponding electrical commands to connected components according to the equipment's required operating sequence.

What signs can indicate a problem with a control board?

Unexpected component operation, incorrect electrical responses, or disruption of the equipment's operating sequence can indicate a control-board issue.

When can maintenance of a control board become relevant?

Maintenance can become relevant when the board or its electrical connections require attention to support the intended exchange of control signals with connected equipment components.

Installation Steps

Step1: Turn off power to the air conditioner and confirm it’s completely disconnected.

Step2: Open the service panel and label wiring before disconnecting the old control board.

Step3: Remove the old board and install the new board, reconnecting all wires to correct terminals.

Step4: Close the panel, restore power, and test the unit to ensure proper operation.
