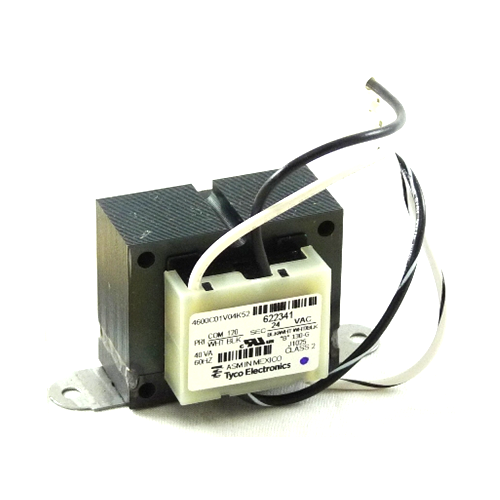

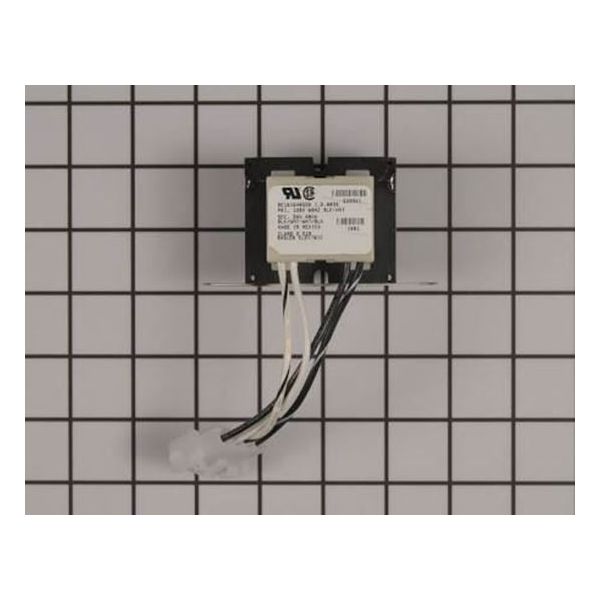

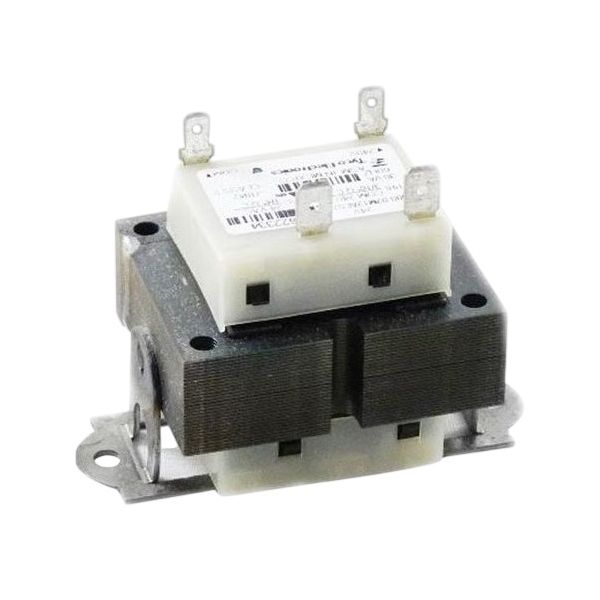

The Nordyne 622341 120V-Pri 24V-Sec 40Va Transformer is an essential component of HVAC systems, acting as a link between the major power source and the low-voltage circuits. This transformer, which was designed with efficiency in mind, effectively transforms 120 volts of primary power into a secondary output of 24 volts, providing a dependable and steady power source for a range of HVAC components. Its precise design ensures that low-voltage accessories like control boards, thermostats, and other devices are powered and function. The Nordyne 622341 transformer offers flexibility and adaptation across various systems and is compatible with a broad variety of HVAC equipment. Its 40VA capacity enables wide power distribution, which improves the linked devices' overall performance.
Manufacturer Name:Nordyne Product Number: 622341 OEM Part Number: 622341
Description:
A 120V-Pri (Primary) 24V-Sec (Secondary) 40VA (Volt-Ampere) Transformer is a crucial component in the system, especially in furnaces. It serves the essential function of converting the high-voltage input power to a lower voltage suitable for control circuits and various components within the HVAC system. The transformer converts the high-voltage (120V) input power supplied to the HVAC system to a lower voltage (24V) suitable for control and safety circuits. This lower voltage is safer for sensitive components. It consists of primary and secondary windings. The primary winding is designed to handle the higher input voltage, while the secondary winding outputs the lower voltage for control purposes. The transformer is rated at 40 Volt-Amperes (VA), indicating its power capacity. This rating ensures it can provide sufficient power to operate control circuits and accessories in the HVAC system. The Nordyne Transformer 120V 622341 is designed to be compatible with a wide range of furnaces and HVAC systems, making it a versatile choice for both residential and commercial applications. Transformers often have built-in safety features, such as overcurrent protection, which helps prevent damage in the event of a short circuit or overload in the control circuit. Its compact and typically enclosed design ensures it can fit easily within the HVAC system's control panel or mounting location. A 24V secondary voltage is a common standard in the HVAC industry, making this transformer suitable for use with various control components such as thermostats, pressure switches, and safety devices.
Key characteristics offered by the Nordyne furnace transformers are:
Converts 120V input to 24V output for control circuits.
Includes overcurrent protection for circuit safety.
Designed for minimal energy loss during voltage conversion.
Provides 40 Volt-Amperes of power capacity.
The Nordyne Transformer 120V 622341 for furnaces is an essential component in HVAC systems, providing a safe and efficient means of converting high-voltage power to a lower voltage suitable for control circuits and ensuring the reliable operation of the entire system.
Weight:1.27lbs/576.06g
Choose the best HVAC equipment parts and supplies from PartsHnC!
Is it possible to connect the 120V-Pri 24V-Sec 40VA Transformer to non-standard voltage sources, such as 110V or 115V, without causing damage or affecting performance?
It's recommended to connect the transformer to a power source within its specified voltage range (e.g., 120V). Deviating from this range can affect performance and safety.
Can I install the transformer in a different orientation than upright, such as horizontally or upside down?
Transformers are typically designed to be installed upright. Altering their orientation may affect performance and should be avoided.
Can I use this transformer for HVAC systems with high-demand control components, such as those in commercial or industrial applications, or are there more robust options available?
While this transformer is suitable for many residential applications, commercial or industrial systems with high control component demands may require transformers with higher VA ratings.
