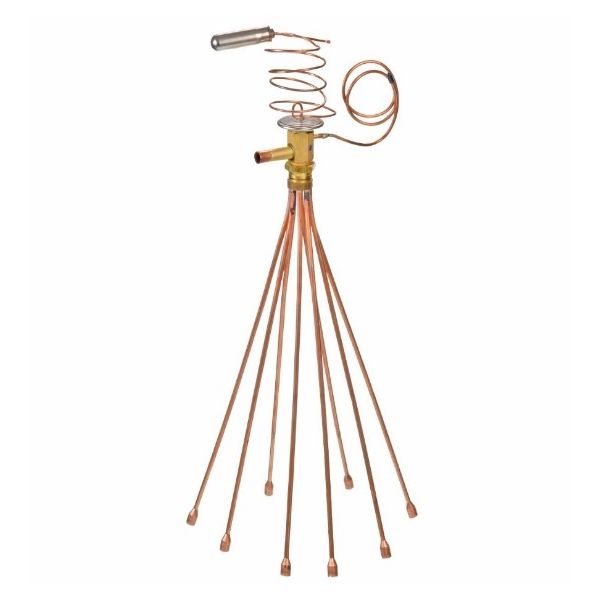

Rheem-Ruud 61-101351-06 3/8" 5-Ton Thermal Expansion Valve (TXV) R22

Rating:
5 5 1
1  Review Add Your Review
Special Price $133.92 Regular Price $154.01
Out of stock
SKU
61-101351-06
The Rheem-Ruud 61-101351-06 5-Ton Thermal Expansion Valve (TXV) operates as refrigerant flow controller for HVAC systems that utilize R22 refrigerant. The 3/8" inlet size of TXV controls refrigerant flow into evaporator coil to achieve optimal heat transfer and proper superheat levels. The designed function of this TXV prevents coil freezing and enhance cooling system efficiency. This optimizes 5-ton systems by improving energy efficiency and lowering power usage while maintaining uniform system operation. The TXV support HVAC systems and helps extend product lifetime while providing dependable system performance for air conditioning and heat pumps.
Add to Wish List
HVAC Controls & Electrical, Valves
Manufacturer:
https://www.partshnc.com/media/catalog/product/6/1/61-101351-06-1.jpg

Specifications

  • Valve Type: Thermal Expansion (TXV)
  • Refirgerant: R22
  • Capacity: 5-Ton
  • Inlet Size: 3/8"
Write Your Own Review
You're reviewing:Rheem-Ruud 61-101351-06 3/8" 5-Ton Thermal Expansion Valve (TXV) R22
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Rheem-Ruud 61-101351-06 Thermal Expansion Valve?

Periodically inspect for refrigerant leaks and ensure proper insulation. Clean any debris around the valve and check for signs of corrosion. Verify superheat settings to maintain efficient cooling. Proper care ensures accurate refrigerant flow and system performance.

What are common issues with the Rheem-Ruud 61-101351-06 Thermal Expansion Valve?

  • Incorrect refrigerant flow.
  • Valve sticking or failing to modulate.
  • Refrigerant leaks at connections.
  • Erratic pressure readings.

Installation Steps

Step 1: Turn off power and recover refrigerant using approved recovery equipment for safety.

Step 2: Remove access panel, expose evaporator coil, and carefully remove the old TXV assembly.

Step 3: Install new TXV, braze inlet and outlet lines using nitrogen purge to prevent oxidation.

Step 4: Attach sensing bulb securely to suction line, insulate it, and ensure proper positioning.

Step 5: Evacuate system, perform leak test, then recharge R22 and verify superheat settings carefully.
