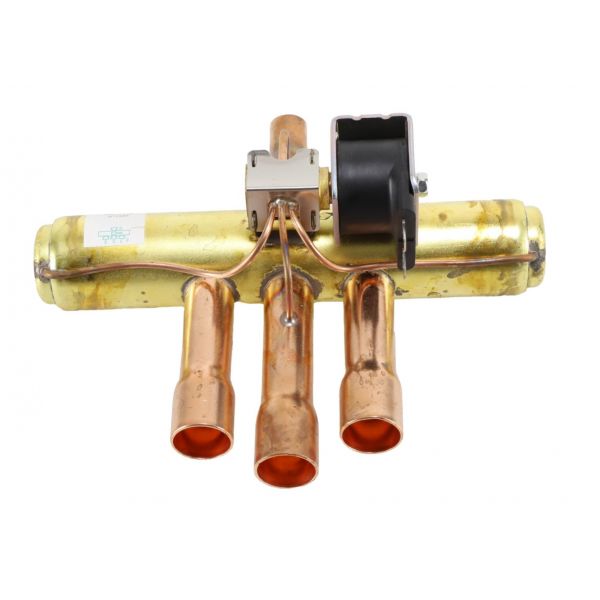

Bard HVAC 5650-039BX Reversing Valve 3/4" X 1/2" 24V

Special Price $149.64 Regular Price $172.08
In stock
SKU
5650-039BX
The Bard HVAC 5650-039BX Reversing Valve is an essential component of the HVAC systems, and is used in heat pumps. With 3/4" X 1/2" connection sizes and with operating voltage of 24V, it regulates refrigerant flow and allows the heat pump to change between heating and cooling modes. It circles high temperature refrigerant to indoor coil in heating mode while in cooling mode it reverse the direction to provide cool air. This valve provides effective functionality, durability and convenience of installation in HVAC systems to maintain temperature control of the heating and cooling systems.
Manufacturer:
https://www.partshnc.com/media/catalog/product/5/6/5650-039bx.jpg

Specifications

  • Type: Reversing Valve
  • Connection Size: 3/4" X 1/2"
  • Voltage: 24V

PRODUCT OVERVIEW:
As part of a heat pump HVAC system, the Bard HVAC 5650-039BX Reversing Valve 3/4" X 1/2" 24V regulates the directional flow of refrigerant through the system's sealed circuit. This reversing valve assembly serves as the directional switching control within heat pump equipment, changing how thermal energy is transferred based on operational demand. By directing high-pressure discharge gas from the compressor to either the indoor or outdoor coil, the Bard 5650-039BX enables dual-mode operation, allowing a single heat pump system to provide both heating and cooling performance.

INTERNAL VALVE POSITIONING:
Valve positioning begins when the associated solenoid receives the required electrical control signal. The resulting magnetic force moves the internal valve mechanism and changes the connections between the refrigerant passages. Each valve position establishes a different flow arrangement, directing refrigerant through the circuit required for the selected operating condition.

REFRIGERANT FLOW CONTROL:
By altering the directional path of high-pressure discharge gas, the valve controls macro-level thermal energy distribution across the heat pump equipment. Shifting the internal flow paths alters the system cycle, allowing the indoor and outdoor heat exchanger coils to swap operational roles. In cooling mode, high-pressure gas routes to the outdoor heat exchanger to condense, while in heating mode, the refrigerant path reverses to route heat directly to the indoor coil for space conditioning.

REPLACEMENT GUIDELINES:
Replacement of the Bard 5650-039BX assembly is appropriate when mechanical binding, electrical solenoid failure, or internal blow-by prevents the component from maintaining proper pressure differentials. Internal slide wear or debris buildup can cause the mechanism to bind, preventing full port alignment or permitting high-pressure discharge gas to bypass directly into the low-pressure suction line. Replacing the valve restores complete port sealing, proper electrical actuation, and correct refrigerant flow separation across heating and cooling cycles.

Common Failure Symptoms:

  • Equipment stuck in heating or cooling mode, failing to switch modes upon demand.
  • Electrical coil failure resulting in lack of magnetic pull or loss of continuity.
  • Thermal bypass resulting in hot discharge gas leaking into the suction line.
  • Reduced system heating or cooling capacity due to partial slide positioning.
  • Equalized high and low system pressures indicating internal port blow-by.

EQUIPMENT COMPATIBILITY:
To ensure proper equipment fitment and system function, verify that the Bard 5650-039BX part number matches the original manufacturer specification for your specific heat pump equipment. Compatibility must be confirmed by matching the exact brand, part number, product type, operating voltage, line connection sizes, and application against your system's documentation prior to purchase.

Technical Specifications:
Product identification:
Brand: Bard HVAC
Part Number: 5650-039BX
Product Type: Reversing Valve
Physical specifications:
Line Connection Sizes: 3/4" x 1/2"
Electrical specifications:
Operating Voltage: 24V

Write Your Own Review
You're reviewing:Bard HVAC 5650-039BX Reversing Valve 3/4" X 1/2" 24V
Your Rating
Customer Questions
What maintenance is required for the Bard HVAC 5650-039BX Reversing Valve?

Regularly inspect the valve for refrigerant leaks, corrosion, or debris buildup around connections. Ensure electrical connections are secure and the solenoid operates properly. Keeping the system clean and properly charged supports maintain efficiency. Always disconnect power before servicing for safety.

What are common issues with the Bard HVAC 5650-039BX Reversing Valve?

  • Valve sticking or failing to switch between heating and cooling modes.
  • Solenoid coil burnout or electrical failure.
  • Refrigerant leakage at connections or internal seals.
  • Incomplete shifting causing reduced system performance or inconsistent operation.

What is the Bard HVAC 5650-039BX Reversing Valve used for?

The Bard HVAC 5650-039BX Reversing Valve redirects refrigerant within a heat-pump system to support operation in heating or cooling mode.

What role does the Bard HVAC 5650-039BX play inside a heat pump?

The Bard HVAC 5650-039BX controls refrigerant routing between the compressor and heat-transfer sections when the equipment changes operating mode.

How does the Bard HVAC 5650-039BX change refrigerant direction?

The reversing valve changes its internal passage arrangement to establish the refrigerant pathway required for the selected operating condition.

How does the reversing valve affect the indoor and outdoor coils?

The reversing valve redirects refrigerant through the heat-pump circuit so the indoor and outdoor coils can exchange their roles within the refrigeration cycle.

What component works with the Bard HVAC 5650-039BX to change valve position?

The Bard HVAC 5650-039BX works with its associated solenoid coil, which provides the electromagnetic actuation needed to shift the reversing valve mechanism.

Installation Steps

Step 1: Disconnect power and refrigerant system, lockout/tagout and recover refrigerant safely.

Step 2: Remove access panels and isolate refrigerant lines.

Step 3: Cut out old valve and braze in new reversing valve with nitrogen purge.

Step 4: Connect solenoid coil wiring per schematic securely.

Step 5: Pressure test system for leaks and check brazed joints.

Step 6: Evacuate system to proper vacuum level before charging.

Step 7: Restore power and test heating/cooling mode switching for correct operation.
