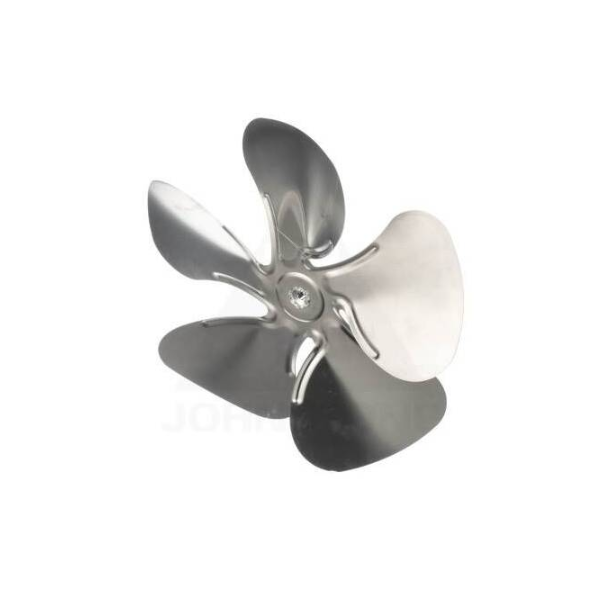

Heatcraft Refrigeration 5110E 12" 5-Blade Fan CCW 24° Pitch 0.312" Bore

Be the first to review this product
Special Price $59.61 Regular Price $68.55
In stock
SKU
5110E
The Heatcraft Refrigeration 5110E Fan Blade is a durable and efficient component used in HVAC systems, but especially refrigeration units. It has a 12" diameter, five blades, a 24° pitch and a counter clockwise rotation for optimal airflow for cooling performance. Secure attachment to motors is possible with the 0.3125" bore size. The improved heat exchange efficiency provided by this fan blade results in a more consistent temperature in commercial refrigeration equipment, including walk in coolers, freezers and display cases. Constructed robustly, it will last and its precise design consumes low energy and produces low noise. It is ideal for demanding environments where operation can be reliable and contribute to reduced operational costs.
Add to Wish List
Motors & Capacitors, Motors & Components
Manufacturer:
https://www.partshnc.com/media/catalog/product/5/1/5110e_heatcraft-refrigeration_partshnc.jpg

Specifications

  • Type: Fan Blade
  • Diameter: 12"
  • Number of Blades: 5
  • Pitch: 24°
  • Rotation Direction: Counter-Clockwise
  • Bore Size: 0.312"
Manufacturer Name: Heatcraft Refrigeration
Product Number: 5110E
OEM Part Number: 5110E
Product Description: 12" 24Deg Ccw .312Bore 5 Blade
Weight:0.4lbs/181.44g

Choose the best HVAC equipment parts and supplies from PartsHnC!

  • Same Day Shipping

  • Best Quality And Best Price

  • Wide Range of Inventory

  • Best Customer Service

Have More Questions or Need Help to Place The Order?
Reach us at (866)773-0907 or [email protected]

Reviews
Write Your Own Review
You're reviewing:Heatcraft Refrigeration 5110E 12" 5-Blade Fan CCW 24° Pitch 0.312" Bore
Your Rating
Product Questions (2)
Customer Questions
What maintenance is required for the Heatcraft Refrigeration 5110E Fan Blade?

Regularly inspect the fan blades for dirt buildup and clean them to maintain airflow efficiency. Check for loose mounting or imbalance during operation. Lubricate bearings if applicable and ensure proper alignment. Always disconnect power before servicing for safety.

What are common issues with the Heatcraft Refrigeration 5110E Fan Blade?

  • Excessive vibration due to blade imbalance or misalignment.
  • Reduced airflow from dirt buildup or blade damage.
  • Unusual noise from worn bearings or loose components.
  • Fan not spinning properly due to motor or mounting issues.

Installation Steps

Step 1: Turn off all electrical power and ensure the refrigeration system is fully locked out.

Step 2: Remove old fan guard and inspect motor shaft, keyway, and hub for wear or debris.

Step 3: Align new fan blade hub with shaft and ensure correct rotation orientation.

Step 4: Slide onto shaft, position to proper depth, and tighten set screw securely.

Step 5: check blade clearance from shroud and check for wobble or imbalance.

Step 6: Restore power and test operation, confirming smooth airflow and stable under load.
