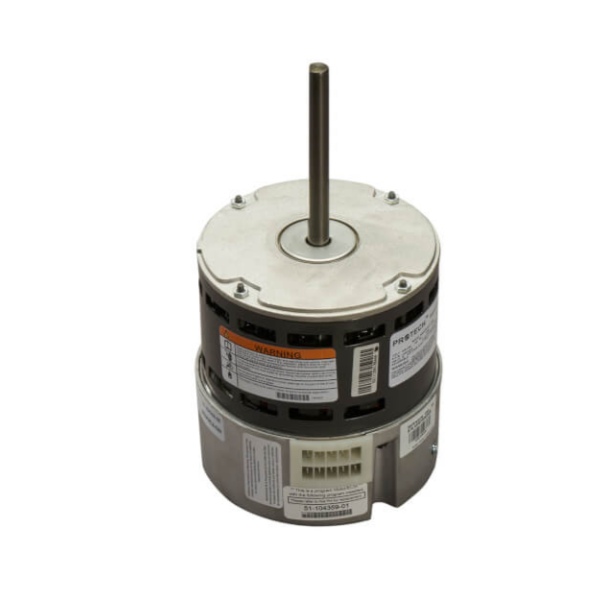

Rheem-Ruud 51-106545-01 1/2 HP Variable Speed Motor 208-230V 1-Phase 48Y Frame

Rating:
5 5 9
9  Reviews Add Your Review
Special Price $358.72 Regular Price $398.18
In stock
SKU
51-106545-01
The Rheem-Ruud 51-106545-01 Variable Speed Motor is one of the better motors to be used in HVAC systems because of its efficiency. It revolves at 1075 RPM and offers 208/230V voltages to come up with one-half horsepower in its functionality. It is highly effective and suitable for heating and cooling applications. This motor operates through the variability of the speed depending on the heating or cooling required thus improving energy and system efficiency. Some of the places where they are mostly used include air handlers, furnaces, and air conditioners. The variable speed feature also enables the ability to set the temperature control, enhance the indoor air quality, and reduce the noise level.
Add to Wish List
HVAC Furnace Parts_Home, Motors & Capacitors
Manufacturer:
https://www.partshnc.com/media/catalog/product/5/1/51-106545-01_rheem-ruud_partshnc.jpg

Specifications

  • Type: Variable Speed Motor
  • RPM (Revolutions Per Minute): 1075 RPM
  • Voltage: 208/230V
  • Horsepower: 1/2 HP
  • Weight: 13.34 Lbs

Variable-speed motors provide adjustable mechanical movement for connected components in HVAC equipment. The Rheem-Ruud 51-106545-01 is a variable-speed motor designed to provide mechanical drive for its associated assembly. Its variable-speed operation allows the connected component to receive mechanical movement at different operating rates.

Variable-Speed Motor Control:
The variable-speed design allows the motor's operating rate to change in response to the connected application's requirements. Rather than operating at only one fixed rate, the motor can adjust its rotational output as operating conditions change.

Motor Output and Load Response:
The motor's shaft delivers mechanical movement to the connected load, with the variable-speed design allowing that output to change as required during operation. This provides the connected component with an adjustable mechanical input rather than a constant fixed-speed drive.

Replacement Guidelines:
Replacement may be appropriate when the motor develops inconsistent rotation, fails to provide the required mechanical movement, or shows signs of physical damage that prevent normal operation. For the Rheem-Ruud 51-106545-01, replacement should be considered when the motor can no longer provide the required variable-speed operation for the connected component.

Common Failure Symptoms:

  • Motor fails to start.
  • Motor remains at one rotational rate when different operation is required.
  • Irregular changes in rotational speed occur during operation.
  • Unusual sounds develop during operation.
  • Motor stops unexpectedly during operation.

Equipment Compatibility:
The Rheem-Ruud 51-106545-01 Variable Speed Motor should be selected for applications requiring a 1/2 HP, 208-230V, single-phase variable-speed motor with a 48Y frame configuration. Before purchasing, confirm the existing motor's part number, motor type, voltage, phase, horsepower, frame, and other applicable equipment requirements.

Technical Specifications:
Part Identification:
Brand: Rheem-Ruud
Part Number: 51-106545-01
Product Type: Variable Speed Motor

Electrical:
Voltage: 208-230V
Phase: Single-Phase
Horsepower: 1/2 HP

Mechanical:
Frame: 48Y

Reviews 9
Write Your Own Review
You're reviewing:Rheem-Ruud 51-106545-01 1/2 HP Variable Speed Motor 208-230V 1-Phase 48Y Frame
Your Rating
Related Posts
  1. How to Reset Daikin Air Conditioner
Product Questions (14)
Customer Questions
What is a double shaft blower motor in HVAC systems?

A double shaft blower motor is a crucial component in HVAC systems, responsible for driving the fan that circulates air. It has two shafts for added stability and is designed to provide efficient airflow.

How often should I service or replace my double shaft blower motor?

Regular maintenance is essential. It's advised to have your blower motor inspected and serviced annually to ensure optimal performance. Replacement may be necessary if it's old, inefficient, or experiencing frequent breakdowns.

What maintenance is required for the Rheem-Ruud 51-106545-01 Motor?

Regularly inspect the motor for dust buildup and clean vents to maintain proper airflow. Check electrical connections and mounting for stability. Proper upkeep prevents overheating and performance issues. Always disconnect power before servicing to ensure safety and avoid electrical hazards.

What are common issues with the Rheem-Ruud 51-106545-01 Motor?

  • Motor failing to start or running intermittently.
  • Overheating during operation.
  • Unusual noises like humming or grinding.
  • Reduced or inconsistent motor speed.
  • Sudden shutdown caused by internal overload protection.

How does a variable-speed motor adjust its rotational output?

The Rheem-Ruud 51-106545-01 allows rotational output to change according to the connected control requirements, supporting different operating conditions.

How does the 51-106545-01 motor support air movement in HVAC equipment?

Its rotating shaft drives the connected fan or blower assembly, allowing the air-moving component to displace air through its designated pathway.

What is the relationship between the motor and the connected fan or blower?

The motor converts electrical input into mechanical shaft movement, which drives the attached fan or blower component.

What problems may indicate that a variable-speed motor needs replacement?

Inconsistent speed, delayed response, excessive noise, increased vibration, intermittent operation, irregular shaft rotation, or unstable air-moving performance may indicate that replacement should be considered.

How can the Rheem-Ruud 51-106545-01 motor be verified before purchase?

Verify the Rheem-Ruud 51-106545-01 against the equipment model, motor requirements, mounting arrangement, electrical configuration, and manufacturer's documentation.

What type of motor is the Rheem-Ruud 51-106545-01?

The Rheem-Ruud 51-106545-01 is a variable-speed motor designed to provide adjustable mechanical drive for a connected assembly.

What does the 48Y frame designation indicate?

The 48Y designation identifies the motor's specified frame configuration and provides a physical reference for the motor assembly.

How does the 51-106545-01 respond to changing operating requirements?

Its variable-speed design allows the motor's rotational output to change according to the requirements of the connected application.

What electrical configuration is associated with the 51-106545-01?

The motor is specified for 208–230V, single-phase operation with a 1/2 HP rating.

What should be checked before selecting the 51-106545-01?

Compare the existing 51-106545-01 part number, motor configuration, frame, and applicable equipment requirements before ordering.

Installation Steps

Step1: Ensure power is turned off and disconnect the unit from electricity.

Step2: Remove the access panel to reach the existing motor.

Step3: Disconnect all wiring and label connections for correct reinstallation.

Step4: Loosen mounting bolts and carefully remove the old motor.

Step5: Position the new motor and secure it with mounting bolts.

Step6: Reconnect wiring according to labels and manufacturer instructions.

Step7: Replace the access panel and restore power.

Step8: Test the motor for proper operation and listen for unusual noises.
