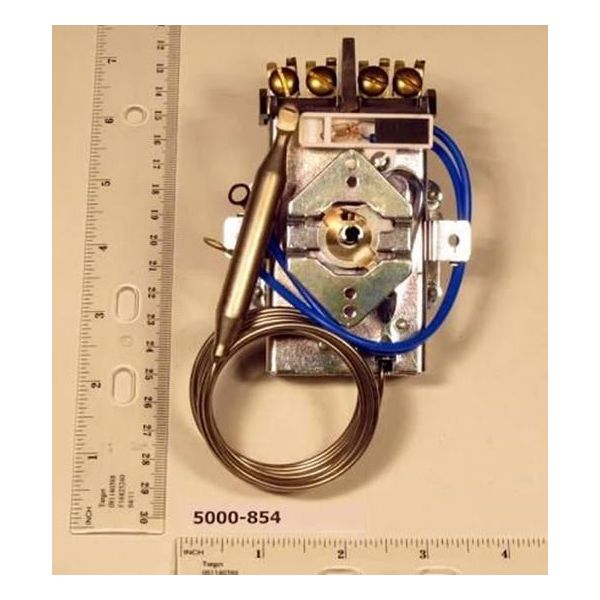

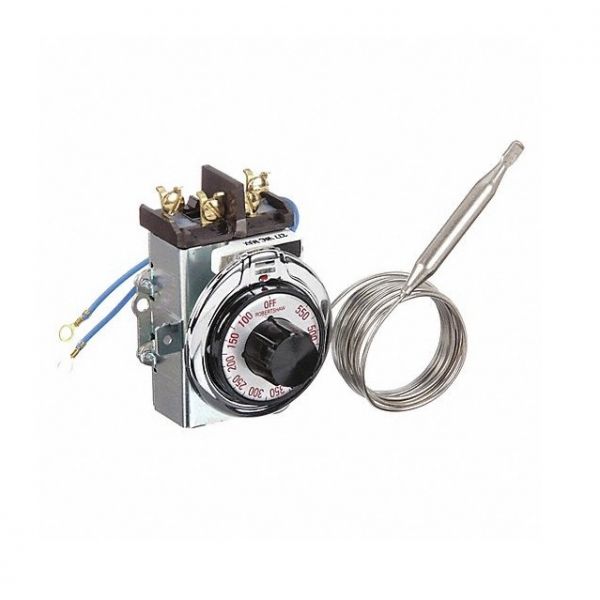

Robertshaw 5000-854 Electric Thermostat 100°-550°F 72" Capillary

Product Overview:
Regulates commercial cooking equipment temperature through a temperature-responsive electrical switching mechanism. The Robertshaw 5000-854 Commercial Electric Thermostat is a genuine OEM control designed for high-temperature applications. It features an adjustable temperature range of 100°F–550°F and a 72-inch capillary tube for temperature sensing.

Thermal Detection Mechanism:
Uses a capillary-based sensing system to detect temperature changes within the controlled equipment. The sensing assembly responds to thermal variations and communicates them to the thermostat mechanism, supporting temperature regulation according to the selected setting.

Electrical Switching Operation:
Controls the connected electrical circuit in response to the sensed temperature. The switching mechanism operates according to the selected temperature setting, helping regulate the heating equipment during normal operation.

Replacement Guidelines:
Replace the Robertshaw 5000-854 Commercial Electric thermostat if it fails to maintain the selected temperature, switches inconsistently, or shows visible damage. Inspect the capillary tube, sensing assembly, electrical terminals, and mounting arrangement before installation. Confirm the temperature range and electrical specifications against the equipment manufacturer's parts documentation.

Common Failure Symptoms:

• Cooking equipment fails to reach the selected temperature.
• Temperature fluctuates beyond the expected operating range.
• The heating circuit does not switch correctly.
• Temperature adjustment becomes unreliable.
• Capillary tube shows visible damage or leakage.
• Electrical terminals show signs of deterioration.

Equipment Compatibility:
The Robertshaw 5000-854 is an OEM thermostat intended for designated commercial electric cooking equipment requiring high-temperature control. Its 100°F–550°F adjustment range and 72-inch capillary configuration must match the original equipment requirements. Confirm the appliance model, sensing arrangement, and electrical specifications before ordering.

Technical Specifications:
Brand: Robertshaw
Part Number: 5000-854
Product Name: Commercial Electric Thermostat
Temperature Range: 100°F–550°F
Capillary Length: 72 inches
